About

MapViewer outputs its error messages to :

• the oc4j console
• and the log file

Usually the error message on the oc4j console provides enough of a hint to resolve the issue.

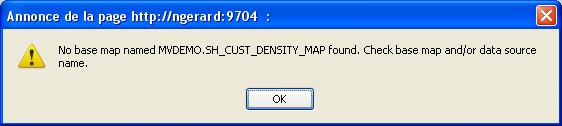

For example, it states that a map data source was not found, or that a particular theme could not be loaded.

Sometimes however further details may be necessary, particularly when the map output is incomplete (basemap was rendered but a dynamic theme is missing), or different (roads displayed as thin black lines instead of 3 pixel wide blue lines). In such cases it may help to set MapViewer’s logging level to Debug, or Finest, in mapViewerConfig.xml.

Log

The default location of the logfile is

$OC4J_HOME/applications/mapviewer/web/WEB-INF/log.

Therefore with a standard installation of OBIEE :

OracleBI_Home\oc4j_bi\j2ee\home\applications\mapviewer\web\WEB-INF\log

<!-- ****************************************************************** -->
  <!-- ************************ Logging Settings ************************ -->
  <!-- ****************************************************************** -->

  <!-- Uncomment the following to modify logging. Possible values are:
       log_level = "fatal"|"error"|"warn"|"info"|"debug"|"finest"
                 default: info) ;
       log_thread_name = "true" | "false" ;
       log_time = "true" | "false" ;
       one or more log_output elements.
  -->

    <logging log_level="finest" log_thread_name="false"
             log_time="true">
       <log_output name="System.err" />
       <log_output name="../log/mapviewer.log" />
    </logging>
