React - Storybook (Component workbench)

About

Storybook is a component workbench where you write story.

A story is a single state of your component. Technically, it is a function that returns something that can be rendered to screen.

UI component dev & test

Model

There are two basic levels of organization in Storybook:

Each story is a different instance of a component. You can have as many stories per component

Component

the default export defines metadata about your component:

export default {
    component: Task,
    title: 'Task',
    id: 'Foo/Bar', // or 'foo-bar' if you prefer
    // Our exports that end in "Data" are not stories.
    excludeStories: /.*Data$/,
    decorators: [ ... ],
    parameters: { ... }
};

where:

id chosen is:'

Ref doc: Default export doc

Story

export const Baz = () => <MyComponent />;
Baz.story = {
   name: 'Moo',
   parameters: {
       notes: 'popover tooltip'
   },
};

where:

id of a story is:

Url Path of a story is:

?path=/story/groupId--storyId
# example
?path=/story/foo-bar--baz

Hierarchy

Stories can be organized in a nested structure using / as a separator in the group title. Doc

export default {
  title: 'Design System/Atoms/Checkbox',
};

Configuration ShowRoots

import { addParameters } from '@storybook/react';

addParameters({
  options: {
    /**
     * display the top-level grouping as a "root" in the sidebar
     * @type {Boolean}
     */
    showRoots: false,
  },
});

Installation/Configuration/Getting Started

Install

npx -p @storybook/cli sb init



Old way was ….

yarn add @storybook/react --dev
#or
npm install @storybook/react --save-dev

Start

"scripts": {
    "storybook": "start-storybook -p 9009 -s public"
  }

yarn storybook

Configure

Create the configuration file Doc

Where to find stories

Minimal: stories is a list of glob patterns that tells where the stories are located, relative to the configuration file.

module.exports = {
  stories: ['../src/components/**/*.stories.js'],
};

Addon Preset

module.exports = {
  stories: ['../src/components/**/*.stories.js'],
    addons: ['@storybook/preset-create-react-app','@storybook/addon-actions', '@storybook/addon-links'],
};

Story

import React from 'react';
import { storiesOf } from '@storybook/react';
import { Button } from '@storybook/react/demo';

// There is two stories (.add)
storiesOf('Button', module)
  .add('with text', () => (
    <Button>Hello Button</Button>
  ))
  .add('with emoji', () => (
    <Button><span role="img" aria-label="so cool">😀 😎 👍 💯</span></Button>
  ));

You may also locate them closer to components.

•
└── src
    └── components
        └── button
            ├── button.js
            └── button.stories.js

Run the Storybook

npm run storybook

Add-on

https://storybook.js.org/addons/introduction/#2-native-addons

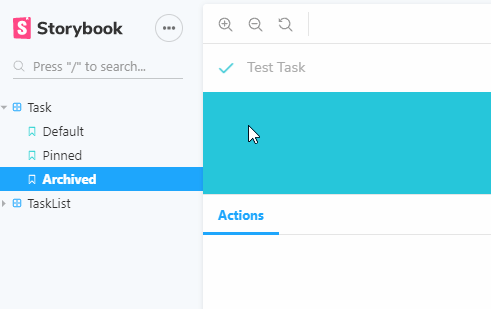

Action

Action is storybook native addons that permits to capture interaction via mocked callbacks called Actions

The callback appears in the actions panel of the Storybook UI when clicked.

So for instance when we build a pin button, we’ll seen it in the action panel.

Storybook Actions

Centered

yarn add @storybook/addon-centered --dev

Storyshot

With a snaphost test for each of our Task stories, if we change the implementation of Task, we’ll be prompted to verify the changes.

yarn add -D @storybook/addon-storyshots react-test-renderer

import initStoryshots from '@storybook/addon-storyshots';
initStoryshots();

yarn test
# ie react-scripts test

PASS  src/storybook.test.js (7.372s)
  Storyshots
    Task
      √ Default (14ms)
      √ Pinned (1ms)
      √ Archived (2ms)

 › 3 snapshots written.
Snapshot Summary
 › 3 snapshots written from 1 test suite.

Test Suites: 1 passed, 1 total
Tests:       3 passed, 3 total
Snapshots:   3 written, 3 total
Time:        8.015s
Ran all test suites related to changed files.


› 3 snapshots failed from 1 test suite. Inspect your code changes or press `u` to update them.

Decorators

Decorators are a way to provide arbitrary wrappers to stories.

They can be used to:

Searching

Doc search results will show up based on:

Example of story with notes.

export const callout = () => <Callout>Some children</Callout>;
callout.story = {
parameters: { notes: 'popover tooltip' },
};

Documentation / Reference
