SSH - Left Tunnel (Left Port Forwarding) - Local to server

About

When you need to make a SSH connection to connect to a server, you can create a left tunnel (a left port forwarding) to reach the server as of it was direct reachable.

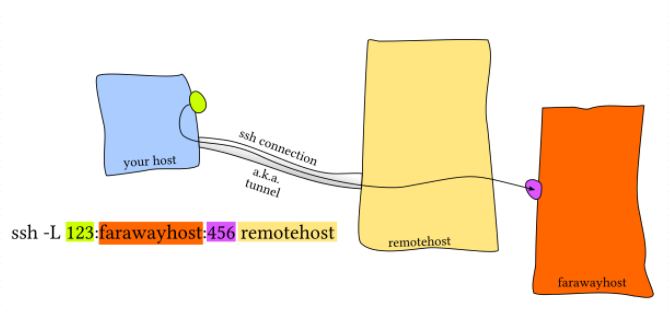

Illustration: Image Credit: How does reverse SSH tunneling work? from Erik

_

Usage

  • When you need to make a connection to a private database (in a private network), you can a SSH tunnel and reach it as of the database was local.

Steps

Create the tunnel

You can create the tunnel with any client such as:

Ssh

Create the tunnel: From the client host:

ssh -N -T -l loginName -L8881:server:8888 sshServerHost

where

  • localhost is the host seen from the ssh client
  • The local port is 8881 (The port of your machine)
  • server is the server to reach
  • The server port is 8888
  • The loginName is loginName
  • N means no remote command
  • T disables pseudo-tty allocation (No terminal)

Jsch

Jsch is a java library.

JSch jsch = new JSch();
Session session = jsch.getSession(user, host, port);
localPort = 4321;
remoteHost = "localhost";
remotePort = 3306;
session.setPassword(password);
session.setConfig("StrictHostKeyChecking", "no");
System.out.println("Establishing Connection...");
session.connect();
int assigned_port = session.setPortForwardingL(localPort, remoteHost, remotePort);
