Table of Contents

About

ODBC

For now, it's a type 2.

Prerequisites

Console

hdbodbc_cons

Usage: odbc_cons [options] command
SQLDBC  1.00.48 Build 0372847-1510
Options:
  -h           This help screen.
  -v           Verbose operation.
  -p <pid>     Execute command only for the specified process id.
  -f           Force tool execution, even if a lock file of another
               instance is found.
  -u <user>    Perform the operation for another user.
  -H <host>    Assume virtual host name <host>.
Options must be separate, collating them is not supported.

Add a connection

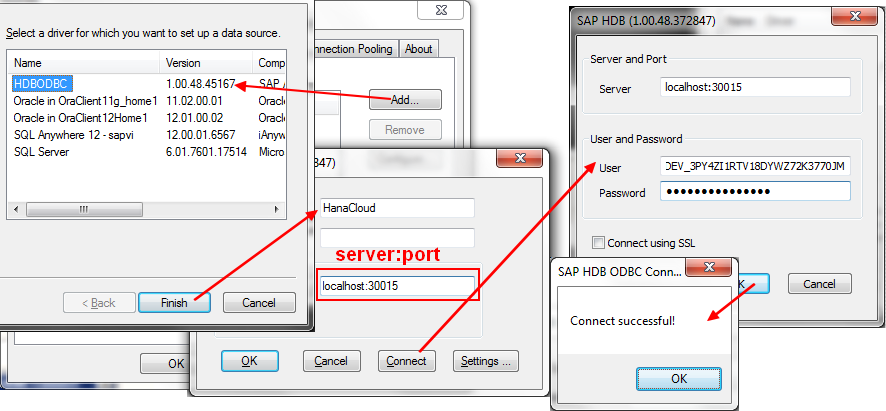

Windows

connection string: server:port

Odbc Sap Hana

Linux

For example, if the SAP HANA server is running on the host MyServer, as instance 01, on port 30115, and the SAP HANA client is installed at /hana/shared/HDB/hdbclient, the odbc.ini file would be:

[hanaservice]
Driver=/hana/shared/HDB/hdbclient/libodbcHDB.so
ServerNode=MyServer:30115
CHAR_AS_UTF8=1
DriverUnicodeType=1

where:

  • DriverUnicodeType=1 (UTF-16)
  • DriverUnicodeType=2 (UTF-8) (Default)
[hanaodbcdatasourcename]
Driver=/hana/shared/<SID>/hdbclient/libodbcHDB.so
ServerNode=<fully.qualified.domain.name>:3XX15
CHAR_AS_UTF8=1
DriverUnicodeType=1

where:

  • XX in 3XX15 is the instance number

Support

Trace

See 1993254 - Collecting ODBC Trace

When attempting to make a connection, you may get this error.

[08S01][unixODBC][SAP AG][LIBODBCHDB SO][HDBODBC] Communication link failure;-10709 Connection failed (RTE:[-1] Kerberos error. Major: " [851968]", minor: " [2529639107/-1765328189]")

You just forgive to give the username and password during the connection.

Documentation/Reference
