How to navigate in the mbean tree of weblogic.
After a connection to the Weblogic Server, you are in the serverConfig directory.
wls:/offline> connect('biadmin', 'welcome1', 't3://exalytics-01:7001')
Connecting to t3://exalytics-01:7001 with userid biadmin ...
Successfully connected to Admin Server 'AdminServer' that belongs to domain 'bifoundation_domain'.
Warning: An insecure protocol was used to connect to the
server. To ensure on-the-wire security, the SSL port or
Admin port should be used instead.
wls:/bifoundation_domain/serverConfig>
You can navigate to another tree with the following function
wls:/bifoundation_domain/serverConfig> serverRuntime()
Location changed to serverRuntime tree. This is a read-only tree with ServerRuntimeMBean as the root
.
For more help, use help(serverRuntime)
wls:/bifoundation_domain/serverRuntime>
From a root directory, you can navigate in the tree with the following commands:
Lists all the child beans and/or attributes for the current configuration or runtime bean.
In the customDomain, the ls command return only the child bean. The option below doesn't work !
You can optionally control the output by specifying an argument. If no argument is specified, the command lists all child beans and attributes in the domain.
wls:/bifoundation_domain/serverConfig> cd('Servers')
wls:/bifoundation_domain/serverConfig/Servers> ls()
dr-- AdminServer
dr-- bi_server1
where the attributes:
The ls command property information is based on MBeanInfo; it does not reflect user permissions.
To get a list of all the attribute names and values for the current directory (ie the current configuration or runtime bean).
wls:/bifoundation_domain/serverConfig>ls(pwd(), returnMap='true', returnType='a')
or
wls:/bifoundation_domain/serverConfig>ls('a')
-r-- AdminServerName AdminServer
-r-- AdministrationMBeanAuditingEnabled false
-r-- AdministrationPort 9002
-r-- AdministrationPortEnabled false
-r-- AdministrationProtocol t3s
-r-- ArchiveConfigurationCount 0
-r-- ClusterConstraintsEnabled false
-r-- ConfigBackupEnabled false
-r-- ConfigurationAuditType none
-r-- ConfigurationVersion 10.3.6.0
-r-- ConsoleContextPath console
-r-- ConsoleEnabled true
-r-- ConsoleExtensionDirectory console-ext
-r-- DomainVersion 10.3.6.0
-r-- ExalogicOptimizationsEnabled false
-r-- GuardianEnabled false
-r-- InternalAppsDeployOnDemandEnabled false
-r-- LastModificationTime 0
-r-- Name bifoundation_domain
-r-- Notes null
-r-- Parent null
-r-- ProductionModeEnabled true
-r-- RootDirectory /u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain
-r-- Type Domain
wls:/bifoundation_domain/serverConfig> ls(pwd(), returnMap='true', returnType='c')
or
wls:/bifoundation_domain/serverConfig> ls('c')
dr-- AdminConsole
dr-- AppDeployments
dr-- BridgeDestinations
dr-- Clusters
dr-- CoherenceClusterSystemResources
dr-- CoherenceServers
dr-- CustomResources
dr-- DeploymentConfiguration
dr-- Deployments
dr-- EmbeddedLDAP
dr-- ErrorHandlings
dr-- FileStores
dr-- ForeignJNDIProviders
dr-- InternalAppDeployments
dr-- InternalLibraries
dr-- JDBCDataSourceFactories
dr-- JDBCStores
dr-- JDBCSystemResources
dr-- JMSBridgeDestinations
dr-- JMSInteropModules
dr-- JMSServers
dr-- JMSSystemResources
dr-- JMX
dr-- JPA
dr-- JTA
dr-- JoltConnectionPools
dr-- Libraries
dr-- Log
dr-- LogFilters
dr-- Machines
dr-- MailSessions
dr-- MessagingBridges
dr-- MigratableTargets
dr-- RemoteSAFContexts
dr-- RestfulManagementServices
dr-- SAFAgents
Get the operations that can be invoked on the current runtime MBean. Operations are not shown for configuration MBeans.
wls:/bifoundation_domain/serverConfig> ls('o')
-r-x freezeCurrentValue Void : String(attributeName)
-r-x isSet Boolean : String(propertyName)
-r-x lookupAppDeployment WebLogicMBean : String(java.lang.String)
-r-x lookupApplication WebLogicMBean : String(name)
-r-x lookupBridgeDestination WebLogicMBean : String(name)
-r-x lookupCluster WebLogicMBean : String(name)
-r-x lookupCoherenceClusterSystemResource WebLogicMBean : String(name)
-r-x lookupCoherenceServer WebLogicMBean : String(name)
-r-x lookupCustomResource WebLogicMBean : String(name)
-r-x lookupDomainLogFilter WebLogicMBean : String(name)
-r-x lookupErrorHandling WebLogicMBean : String(name)
-r-x lookupFileStore WebLogicMBean : String(name)
-r-x lookupForeignJNDIProvider WebLogicMBean : String(name)
-r-x lookupInternalAppDeployment WebLogicMBean : String(name)
-r-x lookupInternalLibrary WebLogicMBean : String(name)
-r-x lookupJDBCDataSourceFactory WebLogicMBean : String(name)
-r-x lookupJDBCStore WebLogicMBean : String(name)
-r-x lookupJDBCSystemResource WebLogicMBean : String(name)
-r-x lookupJMSBridgeDestination WebLogicMBean : String(name)
-r-x lookupJMSDestination WebLogicMBean : String(name)
-r-x lookupJMSInteropModule WebLogicMBean : String(name)
-r-x lookupJMSServer WebLogicMBean : String(name)
-r-x lookupJMSSystemResource WebLogicMBean : String(name)
-r-x lookupJoltConnectionPool WebLogicMBean : String(name)
-r-x lookupLibrary WebLogicMBean : String(java.lang.String)
-r-x lookupLogFilter WebLogicMBean : String(name)
-r-x lookupMachine WebLogicMBean : String(name)
-r-x lookupMailSession WebLogicMBean : String(name)
-r-x lookupMessagingBridge WebLogicMBean : String(name)
-r-x lookupMigratableTarget WebLogicMBean : String(name)
-r-x lookupRemoteSAFContext WebLogicMBean : String(name)
-r-x lookupSAFAgent WebLogicMBean : String(name)
-r-x lookupSNMPAgentDeployment WebLogicMBean : String(name)
-r-x lookupServer WebLogicMBean : String(name)
-r-x lookupShutdownClass WebLogicMBean : String(name)
-r-x lookupSingletonService WebLogicMBean : String(name)
-r-x lookupStartupClass WebLogicMBean : String(name)
-r-x lookupSystemResource WebLogicMBean : String(java.lang.String)
-r-x lookupTarget WebLogicMBean : String(java.lang.String)
-r-x lookupVirtualHost WebLogicMBean : String(name)
-r-x lookupWLDFSystemResource WebLogicMBean : String(name)
-r-x lookupWLECConnectionPool WebLogicMBean : String(name)
-r-x lookupWSReliableDeliveryPolicy WebLogicMBean : String(name)
-r-x lookupWTCServer WebLogicMBean : String(name)
-r-x lookupWebserviceSecurity WebLogicMBean : String(name)
-r-x lookupXMLEntityCache WebLogicMBean : String(name)
-r-x lookupXMLRegistry WebLogicMBean : String(name)
-r-x unSet Void : String(propertyName)
To navigate back to a parent MBean, enter cd(’..’)

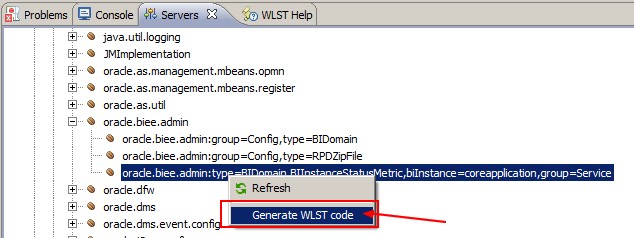

By using the Weblogic - MBean Browser/Explorer, you can generate it:
It will for instance generate the following code:
cd('custom:/oracle.biee.adminoracle.biee.admin:type=BIDomain.BIInstanceStatusMetric,biInstance=coreapplication,group=Service')
“print working directory” (pwd)
wls:/bifoundation_domain/domainCustom> pwd()
'domainCustom:/'
wls:/bifoundation_domain/domainCustom> cd ('EMDomain')
wls:/bifoundation_domain/domainCustom/EMDomain> pwd()
'domainCustom:/EMDomain'
Returns the value of the specified attribute.
> ls()
-r-- BIInstanceDeployment oracle.biee.admin:oracleInstance=instance1,type=BIDomain.OracleInsta
nce.BIInstanceDeployment,biInstance=coreapplication,group=Service
-r-- ClusterStyle SELF_MANAGED
-r-- ComponentType null
-r-- ConfigMBean false
-rw- ListenAddress null
-rw- MonitorPort 9701
-r-- OpmnType OracleBIServerComponent
-rw- Port 9703
-r-- ProcessId coreapplication_obis1
-r-- ReadOnly false
-r-- RestartNeeded false
-rw- ScriptRPCPort null
-r-- Started true
-r-- Status ALIVE
-r-- SystemMBean false
-r-- Type OracleBIServerComponent
-r-- eventProvider true
-r-- eventTypes java.lang.String[jmx.attribute.change]
-r-- objectName oracle.biee.admin:oracleInstance=instance1,type=BIDomain.BIInstanceD
eployment.BIComponent,biInstance=coreapplication,process=coreapplication_obis1,group=Service
-r-- stateManageable false
-r-- statisticsProvider false
> get('Status')
'ALIVE'
Invokes a management operation on the current configuration bean. Typically, you use this command to invoke operations other than the get and set operations that most WebLogic Server configuration beans provide.
