Double column support is the ability in the logical layer to associate two columns:
The double column feature lets you:
When multilingual columns are based on a lookup function, it is common to specify the non-translated lookup key column as the descriptor ID column of the translated column. Assigning a descriptor ID column enables Double Column Support, a feature which helps in defining language-independent filters. For example, in Answers, users see the display column, but the query filters on the hidden descriptor ID column.
Build internationalized analyses that are automatically filtered by language independent codes. (In previous releases from 11g, filters were not language independent.) For example, you can build one filtered analysis that can be used by both French-language users and English-language users.
The double column support permit you to change the display values without breaking existing analyses.
For example, suppose that you have an analysis that is filtered on the display value Excellent. If it is a double column, then the filtering will be performed on its code column with the code value for “Excellent” rather than the display value of “Excellent.” This means that you can change the display value Excellent to Superb without breaking the existing analysis.
The double column support permit you to deal with queries that involve LOB data types such as CLOBs and BLOBs and aggregate functions such as COUNT or SUM. Some data sources do not allow LOB columns to be used in the GROUP BY clause. So, instead of adding the LOB column to the GROUP BY, it is necessary to group by some other column that has a one-to-one relationship with the LOB column and then in join the LOB column after the aggregates have been computed.
If your repository is configured for double columns, and you are creating the filter on a display column and select the:
operator, then filtering will always be done by display values,not code values.
If your repository is configured for double columns, and you are creating the filter on a display column, then by default you specify display values. However, if your organization allows the display of code values, then you can specify code values rather than display values, but only if you use one of the following operators:

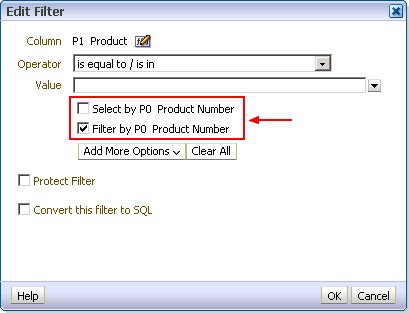

To specify code values, select the Select by Code Column check box. This box allow code values to be specified in the Value field.
When this box is:
Available only if your repository is configured for double columns and you selected either the:
operator.
This box specifies whether the column is to be filtered by code values or display values.
When this box is:
After having setting a descriptor id (for instance for Week Code), when you choose the column, Analytic add the column but also the DESCRIPTOR_IDOF function in the logical SQL.
"Dim Date"."Week Code"
DESCRIPTOR_IDOF("Dim Date"."Week Code")
