In Progress
Patching involves copying a small collection of files over an existing installation. A patch is normally associated with a particular version of an Oracle product and involves updating from one minor version of the product to a newer minor version of the same product (for example, from version 11.1.1.3.0 to version 11.1.1.5.0).
New Features in Oracle Business Intelligence 11g Release 1 (11.1.1.6)
net stop "beasvc bifoundation_domain_bi_server1" -- weblogic bi server
net stop "beasvc bifoundation_domain_AdminServer" -- weblogic Admin server
net stop "OracleProcessManager_instance1" -- OPMN
net stop "Oracle WebLogic NodeManager (E_MiddelwareHome_wlserver_10.3)" -- Node Manager
Verify that the process (beasvc.exe, …) are not running.
Oracle WebLogic Server must be to the latest version (10.3.5). If Oracle WebLogic Server is already installed on your system, make sure you have patched Oracle WebLogic Server to either version 10.3.6 or 10.3.5 (both are supported in Release 11.1.1.6.0)
Check your Weblogic Version and if the version is not 10.3.6 or 10.3.5, you have to patch the weblogic server.
Download the product installer. The product installers for Oracle Business Intelligence can be used to patch an existing Oracle Fusion Middleware installation.
These installers also offer a configuration option. When using them to apply a patch set, you must select the option to install the software only. Do not select the option to configure the software. The domain you are patching is already configured and does not require any reconfiguration.
The product installer will upgrade the weblogic domain.
Installation Successful.
Starting execution of post install scripts
Applying one off patches
Execution of post install scripts completed

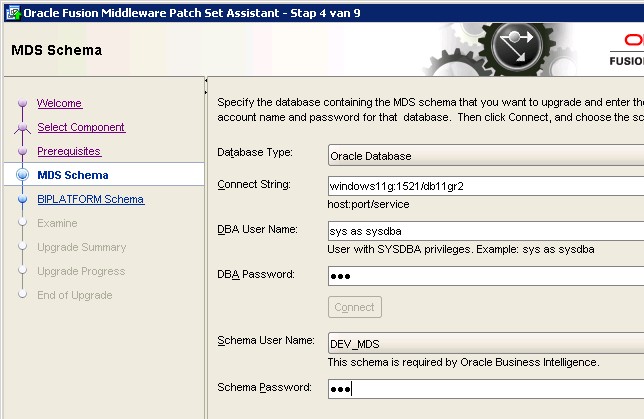

Schemas That Require Updating for the Latest Release
Recompile all objects:
SET ORACLE_HOME=E:\app\Administrator\product\11.2.0\dbhome_1
sqlplus / as sysdba
sys@db11gr2>@?/rdbms/admin/utlrp.sql
sys@db11gr2>SELECT owner, object_name FROM all_objects WHERE status='INVALID';
no rows selected
Verify the repository version
sys@db11gr2>SELECT OWNER, VERSION, STATUS, UPGRADED FROM SCHEMA_VERSION_REGISTRY WHERE OWNER IN
('DEV_MDS','DEV_BIPLATFORM');
OWNER VERSION STATUS U
------------------------------ ------------------------------ ----------- -
DEV_BIPLATFORM 11.1.1.6.0 VALID Y
DEV_MDS 11.1.1.6.0 VALID Y
Start:
cd E:\MiddelwareHome\user_projects\domains\bifoundation_domain\bin
startWeblogic.cmd
E:\MiddelwareHome\Oracle_BI1\bin>opmnctl start
E:\MiddelwareHome\Oracle_BI1\bin>opmnctl status
Processes in Instance: instance1
---------------------------------+--------------------+---------+---------
ias-component | process-type | pid | status
---------------------------------+--------------------+---------+---------
coreapplication_obiccs1 | OracleBIClusterCo~ | N/A | Down
coreapplication_obisch1 | OracleBIScheduler~ | N/A | Down
coreapplication_obijh1 | OracleBIJavaHostC~ | N/A | Down
coreapplication_obips1 | OracleBIPresentat~ | N/A | Down
coreapplication_obis1 | OracleBIServerCom~ | N/A | Down
set ORACLE_HOME="E:\MiddelwareHome\Oracle_BI1"
cd %ORACLE_HOME%\opmn\bin
upgradenonj2eeapp.bat
-oracleInstance E:\MiddelwareHome\instances\instance1
-adminHost localhost
-adminPort 7001
-adminUsername weblogic
Result:
E:\MiddelwareHome\Oracle_BI1\opmn\bin>upgradenonj2eeapp.bat -oracleInstance E:\M
iddelwareHome\instances\instance1 -adminHost localhost -adminPort 7001 -adminUse
rname weblogic
Unregister instance...
Command requires login to weblogic admin server (localhost):
Username: weblogic
Password:
Unregistering instance
Command succeeded.
redeploy NonJ2EEManagement.ear...
Command requires login to weblogic admin server (localhost):
Username: weblogic
Password:
Redeploying NonJ2EEManagement Application...weblogic.Deployer invoked with optio
ns: -adminurl localhost:7001 -username weblogic -name NonJ2EEManagement -source
E:\MiddelwareHome\Oracle_BI1\opmn\applications\NonJ2EEManagement.ear -redeploy
-upload -noexit
<23-mrt-2012 15:08:45 uur PDT> <Info> <J2EE Deployment SPI> <BEA-260121> <Initia
ting redeploy operation for application, NonJ2EEManagement [archive: E:\Middelwa
reHome\Oracle_BI1\opmn\applications\NonJ2EEManagement.ear], to configured target
s.>
Done
Command failed: NonJ2EEManagement Applicationdeployment failed.
Details are logged in E:\MiddelwareHome\instances\instance1\diagnostics\logs\OPM
N\opmn\provision.log
opmnctl redeploy: failed.
opmnctl redeploy -oracleInstance E:\MiddelwareHome\instances\instance1 -adminHost localhost -adminPort 7001 -adminUsername weblogic
You must not concatenate the disks content in one map but let them as is to start the installer.
[2012-03-23T11:57:50.572-07:00] [as] [NOTIFICATION] [] [oracle.as.install.bi] [tid: 13]
[ecid: 0000JP0urqP5yW^5xV_AiW1FRCU0000004,0]
Version of oracle.jdk in the oracle home: E:\MiddelwareHome\Oracle_BI1 is: 1.6.0.24.50
[2012-03-23T11:57:50.572-07:00] [as] [NOTIFICATION] [] [oracle.as.install.bi] [tid: 13]
[ecid: 0000JP0urqP5yW^5xV_AiW1FRCU0000004,0] :
E:\MiddelwareHome\Oracle_BI1 is: 1.6.0.24.50 < the version of oracle.jdk in the shiphome:
\\tsclient\E\kiosque\obiee\11.6\bi_windows_x86_111160_32\bishiphome is: 1.6.0.29.11
The -adminurl option (http://localhost:7001) of the deployer (weblogic.Deployer) is not needed if your run it from the server.
-- Set the weblogic environment
E:\MiddelwareHome\wlserver_10.3\server\bin>setWLSEnv.cmd
-- Start the deployer
java weblogic.Deployer -user weblogic -password weblogic12 -listapps
weblogic.Deployer invoked with options: -user weblogic -listapps
wsil-wls
analyticsRes
oracle.bi.adf.webcenter.slib [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
oracle.bi.adf.view.slib [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
oracle.dconfig-infra [LibSpecVersion=11,LibImplVersion=11.1.1.1.0] <ACTIVE VERSION>
oracle.jrf.system.filter
FMW Welcome Page Application [Version=11.1.0.0.0] <ACTIVE VERSION>
OracleRTD [Version=11.1.1.3.0]
orai18n-adf [LibSpecVersion=11,LibImplVersion=11.1.1.1.0] <ACTIVE VERSION>
DMS Application [Version=11.1.1.1.0] <ACTIVE VERSION>
adf.oracle.domain [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
bioffice [Version=11.1.1]
oracle.biopmn [Version=11.1.1] <ACTIVE VERSION>
mapviewer [Version=11.1.1]
oracle.bi.jbips [LibSpecVersion=11.1.1,LibImplVersion=0.1] <ACTIVE VERSION>
oracle.applcore.model [LibSpecVersion=0.1,LibImplVersion=11.1.1.0.0]
oracle.wsm.seedpolicies [LibSpecVersion=11.1.1,LibImplVersion=11.1.1] <ACTIVE VERSION>
ohw-uix [LibSpecVersion=5,LibImplVersion=5.0] <ACTIVE VERSION>
oracle.bpm.mgmt [LibSpecVersion=11.1.1,LibImplVersion=11.1.1] <ACTIVE VERSION>
oracle.jsp.next [LibSpecVersion=11.1.1,LibImplVersion=11.1.1] <ACTIVE VERSION>
oracle.adf.desktopintegration.model [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
bip-shared-libraries [Version=11.1.1]
oracle.webcenter.composer [LibSpecVersion=11.1.1,LibImplVersion=11.1.1] <ACTIVE VERSION>
bipublisher [Version=11.1.1.3.0]
oracle.adf.dconfigbeans [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
ESSAPP
adf.oracle.domain.webapp [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
jsf [LibSpecVersion=1.2,LibImplVersion=1.2.9.0] <ACTIVE VERSION>
jstl [LibSpecVersion=1.2,LibImplVersion=1.2.0.1] <ACTIVE VERSION>
bilocaladmin [Version=11.1.1]
UIX [LibSpecVersion=11,LibImplVersion=11.1.1.1.0] <ACTIVE VERSION>
adf.oracle.businesseditor [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
oracle.bi.adf.model.slib [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
emcore
bisearch [Version=11.1.1]
bimiddleware [Version=11.1.1]
ActionSamples
oracle.adf.management [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
bijdbc [Version=11.1.1.3.0]
oracle.ess [LibSpecVersion=11,LibImplVersion=1.0.0.0.0]
ohw-rcf [LibSpecVersion=5,LibImplVersion=5.0] <ACTIVE VERSION>
biadminutils [Version=11.1.1] <ACTIVE VERSION>
oracle.pwdgen [LibSpecVersion=11.1.1,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
oracle.bi.shared [Version=11.1.1] <ACTIVE VERSION>
bi.em
oracle.adf.desktopintegration [LibSpecVersion=1.0,LibImplVersion=11.1.1.2.0] <ACTIVE VERSION>
oracle.ess.client [LibSpecVersion=11,LibImplVersion=1.0.0.0.0]
analytics [Version=11.1.1]
NonJ2EEManagement
bijdbc [Version=11.1.1]
biadminservices [Version=11.1.1] <ACTIVE VERSION>
emai
biofficeclient [Version=11.1.1]
oracle.webcenter.skin [LibSpecVersion=11.1.1,LibImplVersion=11.1.1] <ACTIVE VERSION>
oracle.bi.composer [LibSpecVersion=11.1.1,LibImplVersion=0.1] <ACTIVE VERSION>
emas
em
wsm-pm
oracle.bi.public [Version=11.1.1] <ACTIVE VERSION>
Number of Applications Found : 59
