About

The central control entity of a domain which maintains the domain's configuration objects and distributes configuration changes to Managed Servers.

The Administration server is a Server that contains administration java components that enable administration of a single or multi-node (that is, distributed) BI domain.

Specifically the Administration Server contains the following java components:

How to

Start

With node manager

See node manager. When node manager starts, it will call a start script. The default script is startWebLogic.(cmd|sh). You start it from the command line (see section below). The start script is defined in the configuration file See StartScriptName property

With the command line

Before you can start the Weblogic AdminServer, the database that you specified during installation must be running, or JDBC errors prevent startup.

To start the Administration Server and all Oracle Business Intelligence Java Components included, start a shell and change to the directory to MW_HOME\user_projects\domains\bifoundation_domain\bin. Then, run the following command (which requires the administrator user name and password):

  • For Windows
startWebLogic.cmd

You can also stop the Java components from the MS-DOS window in which they were started, if you press Ctrl+C.

  • On UNIX
./startWebLogic.sh
Enter username to boot WebLogic server:weblogic
Enter password to boot WebLogic server:

See the section below to bypass_the_user_name_password_prompt

<Notice> <WebLogicServer> <BEA-000365> <Server state changed to STANDBY>
<Notice> <WebLogicServer> <BEA-000365> <Server state changed to STARTING>
<Notice> <WebLogicServer> <BEA-000360> <Server started in RUNNING mode>

Stop

The same process than the section above but with this command:

  • Windows:
stopWebLogic.cmd -stop
  • Unix:
./stopWebLogic.sh

Status

If the Administration Server is running, then the Oracle WebLogic Server Administration Console login page is displayed.

On Linux:

ps -elf|grep Dweblogic.Name=AdminServer

If you get an output like that it means that an AdminServer is running.

/u01/app/oracle/product/fmw/jrockit_160_29_D1.2.0-10/bin/java
-jrockit
-Xms256m
-Xmx1024m
-Dweblogic.Name=AdminServer
-Djava.security.policy=/u01/app/oracle/product/fmw/wlserver_10.3/server/lib/weblogic.policy
-Dweblogic.ProductionModeEnabled=true
-da
-Dplatform.home=/u01/app/oracle/product/fmw/wlserver_10.3
-Dwls.home=/u01/app/oracle/product/fmw/wlserver_10.3/server
-Dweblogic.home=/u01/app/oracle/product/fmw/wlserver_10.3/server
-Dcommon.components.home=/u01/app/oracle/product/fmw/oracle_common
-Djrf.version=11.1.1
-Dorg.apache.commons.logging.Log=org.apache.commons.logging.impl.Jdk14Logger
-Ddomain.home=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di
-Djrockit.optfile=/u01/app/oracle/product/fmw/oracle_common/modules/oracle.jrf_11.1.1/jrocket_optfile.txt
-Doracle.server.config.dir=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/config/fmwconfig/servers/AdminServer
-Doracle.domain.config.dir=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/config/fmwconfig
-Digf.arisidbeans.carmlloc=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/config/fmwconfig/carml
-Digf.arisidstack.home=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/config/fmwconfig/arisidprovider
-Doracle.security.jps.config=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/config/fmwconfig/jps-config.xml
-Doracle.deployed.app.dir=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/servers/AdminServer/tmp/_WL_user
-Doracle.deployed.app.ext=/-
-Dweblogic.alternateTypesDirectory=/u01/app/oracle/product/fmw/oracle_common/modules/oracle.ossoiap_11.1.1,/u01/app/oracle/product/fmw/oracle_common/modules/oracle.oamprovider_11.1.1
-Djava.protocol.handler.pkgs=oracle.mds.net.protocol
-Dweblogic.jdbc.remoteEnabled=false
-Dbi.oracle.home=/u01/app/oracle/product/fmw/Oracle_BI1
-DEPM_ORACLE_HOME=/u01/app/oracle/product/fmw/Oracle_BI1
-Dweblogic.MaxMessageSize=50000000
-DEPM_ORACLE_HOME=/u01/app/oracle/product/fmw/Oracle_BI1
-DHYPERION_HOME=/u01/app/oracle/product/fmw/Oracle_BI1
-DEPM_ORACLE_INSTANCE=novalue
-Dhyperion.home=/u01/app/oracle/product/fmw/Oracle_BI1
-DEPM_REG_PROPERTIES_PATH=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/config/fmwconfig
-Depm.useApplicationContextId=false
-Doracle.biee.search.bisearchproperties=/u01/app/oracle/product/fmw/Oracle_BI1/bifoundation/jee/BISearchConfig.properties
-Dweblogic.management.clearTextCredentialAccessEnabled=true
-Doracle.notification.filewatching.interval=2000
-Dweblogic.security.SSL.ignoreHostnameVerification=true
-Dweblogic.security.SSL.enableJSSE=true
-Dfile.encoding=utf-8
-Doracle.ecsf.security.service=oracle.biee.search.security.BISearchSecurityService
-Doracle.ecsf.configuration.class=oracle.biee.search.services.BISearchServiceConfiguration
-Dxdo.server.config.dir=/u01/app/oracle/product/fmw/user_projects/domains/bifoundation_domain_di/config/bipublisher
-DXDO_FONT_DIR=/u01/app/oracle/product/fmw/Oracle_BI1/common/fonts
-Drtd.instanceName=RTD_AdminServer
-Dem.oracle.home=/u01/app/oracle/product/fmw/oracle_common
-Djava.awt.headless=true
-Dweblogic.management.discover=true
-Dwlw.iterativeDev=false
-Dwlw.testConsole=false
-Dwlw.logErrorsToConsole=false
-Dweblogic.ext.dirs=/u01/app/oracle/product/fmw/patch_wls1036/profiles/default/sysext_manifest_classpath:/u01/app/oracle/product/fmw/patch_ocp371/profiles/default/sysext_manifest_classpath weblogic.Server

Bypass the user name password prompt

To bypass the user name password prompt when starting domain Admin Server or any of its managed ones, you can do the following steps:

  • Create the “security” directory under the following location :
<MiddleWare_Home>/user_projects/domains/<Domain_Name>/servers/AdminServer/security
MiddelwareHome\user_projects\domains\bifoundation_domain\servers\AdminServer\security

  • Create a text file called boot.properties in the security directory with the following two lines:
username=weblogic
password=password

Support

Log files

In case of Problem, you can see the message in the log file in the following directory:

\user_projects\domains\bifoundation_domain\servers\AdminServer\logs

Example of log problem:

Server subsystem failed. Reason: weblogic.security.SecurityInitializationException:
Authentication for user weblogic denied
weblogic.security.SecurityInitializationException: Authentication for user weblogic denied

Documentation / Reference





Discover More
Fusion Middelware Dir Structure
(Fusion Middelware|Weblogic|OPMN) - Directory Structure and Home

A typical Fusion Middelware installation installation consists of: a Fusion Middleware home directory and subdirectories: a weblogic server home an oracle common an (application|Oracle) home (BI,...
Card Puncher Data Processing
(Weblogic|Fusion Middelware|FMW)

Fusion Middelware (FMW) is an application server composed of two technologies: Weblogic for java application and of the console (aka Enterprise Manager) for non java application An instance of...
Eclipse Server Runtime Environment Weblogic
Eclipse - How to add a Weblogic Server as Eclipse Server ?

To be able to interact with a Weblogic Server, you have to configure it as Eclipse Server. Get the Weblogic Version (For a remote server) Download OEPE Download and Install a Weblogic...
Obiee Delivers Advanced Java Action
OBIEE 10G - Advanced Publication with Delivers (In Java)

Delivers give the possibilities to pass the content of an answer using its advanced option (custom script/program) to a program written in : Java or Javascript The Oracle BI Publisher Java API can...
Obiee 11g Windows Service Default
OBIEE 11G - BI Services as Windows Services Installation

To convert the Start Bi Services from the Start menu into a Windows Service, you have to create two services: one for the AdminServer and the other for the Managed Server The step by step are in...
Obiee 11g Bisqlprovider Schema
OBIEE 11G - BISQLProvider

A authentication provider called BISQLGroupProvider that provide the groups through database look-up. This group can then be linked to application role. The database just stores the groups to be associated...
Obiee 11g Installer Directory Structure
OBIEE 11G - In-Place Upgrade - Moving from 11.1.1.5 to 11.1.1.6

Patching involves copying a small collection of files over an existing installation. A patch is normally associated with a particular version of an Oracle product and involves updating from one minor version...

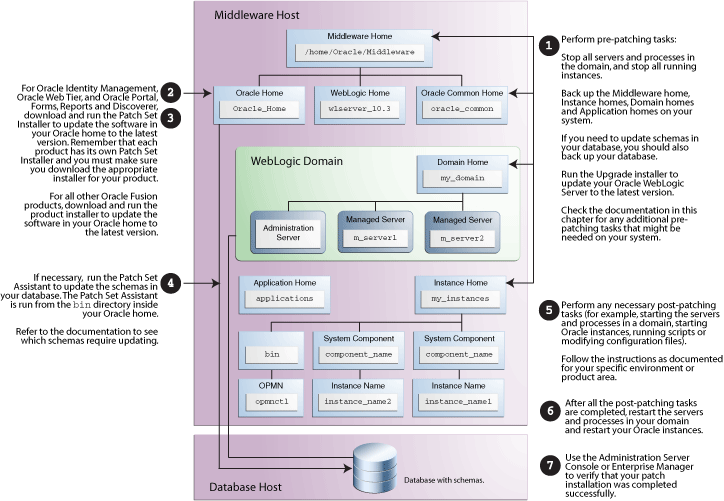

Oracle Patch Overview
OBIEE 11G - In-Place Upgrade - Patch Set Installation from version 11.1.1.3.0 to version 11.1.1.5.0

Patching involves copying a small collection of files over an existing installation. A patch is normally associated with a particular version of an Oracle product and involves updating from one minor version...
Obiee11g Architecture Functional Component
OBIEE 11G - Oracle BI Fusion Middleware Architecture

The Oracle Business Intelligence system logical architecture comprises a single integrated set of manageable components called the Oracle BI domain which can be installed and configured to work together...

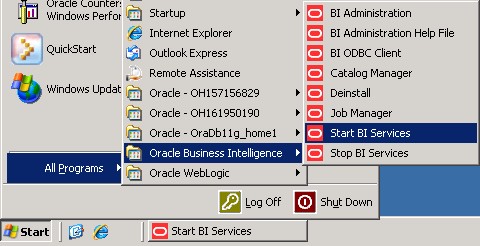

Obiee 11g Start Bi Service Shortcut
