Weblogic - Domain

Card Puncher Data Processing


An Oracle WebLogic Server administration domain is a logically related group of Java components:

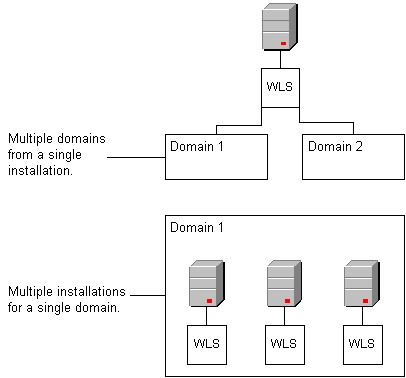

Weblogic Architecture Domain


remove a domain

  • Just copy the domain in an other location than FMW_Home\user_projects\domain
  • And suppress the entry in the FMW_HOME\wlserver_10.3\common\nodemanager.domains file.


Example of value:


#bi Linux
#bi Windows

Other locations:

  • Stand Alone WebLogic Server: FMW_Home\user_projects\domains
  • JDeveloper Integrated WebLogic Server:
    • In Windows environments: %APPDATA%\JDeveloper\systemXX.XX.XX.XX\DefaultDomain where XX.XX.XX.XX is the unique number of the product build.
    • In non-Windows environments, the default location is under the current user's default home directory: <Home>/DefaultDomain


Extending a domain means that you add products and functionality to an existing domain.


Each domain describes its configuration in an XML document that is located in the domain's configuration directory. The central configuration file for a domain is DOMAIN_NAME/config/config.xml.

Example with a BI installation:

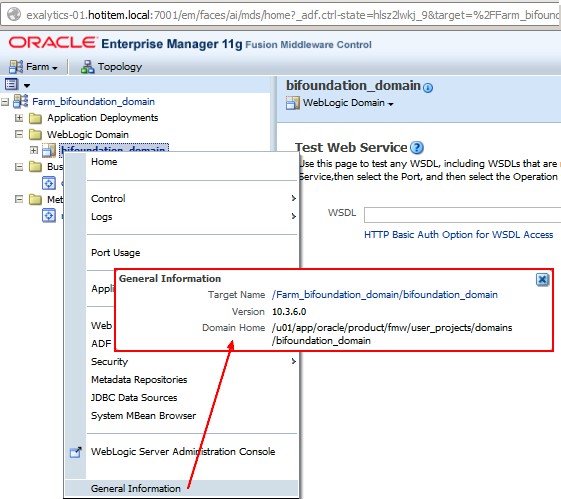

General Information

Weblogic Domain General Information


The schemas that define a domain’s configuration document are in the following locations:



A standalone domain is a container for system components, such as Oracle HTTP Server. It has a directory structure similar to an Oracle WebLogic Server domain, but it does not contain an Administration Server or Managed Servers. It can contain one or more instances of system components of the same type, such as Oracle HTTP Server, or a mix of system component types.

Documentation / Reference

Discover More
Fusion Middelware Dir Structure
(Fusion Middelware|Weblogic|OPMN) - Directory Structure and Home

A typical Fusion Middelware installation installation consists of: a Fusion Middleware home directory and subdirectories: a weblogic server home an oracle common an (application|Oracle) home (BI,...
Obiee11g Credential Store
(Weblogic|Fusion Middelware) - Credential Store Framework (CSF)

A credential store is the repository of security data that certify the authority of entities used by Java 2, J2EE, and ADF applications. Applications can use the Credential Store, a single, consolidated...
Card Puncher Data Processing
(Weblogic|Fusion Middelware) - (Oracle) Instance

In Fusion Middelware, an Oracle Instance is a container for all of system (non-JEE) components and processes. An Oracle instance directory contains updatable files, such as configuration files, log files,...
Card Puncher Data Processing
(Weblogic|Fusion Middelware|FMW)

Fusion Middelware (FMW) is an application server composed of two technologies: Weblogic for java application and of the console (aka Enterprise Manager) for non java application An instance of...
Oracle Platform Structured Unstructured Data
Endeca Server - Domain

An Endeca Server domain is a weblogic domain. data domain
Weblogic Application Stripe
Fusion Middelware - Policy store

The Policy Store is a repository ofsystem and application-specific policies and roles. The policy store provider provides access (and contains) to: Application Roles (to create functional group) ...

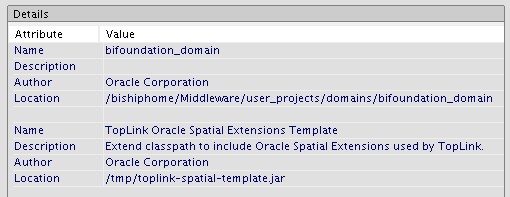

Weblogic Extend Domain Configuration Summary Toplink Spatial Template
