Weblogic - Java Components

Card Puncher Data Processing


A Oracle Fusion Middleware Java component is deployed as:

  • one or more Java EE applications
  • and a set of resources.

Java components are deployed to an Oracle WebLogic Server domain as part of a domain template. For Oracle BI, see the BI Domain

They can be contained in:

Obiee11g System Logical Architecture

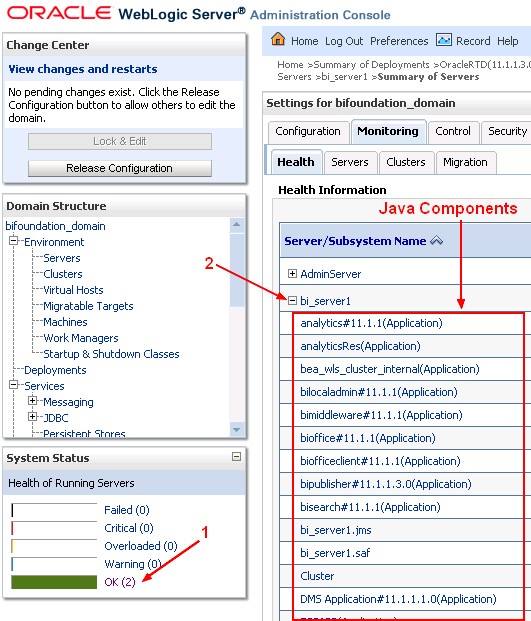

You can monitor them with the Administration Console

Contains in the


Java components contained in the AdminServer are Administrative Components for managing all configuration and run-time settings for Oracle Business Intelligence. Specifically the Administration Server contains the following:

Managed Server

Obiee11g Java Components Java components contained in the Managed Server:

This component provides the dedicated Web services that are required by the Action Framework and that enable an administrator to manually configure which Web service directories can be browsed by users when they create actions.

  • Oracle BI SOA Services — This component provides dedicated Web services for objects in the Oracle BI Presentation Catalog, to invoke analyses, agents, and conditions. They make it easy to invoke Oracle Business Intelligence functionality from Business Process Execution Language (BPEL) processes.
  • Business Intelligence Search
  • Oracle Web Service Manager
  • Oracle Real-Time Decisions (Oracle RTD) — provides enterprise analytics software solutions that enable companies to make better decisions in real time at key, high-value points in operational business processes.
  • Answers Mapviewer
  • Oracle Scorecard and Strategy Management
  • Oracle BI Office — integration between Oracle Business Intelligence and Microsoft Office products.
  • Oracle BI Security Services — provides dedicated Web services that enable the integration of the Oracle BI Server with the Oracle Fusion Middleware security platform.
  • Oracle BI Plugin — A JEE application that routes HTTP and SOAP requests to Oracle BI Presentation Services.


All Oracle Business Intelligence products intended for a WebLogic domain must be installed and configured at the same time.

You cannot install some products and then install others to the same WebLogic domain later.

The JEE Java Components are managed by:

Discover More
Fusion Middelware Dir Structure
(Fusion Middelware|Weblogic|OPMN) - Directory Structure and Home

A typical Fusion Middelware installation installation consists of: a Fusion Middleware home directory and subdirectories: a weblogic server home an oracle common an (application|Oracle) home (BI,...
Card Puncher Data Processing
(Weblogic|Fusion Middelware|FMW)

Fusion Middelware (FMW) is an application server composed of two technologies: Weblogic for java application and of the console (aka Enterprise Manager) for non java application An instance of...
Obiee11g System Logical Architecture
OBIEE 11G - BI Domain - The complete OBI System

The BI domain designs a complete OBI system. It consists of: one single WebLogic Domain, containing WebLogic plus all of the Java components that are deployed into one or more Java EE (JEE) containers....
Oracle Patch Overview
OBIEE 11G - In-Place Upgrade - Patch Set Installation from version to version

Patching involves copying a small collection of files over an existing installation. A patch is normally associated with a particular version of an Oracle product and involves updating from one minor version...
Obiee11g Bip Security Center Roles
OBIEE 11G - Installation Sample Application version 825

edit the “” Save the file. Login to the EM administration screen using the url Expand 'Business Intelligence' > Coreapplication > Deployment > Repository Click...
Obiee11g Architecture Functional Component
OBIEE 11G - Oracle BI Fusion Middleware Architecture

The Oracle Business Intelligence system logical architecture comprises a single integrated set of manageable components called the Oracle BI domain which can be installed and configured to work together...
Obiee11g Fmw
Weblogic - Managed Server

The Managed Servers is a server in a cluster (single node cluster by default) and contains non administrative java components. An Oracle BI domain contains one or more Managed Servers that are distributed...
Card Puncher Data Processing
Weblogic - (System|Non-java) components (Managed Services)

“opmnctl status“, this will show you status of all the OBIEE core services “opmnctl startall” or “opmnctl stopall” run “opmnctl startproc ias-component= ”the FMW console

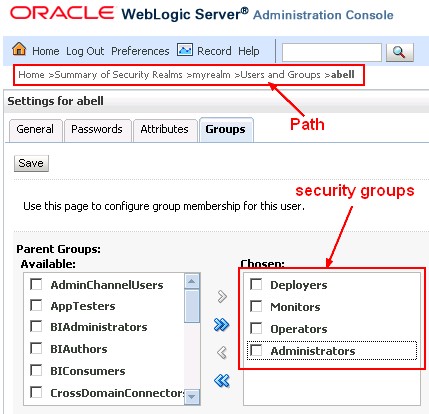

Weblogic Console Security Group
