(Fusion Middelware|Weblogic|OPMN) - Directory Structure and Home

Card Puncher Data Processing


A typical Fusion Middelware installation installation consists of:

  • a Fusion Middleware home directory and subdirectories:
    • a weblogic server home
    • an oracle common
    • an (application|Oracle) home (BI, SOA, …)
    • a user project

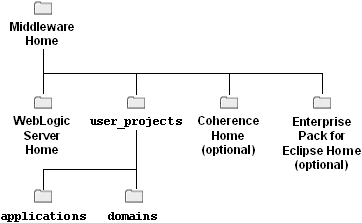

The following illustration shows the basic Middleware home and Middleware products directory structure.

Fusion Middelware Dir Structure

Home Description Example
middelware_home the base directory of a middelware C:\Middelware
oracle_home the generic application home MIDDELWARE_HOME\Oracle_BI1 for a BI Application
oracle_instance the instance location for OBI: MIDDELWARE_HOME\instances\instance1
ORACLE_DOMAIN the domain home location for OBI: MIDDELWARE_HOME\user_projects\domains\bifoundation_domain



A (WebLogic) Middleware home is a container for:


A Middleware home can reside:

  • on a local file system
  • or on a remote shared disk that is accessible through a network file system.


The basic subdirectories are:

  • wlserver_10.3: The WebLogic Server home
  • oracle_home: The Oracle Home (Oracle BI Home for an Oracle BI Installation)
  • oracle_common: The Oracle Common Home contains the common binary and library files.


The WebLogic Server home, which contains Java components, one Administration Server, and one or more Managed Servers.


Each Oracle Fusion Middleware product must be installed in its own Oracle home location.

The Oracle Home contains binary and library files of a fusion middelware application.


The BI Oracle home designs the oracle home for the application Oracle BI.

The BI Oracle home can be associated with multiple Oracle WebLogic Server domains.

The default value is:



The Oracle Common Home contains the binary and library files required for Fusion Middleware Control and Java Required Files (JRF). There can be only one Oracle Common home within each Middleware home.


The User Projects directory contains product domains (one or more domains per Fusion Middelware Software Application).

The user_projects directory is not present until the first WebLogic domain is created.


The instance home location.


It can reside anywhere; it need not be within the Middleware home directory.

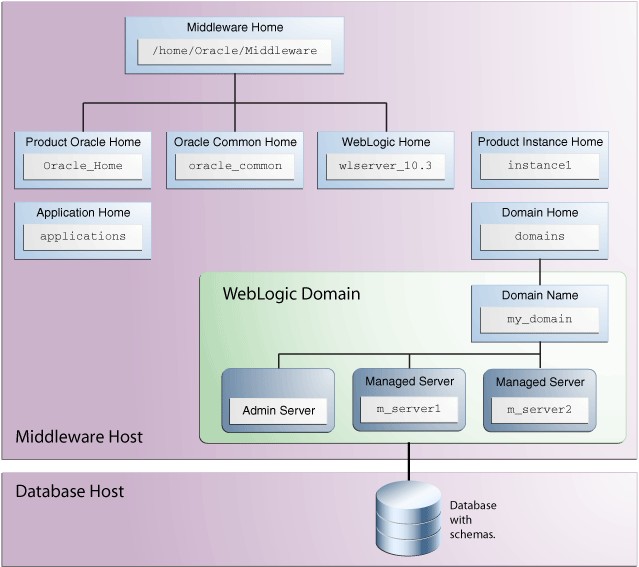

OBIEE Directory Structure

Oracle Business Intelligence requires a Middleware home with Oracle WebLogic Server on your system. If your system does not already have Oracle WebLogic Server, you can install it in a new Middleware Home directory.

Obiee11g Directory Structure

Documentation / Reference

Discover More
Card Puncher Data Processing
Fusion Middelware - OPMN.xml configuration file

OPMN.xml is the main configuration file for OPMN that is used to launch each system component (such as Oracle Business Intelligence). It specifies environment variable (path, ...) PATH LD_LIBRARY_PATH...
Obiee Skin Myimage
OBIEE - The relative path fmap

fmap is a shortcut to refer to the image loaded in the memory of the OBI Presentation Server. application server . This images are loaded during the initialization of the server and are located in...

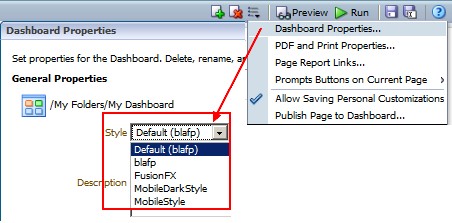

Obiee 11g Style Dashboard Property
OBIEE 10G/ - How to create a New Style and Skin ?

How to implement this own style and skin. The skin and style are web resources (javascript, css, image, ..) located in two directory. The directories have the following syntax: sk_SkinName to design...
Obiee Connection Pool
OBIEE 10G/11G - Oracle Call Interface (OCI) configuration

This page shows you how to install an OCI driver with OBIEE. To use it you have to install it on the BI Server machine through an Oracle Client installation (for instance an Oracle Database, an...
Obiee 11g Windows Service Default
OBIEE 11G - BI Services as Windows Services Installation

To convert the Start Bi Services from the Start menu into a Windows Service, you have to create two services: one for the AdminServer and the other for the Managed Server The step by step are in...
Obiee11g Saw Preference Currency
OBIEE 11G - Currency

the Currency box on the My Account dialog: Preferences tab the Currency Prompt option on the Definition pane of the Prompt editor. The currency value is stored in the system session variable. This...
Obiee11g Architecture Functional Component
OBIEE 11G - New Features and changes 11G

Oracle Business Intelligence Enterprise Edition (OBIEE) 11g is the most significant release of OBIEE since 2006. This article contains the significant changes and new features of OBIEE 11g. Oracle...
Obiee11g Architecture Functional Component
OBIEE 11G - Oracle BI Fusion Middleware Architecture

The Oracle Business Intelligence system logical architecture comprises a single integrated set of manageable components called the Oracle BI domain which can be installed and configured to work together...

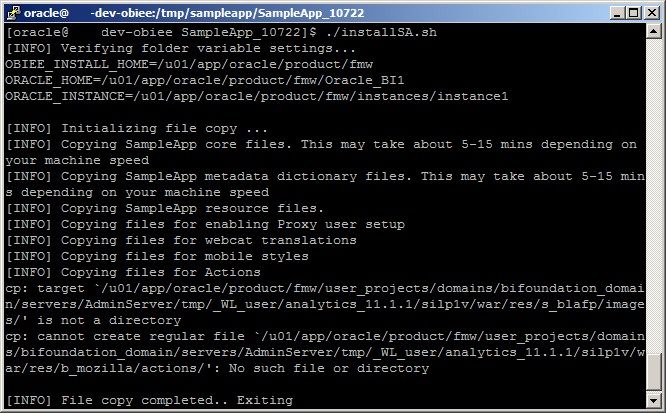

Obiee 11g Sample App Installsa
