Weblogic - Fusion Middleware Control (aka Entreprise Manager)

Card Puncher Data Processing


Fusion Middleware Control is a browser-based tool and the recommended method for monitoring, managing, and configuring Oracle Business Intelligence components.

Fusion Middleware Control is used principally for managing the system components of a BI domain and provides support for the following:

Fusion Middleware Control also provides access to Oracle WebLogic Server Administration Console, where you monitor and manage Oracle Business Intelligence Java components.

How to

log in

To log in to Fusion Middleware Control, enter the URL: http://host1.example.com:7001/em

manage Java components

On the WebLogic Domain page, you can monitor status and start and stop Oracle Business Intelligence Java components (Admin Server and Managed Servers).

To go to the WebLogic Domain page

  • Log in to Fusion Middleware Control.
  • Expand the WebLogic Domain folder and select the bifoundation_domain node. Fusion Middleware Control displays the bifoundation_domain page.

You can also display the WebLogic Server Administration Console (using a link on the bifoundation_domain Summary page), where you can manage Oracle Business Intelligence Java components.

  • Application Deployments shows all the applications (java component) that are deployed into the BI domain (for example, analytics, Oracle Business Intelligence Add-in for Microsoft Office, Oracle BI Publisher, and Oracle Real-Time Decisions).
  • WebLogic Domain. To administer Oracle WebLogic Server where the sub-node bifoundation_domain represents the WebLogic domain for Oracle Business Intelligence with an AdminServer node that contains the Administration Server and a bi_cluster node that contains Managed Servers (a single node cluster by default).
  • Business Intelligence > coreapplication represents the Oracle Business Intelligence system components.
  • Metadata Repositories represents the Metadata Services (MDS) schema repositories

Documentation / Reference

Discover More

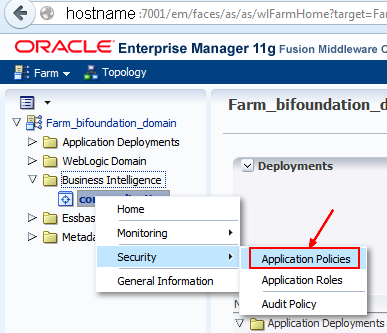

Obiee Application Policies
Fusion Middelware - Application Policy (Permissions)

They define the application permissions. For instance with OBI: Oracle BI Server, BI Publisher, and Real Time Decisions functionality permissions In em:
Fusion Middelware Architecture
Fusion Middelware - Architecture

Fusion Middelware implements a multitier architecture where: Figure 3-2 Oracle Fusion Middleware...
Fusion Middelware Em Mds
Fusion Middelware - Metadata Service (MDS)

The MDS schema provides aunified metadata store for Oracle Fusion Middleware products and components, such as Oracle Business Intelligence. Oracle Metadata Services (MDS) is an application server and...

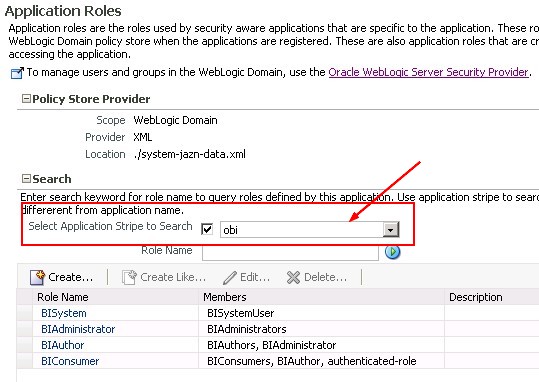

Weblogic Application Stripe
Fusion Middelware - Policy store

The Policy Store is a repository ofsystem and application-specific policies and roles. The policy store provider provides access (and contains) to: Application Roles (to create functional group) ...
Obi Edition
OBIEE - DMS Metrics

OBIEE DMS metrics are available in Fusion Middleware Control for system components within a given Oracle Business Intelligence installation. Tools (GUI and scripting) available to see and get performance...

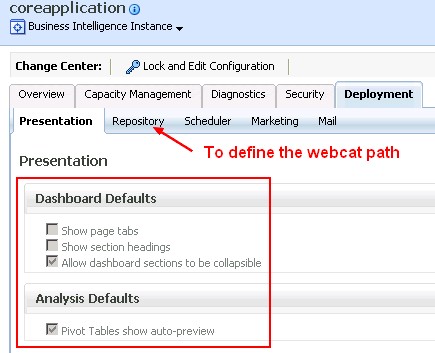

Obiee11g Deployment Presentation Parameters
