This article go through all the minimal steps that you must perform to configure BI Scheduler.
The tricky step is to perform the credential link between presentation service (for use with delivers) and scheduler. If you don't do it, you could not save any Ibot and you will receive this error :
The configurations data are stored in this file: C:\OracleBIData\scheduler\config\instanceconfig.xml
To go in the configuration windows :
To be able to set up the database part of the Oracle BI Scheduler configuration, we need to create :
Create an S_NQ_SCHED user with the required privileges in the database by logging in to SQL* Plus as the sys or system user:
SQL> create user S_NQ_SCHED identified by S_NQ_SCHED
default tablespace users
temporary tablespace temp
quota unlimited on users;
SQL> grant connect, resource to S_NQ_SCHED;
You will find a set of files (one by database type) in the directory:
which contain all the DDL intructions to create rapidly the scheduler tables.
The files name pattern are :
Assuming that you will perform an installation on Oracle :
SQL> connect S_NQ_SCHED/S_NQ_SCHED;
-- create Oracle Business Intelligence Scheduler tables.
SQL>@C:\OracleBI\server\Schema\SAJOBS.Oracle.sql
-- create the Accounting table
SQL>@C:\OracleBI\server\Schema\SAACCT.Oracle.sql
Table Name | Table Description |
---|---|
S_NQ_JOB | This table is used by Scheduler to store information about scheduled jobs |
S_NQ_INSTANCE | The S_NQ_INSTANCE table stores information about scheduled job instances |
S_NQ_ERR_MSG | This table stores error messages for Scheduler job instances that do not complete successfully. |
S_NQ_JOB_PARAM | This table holds information about Scheduler job parameters for scheduled jobs |

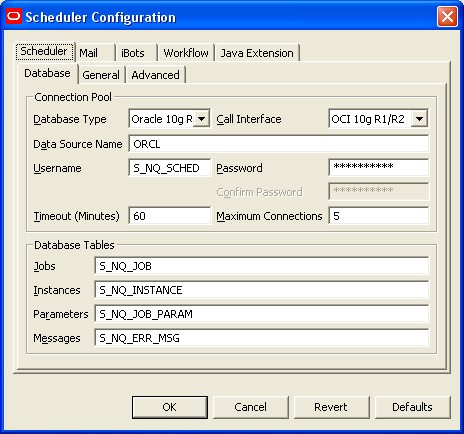

Now that our prerequisites have been performed, we can fill the database windows :

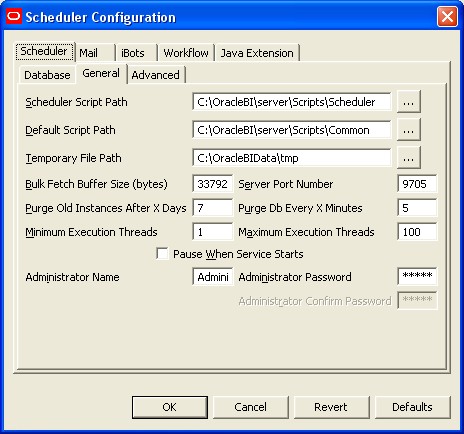

On this tab, you can :
You manage the IBot (Internet Robot : the definition of a job) with Presentation Service.
When you save an IBot, Presentation Service must be able to communicate with BI Scheduler to save it.
It does it through the only scheduler account “Administrator” of BI Scheduler.
The external credential for Presentation Service are all stored in a credential file and you have to perform the next steps to do it.
To configure the credential, you will use an alias because the credential file can contain more than one credential (login/password).
Presentation Services uses the alias “admin” to identify the username-password credential for the Scheduler administrator.
The alias value is “admin” and not “bipublisheradmin” which is use for the credential of BIP and that you can find in the instanceconfig.xml
<AdvancedReporting>
<ReportingEngine>XmlP</ReportingEngine>
<Volume>XmlP</Volume>
<ServerURL>http://NGERARD:9704/xmlpserver/services/XMLPService</ServerURL>
<WebURL>http://NGERARD:9704/xmlpserver</WebURL>
<AdminURL>http://NGERARD:9704/xmlpserver/servlet/admin</AdminURL>
<AdminCredentialAlias>bipublisheradmin</AdminCredentialAlias>
</AdvancedReporting>
The Scheduler administrator must be a user in the Oracle BI repository (.rpd file) and have the Administrator group membership assigned in BI Server but also in BI Presentation Service to be able to access all objects.
But in our example, I will use my own to show the complete use :

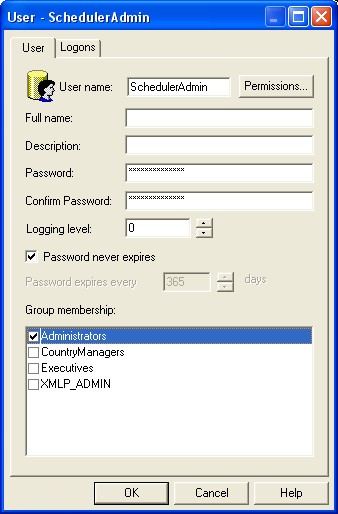

To create the user, go to the Administration tool, select in the menu : Manage / Security. In the security manager, in the Menu : Action / New User
You can encrypt the password during the process. If you have always perform the configuration of Business Intelligence Publisher, you must use the same passphrase for encryption
The directory of the credential file (credentialstore.xml) depends of the OBIEE version:
In a Command Dos for 10g :
Cd C:\OracleBI\web\bin
cryptotools credstore -add -infile C:\OracleBIData\web\config\credentialstore.xml
>Credential Alias: Admin
>Username: SchedulerAdmin
>Password: SchedulerAdmin
>Do you want to encrypt the password? y/n (y):
>Passphrase for encryption: secret
>Do you want to write the passphrase to the xml? y/n (n):
>File "OracleBIData_HOME/web/config/credentialstore.xml" exists. Do you want to
overwrite it? y/n (y):
In the file instanceconfig.xml, you may now tell to presentation service where it can find the credential file and the passphrase.
<?xml version="1.0"?>
<WebConfig>
<ServerInstance>
<!-- other settings ... -->
<CredentialStore>
<CredentialStorage type="file" path="C:\OracleBIData\web\config\credentialstore.xml" passphrase="secret"/>
<!-- other settings ... -->
</CredentialStore>
<!-- other settings ... -->
</ServerInstance>
</WebConfig>
Normally, you don't have to perform this step in a standard installation process.
Specifying the Scheduler Host and Port in Presentation Services Configuration File Locate the file instanceconfig.xml and make a backup copy. If the Scheduler port has been changed from the default of 9705, specify the Scheduler port number. For example:
<ServerInstance>
. . .
<Alerts>
<ScheduleServer>Schedulermachine_Name_Or_IP:Port</ScheduleServer>
</Alerts>
</xml>
In Windows : Start / Control Panel / Administrative Tools / Service. Right click on the services
And restart them.
In the privileges section, you can manage the delivers rights :
If you have this error when you try to save an Ibot, you have forgotten to perform the credential step and/or to restart the Presentation Service.
Oracle BI Scheduler Error: [nQSError: 68019] Authentication Failed.
Error Details
Error Codes: GYFPI8RN
Oracle BI Scheduler Error: [nQSError: 76012] The Scheduler client connection was closed.
Error Details
Error Codes: GYFPI8RN
You must read the Oracle BI Scheduler Service was down when you started Oracle BI Presentation Service.
Solution: Restart the Oracle Bi Presentation Service with Oracle BI Scheduler Up.
OracleBI_Home\server\Log\iBots
FMW_HOME/instances/instance1/diagnostics/logs/OracleBISchedulerComponent/coreapplication_obisch1
