To convert the Start Bi Services from the Start menu into a Windows Service, you have to create two services:
The step by step are in the following paragraph.

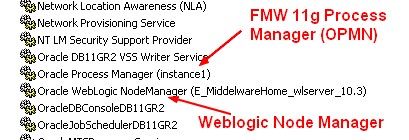

By default the only Fusion Middleware 11g components configured as MS Windows Services by the install process are:
If you primarily want to use Weblogic Admin Console to control the managed servers then do NOT configure managed servers as MS Windows Services.
First for troubleshooting / debugging purposes it is helpful to redirect standard out and error to a text file. Although most information is captured in the AdminServer server log files, you will not see all standard out and error when the server is started via a MS Windows Service (unlike when you start an AdminServer from the command prompt using startWebLogic.cmd). To redirect standard out to a text file, backup and edit installSvc.cmd (MiddelwareHome\wlserver_10.3\server\bin\installSvc.cmd) and change the line at the bottom of the file so it include the -log parameter e.g
"%WL_HOME%\server\bin\beasvc" -install -svcname:"%DOMAIN_NAME%_%SERVER_NAME%" -javahome:"%JAVA_HOME%" -execdir:"%USERDOMAIN_HOME%" -extrapath:"%WL_HOME%\server\bin" -password:"%WLS_PW%" -cmdline:%CMDLINE%
-log:"E:\MiddelwareHome\user_projects\domains\bifoundation_domain\%SERVER_NAME%-stdout.txt"
An alternative to the boot.properties approach to specifying the Admin Server weblogic username / password is to add the following environment variables to the following wrapper script
set WLS_USER=weblogic
set WLS_PW=manager11g
SETLOCAL
set DOMAIN_NAME=bifoundation_domain
set USERDOMAIN_HOME=E:\MiddelwareHome\user_projects\domains\bifoundation_domain
set SERVER_NAME=AdminServer
set PRODUCTION_MODE=true
cd %USERDOMAIN_HOME%
call %USERDOMAIN_HOME%\bin\setDomainEnv.cmd
call "E:\MiddelwareHome\wlserver_10.3\server\bin\installSvc.cmd"
ENDLOCAL
"%WL_HOME%\server\bin\beasvc" -install
-svcname:"%DOMAIN_NAME%_%SERVER_NAME%"
-javahome:"%JAVA_HOME%" -execdir:"%USERDOMAIN_HOME%"
-extrapath:"%WL_HOME%\server\bin" -password:"%WLS_PW%"
-cmdline:%CMDLINE%
-log:"E:\MiddelwareHome\user_projects\domains\bifoundation_domain\%SERVER_NAME%-stdout.txt"
beasvc %DOMAIN_NAME%_%SERVER_NAME%"
beasvc ClassicDomain_AdminServer
beasvc bifoundation_domain_AdminServer
Steps to convert the Bi Services for a Managed Server:
MiddelwareHome\user_projects\domains\bifoundation_domain\servers\bi_server1\security
SETLOCAL
set DOMAIN_NAME=bifoundation_domain
set USERDOMAIN_HOME=E:\MiddelwareHome\user_projects\domains\bifoundation_domain
set SERVER_NAME=bi_server1
set PRODUCTION_MODE=true
set ADMIN_URL=http://localhost:7001
cd %USERDOMAIN_HOME%
call %USERDOMAIN_HOME%\bin\setDomainEnv.cmd
call "E:\MiddelwareHome\wlserver_10.3\server\bin\installSvc.cmd"
ENDLOCAL
beasvc %DOMAIN_NAME%_%SERVER_NAME%"
beasvc ClassicDomain_AdminServer
beasvc bifoundation_domain_bi_server1

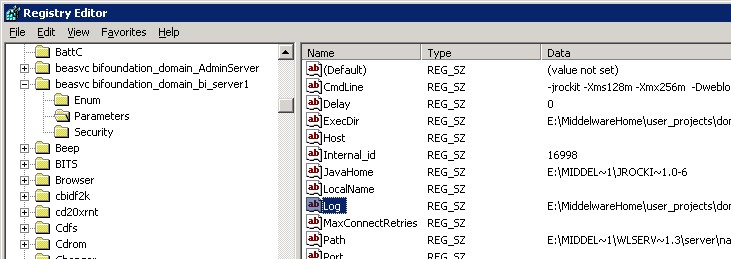

MS Windows writes the service parameters / details to the registry.
If you want to view/modify these parameters, open up the MS Windows Registry Editor (regedit) and navigate to:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\beasvc <your domain>_<managed server name>\Parameters
When Starting the BI_Server Managed Server as a service, you may receive this message:
Caused By: java.lang.IllegalStateException: Required environment variable BI_ORACLE_HOME not set
at oracle.bi.management.utils.OracleHome.getOracleHomePath(OracleHome.java:24)
at oracle.bi.management.recvbidomain.ConfigureEndpointHelper._configureOdbc(ConfigureEndpointHelper.java:918)
....

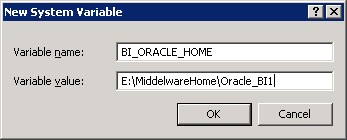

Create the BI_ORACLE_HOME environment variable following the directory structure
