A moderation analysis is a multiple regression analysis.
The main reason to run a moderation analysis is to demonstrate how a third variable (Z) changes the correlation between two variables (X and Y).
We have a correlation between x and y, and then it varied as a function of z.
A moderator is a variable that will try to say if the outcome variable is influenced by each value of a variable or not. If it's the case, it will enhance the model.
A moderator variable (Z) will enhance a regression model if the relationship between X and Y varies as a function of Z
The moderator has influence over other effects, over others relationships. A mediator is designed to explain a relationship (for instance between a predictor and an outcome)
If there is a moderator, Z, then the regression coefficient (B) will NOT be representative across all Z. The relationship between X and Y is different at different (levels|value) of Z.
In moderation analysis, X and Y are correlated, but if a Z variable (the moderator variable) is thrown in with the product term, X and Y aren't correlated any-more for all values of Z.
In moderation, the predictors are correlated.
If both X and Z are continuous:
<math> Y = B_0 + B_1X + B_2Z + B_3(X*Z) + e </math>
where:
Adding the product of X and Z permit to trick the GLM in order to test no linear effect. As it is a product, it's testing a non-additive effect. If the product is significant, that's suggest that we have a moderation effect.
If X is categorical (with 3 levels) and Z is continuous:
<math> Y = \underbrace{B_0 + B_1D_1 + B_2D_2 + B_3Z}_{\displaystyle \text{Main Effect}} + \underbrace{B_4(D_1*Z) + B_5(D_2*Z)}_{\displaystyle \text{Moderation Effect Testing}} + e </math>
where:
Because we have 3 levels of X, we need two products in order to represent moderations.
Evidence for a “significant” moderation effect can be detected by:
When we're looking at a moderation regression analysis, we're looking at the predicted difference in slopes, not at the predicted difference in means. If there's a significant difference in the slope for one of the nominal value of a variable, that is an evidence of moderation.
Comparison of models is done in terms of the overall variance explained in the outcome. R square.
An NHST in R (anova) does that in order to make the statement that there's a statistically significant change in the overall variance explained when adding in the moderator. I the p value is < 0.05, there's a significant difference in the amount of variance that the two models explain.
Evaluate the regression coefficient (B) values for predictors associated with the moderation effect

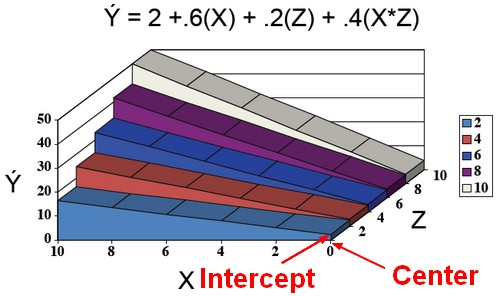

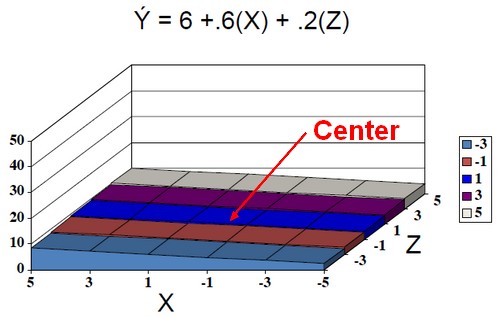

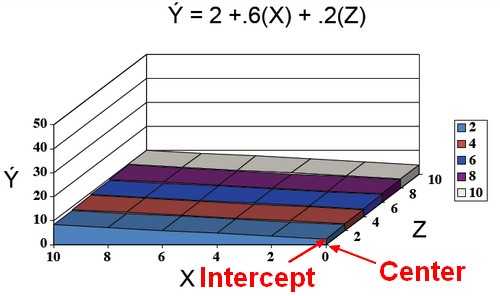

Centering predictors make interpreting the results of a moderation analysis, much simpler. Centering is essential when doing a moderation analysis.
Centering predictors means take your predictor variable and put it into deviation form. That is just create deviation scores, instead of the raw scores.
The deviation form gives us an average for a single predictor, x that's equal to zero.
If we have moderation then the correlations change as a function of the nominal variable.

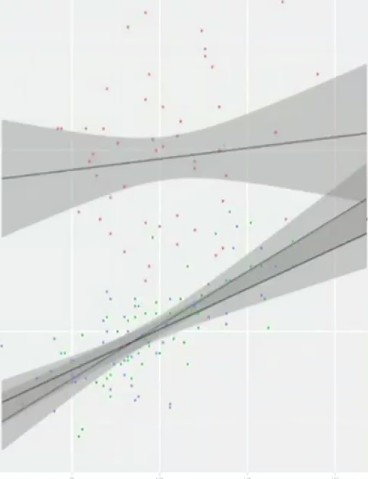

By plotting one scatter-plots by nominal value, we can see this correlations through the regression line.
The fact that the regression lines are not parallel, is evidence that you have moderation. If they're parallel, that indicates that you don't have moderation. Because that indicates that the effect is consistent across all nominal values. When it's inconsistent across the nominal values, that's moderation.

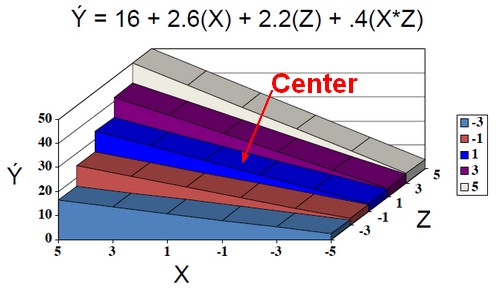

Within the moderation effect, notice that after centering, only the slope of the higher order term that is, the product term (XZ) did not change, the others did.
This slope won't change because that's what's most critical in the regression tellnig you that you have a moderation effect.
The lower order terms (the slope who changes) aren't reliable across all values of the other variables because they change.
The nice thing about centering is that when I center it's giving the slope relating X to Y at an average level of Z.
