JSF - Dynamic Data Table (With Facelet and Dynamic SQL)

About

How to create a dynamic JSF data table with a facelet page ?

Example made with:

JSF 2.0
JDK 1.6 (J2EE 6)
on Glassfish
with NetBeans 7.1

Articles Related

Steps

The Facelet Page

The facelet page just need a place holder to include the dynamic table generation made with the managed bean such as:

<h:panelGroup binding="#{datatableManagedBean.dynamicDataTableGroup}" />

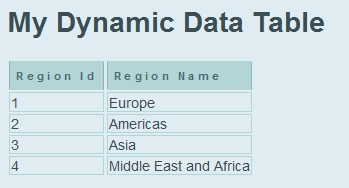

Below a complete example made with the Style Sheet of Netbeans JSF CRUD application generator.

<?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:h="http://java.sun.com/jsf/html">
    <h:head>
        <title>My Dynamic Data Table</title>
        <h:outputStylesheet name="css/jsfcrud.css"/>
    </h:head>
    <h:body>
        <h1>
            My Dynamic Data Table
        </h1>
        <p>
            <h:form styleClass="jsfcrud_list_form">
                <h:panelGroup binding="#{datatableManagedBean.dynamicDataTableGroup}" />
            </h:form>
        </p>
    </h:body>
</html>

The Managed Bean

package dynamic.jsf;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import javax.el.ELContext;
import javax.el.ExpressionFactory;
import javax.el.ValueExpression;
import javax.faces.bean.ManagedBean;
import javax.faces.bean.SessionScoped;
import javax.faces.component.html.HtmlColumn;
import javax.faces.component.html.HtmlDataTable;
import javax.faces.component.html.HtmlOutputText;
import javax.faces.component.html.HtmlPanelGroup;
import javax.faces.context.FacesContext;

/**
 *
 * @author gerard
 */
@ManagedBean(name = "datatableManagedBean")
@SessionScoped
public class DynamicDataTableManagedBean {

    // Init --------------------------------------------------------------------------------------

    private static List<List<String>> dynamicList; // Simulate fake DB.
    private static String[] dynamicHeaders; // Optional.
    private HtmlPanelGroup dynamicDataTableGroup; // Placeholder.

    // Actions -----------------------------------------------------------------------------------

    private void loadDynamicList() {

        // Set headers (optional).
        dynamicHeaders = new String[] {"Region Id", "Region Name"};

        // Set rows
        dynamicList = new ArrayList<List<String>>();
        dynamicList.add(Arrays.asList(new String[] { "1", "Europe" }));
        dynamicList.add(Arrays.asList(new String[] { "2", "Americas" }));
        dynamicList.add(Arrays.asList(new String[] { "3", "Asia" }));
        dynamicList.add(Arrays.asList(new String[] { "4", "Middle East and Africa"}));

    }

    private void populateDynamicDataTable() {

        // Context and Expression Factory
        FacesContext fCtx = FacesContext.getCurrentInstance();
        ELContext elCtx = fCtx.getELContext();
        ExpressionFactory ef = fCtx.getApplication().getExpressionFactory();

        // Create <h:dataTable value="#{datatableManagedBean.dynamicList}" var="dynamicRow">.
        HtmlDataTable dynamicDataTable = new HtmlDataTable();
        ValueExpression ve = ef.createValueExpression(elCtx,"#{datatableManagedBean.dynamicList}",List.class);
        dynamicDataTable.setValueExpression("value", ve);
        dynamicDataTable.setVar("dynamicRow");

        // Iterate over columns
        for (int i = 0; i < dynamicList.get(0).size(); i++) {

            // Create <h:column>.
            HtmlColumn column = new HtmlColumn();
            dynamicDataTable.getChildren().add(column);

            // Create <h:outputText value="dynamicHeaders[i]"> for <f:facet name="header"> of column.
            HtmlOutputText header = new HtmlOutputText();
            header.setValue(dynamicHeaders[i]);
            column.setHeader(header);

            // Create <h:outputText value="#{dynamicRow[" + i + "]}"> for the body of column.
            HtmlOutputText output = new HtmlOutputText();
            ve = ef.createValueExpression(elCtx, "#{dynamicRow[" + i + "]}", String.class);
            output.setValueExpression("value", ve);
            column.getChildren().add(output);

        }

        // Add the datatable to <h:panelGroup binding="#{datatableManagedBean.dynamicDataTableGroup}">.
        dynamicDataTableGroup = new HtmlPanelGroup();
        dynamicDataTableGroup.getChildren().add(dynamicDataTable);

    }

    // Getters -----------------------------------------------------------------------------------

    public HtmlPanelGroup getDynamicDataTableGroup() {
        // This will be called once in the first RESTORE VIEW phase.
        if (dynamicDataTableGroup == null) {
            loadDynamicList(); // Preload dynamic list.
            populateDynamicDataTable(); // Populate editable datatable.
        }

        return dynamicDataTableGroup;
    }

    public List<List<String>> getDynamicList() {
        return dynamicList;
    }

    // Setters -----------------------------------------------------------------------------------

    public void setDynamicDataTableGroup(HtmlPanelGroup dynamicDataTableGroup) {
        this.dynamicDataTableGroup = dynamicDataTableGroup;
    }

}
