SQL Engine - Row source generator

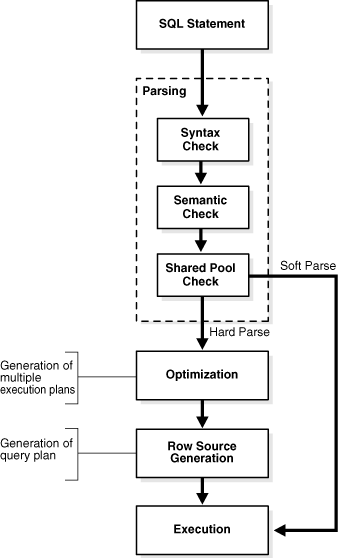

Oracle Database Sql Processing

About

The row source generator performs the row source generation steps of an SQL processing. It receives the optimal execution plan from the optimizer and produces an iterative plan, called the query plan, that is usable by the rest of the database.

Oracle Database Sql Processing

The iterative plan is a binary program that, when executed by the SQL virtual machine, produces the result set.

The query plan takes the form of a combination of steps. Each step returns a row set. The rows in this set are either used by the next step or, in the last step, are returned to the application issuing the SQL statement.

Row Source

Definition

A row source is a row set returned by a step in the execution plan along with a control structure that can iteratively process the rows.

The row source can be:

  • a table,
  • view,
  • or result of a join
  • or grouping operation.

Tree

The row source generator produces a row source tree, which is a collection of row sources. The row source tree shows the following information:

  • An ordering of the tables referenced by the statement
  • An access method for each table mentioned in the statement
  • A join method for tables affected by join operations in the statement
  • Data operations such as filter, sort, or aggregation

The example below shows the execution plan of a SELECT statement when AUTOTRACE is enabled. The statement selects the last name, job title, and department name for all employees whose last names begin with the letter A. The execution plan for this statement is the output of the row source generator.

SELECT e.last_name, j.job_title, d.department_name
FROM   hr.employees e, hr.departments d, hr.jobs j
WHERE  e.department_id = d.department_id
AND    e.job_id = j.job_id
AND    e.last_name LIKE 'A%' ;
Execution Plan
----------------------------------------------------------
Plan hash value: 975837011

---------------------------------------------------------------------------------------------
| Id  | Operation                     | Name        | Rows  | Bytes | Cost (%CPU)| Time     |
---------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT              |             |     3 |   189 |     7  (15)| 00:00:01 |
|*  1 |  HASH JOIN                    |             |     3 |   189 |     7  (15)| 00:00:01 |
|*  2 |   HASH JOIN                   |             |     3 |   141 |     5  (20)| 00:00:01 |
|   3 |    TABLE ACCESS BY INDEX ROWID| EMPLOYEES   |     3 |    60 |     2   (0)| 00:00:01 |
|*  4 |     INDEX RANGE SCAN          | EMP_NAME_IX |     3 |       |     1   (0)| 00:00:01 |
|   5 |    TABLE ACCESS FULL          | JOBS        |    19 |   513 |     2   (0)| 00:00:01 |
|   6 |   TABLE ACCESS FULL           | DEPARTMENTS |    27 |   432 |     2   (0)| 00:00:01 |
---------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   1 - access("E"."DEPARTMENT_ID"="D"."DEPARTMENT_ID")
   2 - access("E"."JOB_ID"="J"."JOB_ID")
   4 - access("E"."LAST_NAME" LIKE 'A%')
       filter("E"."LAST_NAME" LIKE 'A%')
