Oracle Partition - Range partitioning (less than)

Card Puncher Data Processing


The table is partitioned by ranges of values from one (or more) columns.


See Reference Range Partition

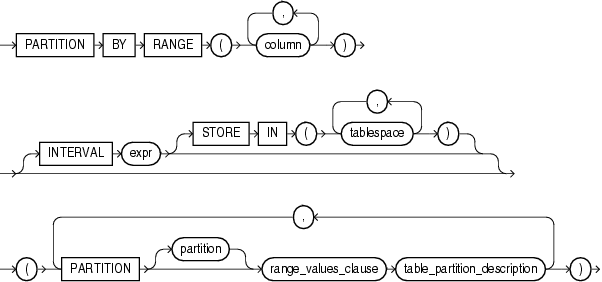

Oracle Range Partitions Syntax



For example, in a table of customer transactions called TRANS, you can range-partition it by:

  • using the TRANS_DT (transaction date) column as the partition key
  • so that:
    • a first partition holds records in which the TRANS_DT value is between January 1 and March 31, 2005;
    • the second partition holds records in which the TRANS_DT value is between April 1 and June 30; and so on.

The listing below creates this table:

-- Script for creating the TRANS table with range partitions
create table trans (
	trans_id	number,
	trans_dt	date,
	product_code	number,
	store_id	number,
	trans_amount	number(12,2)
partition by range (trans_dt)
  partition "y05q1" values less than (  to_date('04/01/2005','mm/dd/yyyy')  ) tablespace y05q1,
  partition "y05q2" values less than (  to_date('07/01/2005','mm/dd/yyyy')  ) tablespace y05q2,
  partition "y05q3" values less than (  to_date('10/01/2005','mm/dd/yyyy')  ) tablespace y05q3,
  partition "y05q4" values less than (  to_date('01/01/2006','mm/dd/yyyy')  ) tablespace y05q4,
  partition "pmax" values less than (maxvalue) tablespace users

The values of the predicate must be between parentheses

Discover More
Card Puncher Data Processing
Oracle Partition - Index (Local, Global)

You can create two types of indexes on partitioned tables: Usable: The index is partitioned in exactly the same way as the base table. For instance, you can create a local index on the...
Card Puncher Data Processing
Oracle Partition - Partitioning Scheme

Oracle Database provides many types of partitioning options, including: Range: , , ,

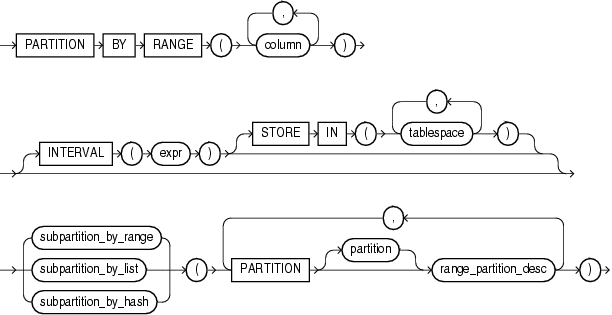

Oracle Composite Range Partitions
