Virtual Memory - Page (memory page|virtual page|chunk)

Card Puncher Data Processing


A page is the unit of data processed by paging.

In a virtual memory process, with an MMU, memory addresses go through a translation step prior to each memory access.

This means that memory address 123 might be directed to physical address 82043 at one time, and physical address 20468 another time. As it turns out, the overhead of individually tracking the virtual to physical translations for billions of bytes of memory would be too great.

Virtual Memory

Instead, the MMU divides RAM into page (known also as memory page or virtual page) which are contiguous sections of memory of a set size that are handled by the MMU as single entities.

Each pages (chunk) can have different states such as:

  • “empty”,
  • “in memory”,
  • or “on disk”.

In Linux, those chunks are typically 4Kb.



Shared page are shared between process. How many processes share is not known. See Virtual Memory - Shared Memory (SHM)



A memory page can be both in memory and on disk, and if you sum up everything in memory and everything on disk you will count the page twice.

Shared pages are even more complicated, as only the fact that they are shared is known. How many processes share is not known. If you sum up all the processes memory that is “in RAM” you will count the shared pages multiple times.


See Virtual Memory - Paging or Swapping


see page in


see Page Out


see Memory - Page Fault Exception

Documentation / Reference

  • Chapter 3, “Protected-Mode Memory Management,” in the Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3A.

Discover More
Card Puncher Data Processing
Application - Paging

Paging involves getting data in chunks of data called pages. Most of local application stores its data in memory; therefore, the amount of data it can hold is limited by the size of its memory. But by...
Card Puncher Data Processing
IO - Block (Batch on device)

A block is a unit of storage representing a fix number of bytes called the block size. It's also known as the minimum unit of transfer. It implements the concept of batch where data is organized into...
Card Puncher Data Processing
Instruction - Addressing Mode (Operand Addressing)

An addressing mode specifies how to calculate the real memory address of an instruction operand The term addressing mode is itself subject to different interpretations: either memory address calculation...
Linux - Page

page byte
Card Puncher Data Processing
Memory - Address Space

The range of memory that can be addressed is called an address space. It is the total number of uniquely-addressable memory locations Same as in memory. ? The whole set of physical address...

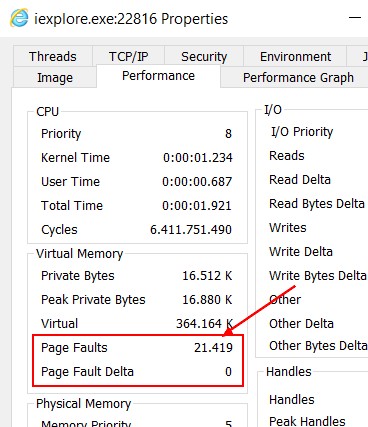

Page Fault Process Explorer
