Virtual Box - Hard Disk Inaccessible

About

When you want to start a virutalbox machine, you get an error message that say that hard disk are inaccessible.

The problem

Virtual box uses a hash key to determine uniquely an hard disk. This hash key doesn't match with the key saved in the XML metadata repository.

_

The solution

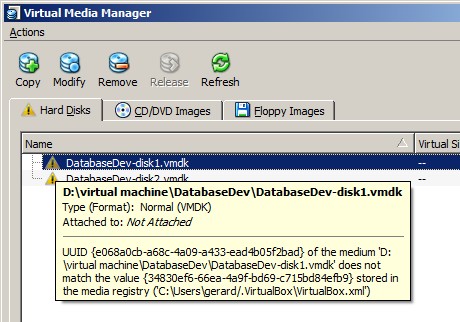

Get the UUID of the hard disk from the Virtual Media Manager as shown above and replace it in the file with a vbox extension.

<?xml version="1.0"?>
<!--
** DO NOT EDIT THIS FILE.
** If you make changes to this file while any VirtualBox related application
** is running, your changes will be overwritten later, without taking effect.
** Use VBoxManage or the VirtualBox Manager GUI to make changes.
-->
<VirtualBox xmlns="http://www.innotek.de/VirtualBox-settings" version="1.12-windows">
  <Machine uuid="{a52172d2-e964-42c0-824c-4d07bb2665be}" name="DatabaseDev" OSType="Linux" snapshotFolder="Snapshots"
   lastStateChange="2012-06-30T09:18:37Z">
    <Description>pwd: oracle/oracle</Description>
    <MediaRegistry>
      <HardDisks>
        <HardDisk uuid="{34830ef6-66ea-4a9f-bd69-c715bd84efb9}" location="DatabaseDev-disk1.vmdk" format="VMDK" type="Normal"/>
        <HardDisk uuid="{dd106a9c-d5ce-4f79-9ff1-26f29e1fde59}" location="DatabaseDev-disk2.vmdk" format="VMDK" type="Normal"/>
      </HardDisks>
      ...............
  </Machine>
</VirtualBox>

The UUID of this XML section must be changed.

<HardDisks>
    <HardDisk uuid="{e068a0cb-a68c-4a09-a433-ead4b05f2bad}" location="DatabaseDev-disk1.vmdk" format="VMDK" type="Normal"/>
    <HardDisk uuid="{dd106a9c-d5ce-4f79-9ff1-26f29e1fde59}" location="DatabaseDev-disk2.vmdk" format="VMDK" type="Normal"/>
</HardDisks>

If it doesn't work, use the VirtualBox manager to delete your machine (without the file) and recreate it.
