SSRS - Parameter

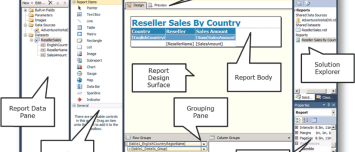

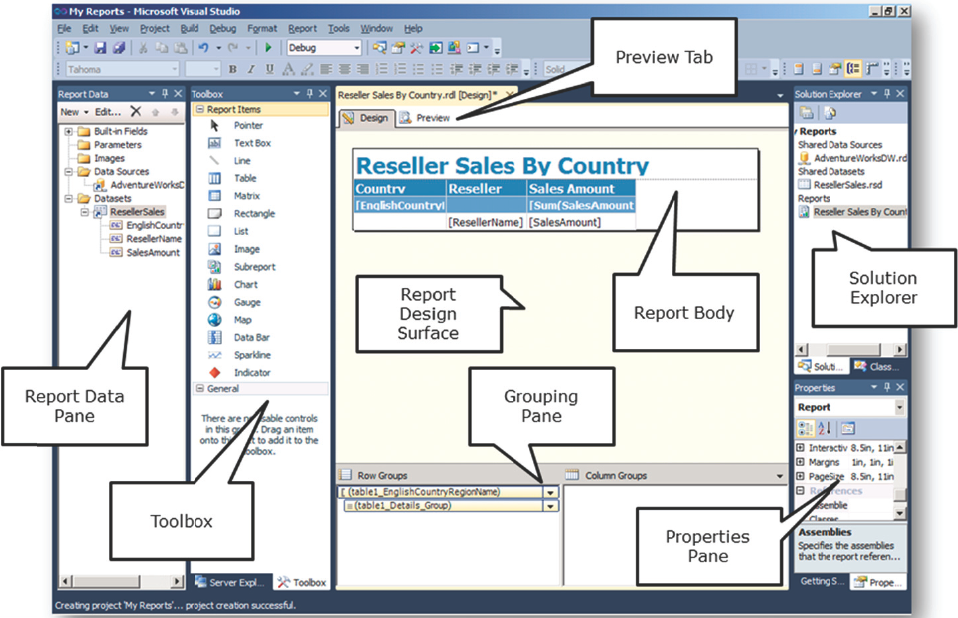

Ssrs Report Designer Pane


Parameters are use field.


Report Parameters are passed to a report when it is rendered. Report parameters can be specified by:

  • A user viewing the report interactively.
  • A setting in a report subscription that delivers reports automatically at a scheduled time.
  • A report that contains a parameterized subreport.

Report parameters can be mapped to dataset parameters to filter the report data.

Expression Syntax:




  • New > Parameter. The parameter will not be linked to the data set (ie unmapped)

Ssrs Add Parameter

  • Defining a data set query containing a parameter will create a parameter and link it to this data set

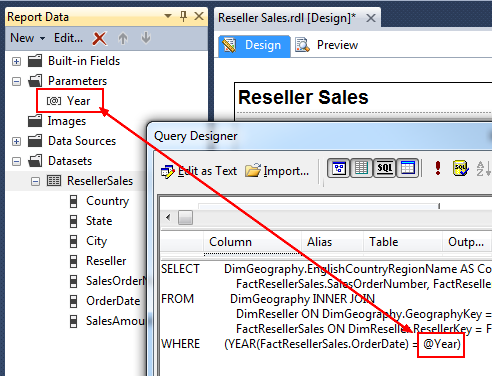

Ssrs Dataset Parameter


Multiple value

In case of a collection parameter (multiple value), the operator IN must be used in the data set

SELECT TrId, Amount
FROM Transactions
WHERE YEAR(transactionDate) IN (@Year)


Hidden and internal parameters are useful when:

  • the parameter value will be set programmatically by a client application
  • or when the report will always be used as a subreport and the parameter value will be specified in the parent report.

Data Filtering

Data region or group

Filter a data region or group

You can use a unmapped parameter to filter data in a tablix data region or chart by setting the Filter property to an expression that compares a dataset field value to the parameter value. The whole data set will be retrieved and after then the filtering will occur.


With a parametrized dataset, the retrieved data will be automatically filtered.

Parameters are specified in the query

For example, the following Transact-SQL query uses a parameter named @empName:

SELECT empName
FROM Employee
WHERE empName = @empName

Dataset parameters are mapped to report parameters.


Display a subreport by passing a parameter to show a parent-child hierarchy.

Discover More
Ssrs Report Designer Pane
SQL Server - Reporting Services (SSRS)

SQL Server Reporting Services (SSRS) is a platform for creating, publishing, and managing reports from Microsoft. SSRS competes with Crystal Reports, BI Publisher and other business intelligence tools,...

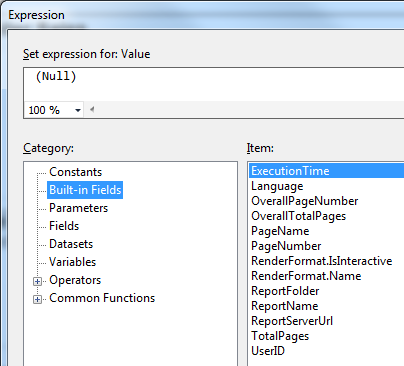

Ssrs Parameter System
