Installation of Apache on Windows 10 with Apache Lounge

Card Puncher Data Processing


This article is a succession of step by step that shows you how to install Apache on Windows.

This article was done with the following application version but the principe stays and should work with all version

  • Windows 10
  • Apache 2.4


Download the binary

The Apache project does not provide the Windows binary.

The download php page recommends to use apachelounge because they use their binaries to build the Apache SAPIs.

Download the last binary at apachelounge

  • VC15 stands for Visual Studio Compiler Version 15
  • VS16 for Visual Studio 16

Unzip and move

  • Unzip it (The file readme_first.html is the installation guide and is summarized below)
  • Copy the file to

Add the php home directory path into the user and system path

On windows, from 7.4, the sqlite extension needs to get access to the libsqlite3.dll that is located into the php directory.

If you are running the service with the system path, you should add the php home directory in the system path.

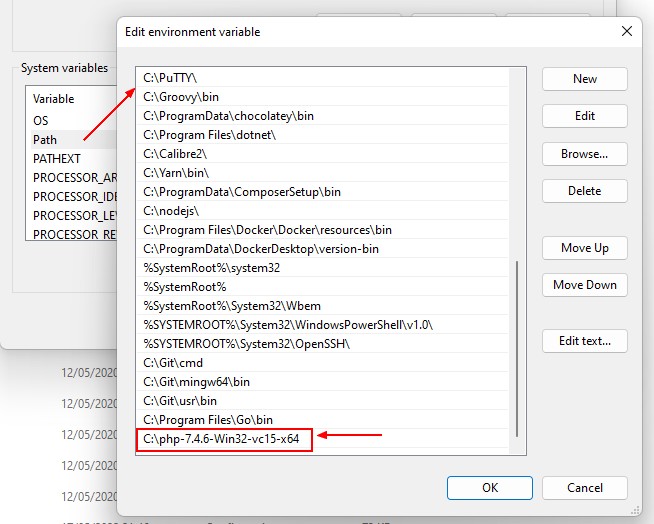

Php Home Path System User

Create the service

  • Start the command prompt as admin
  • Install the service and start it with the httpd binary
cd C:\Apache24\bin
httpd -k install
httpd -k start

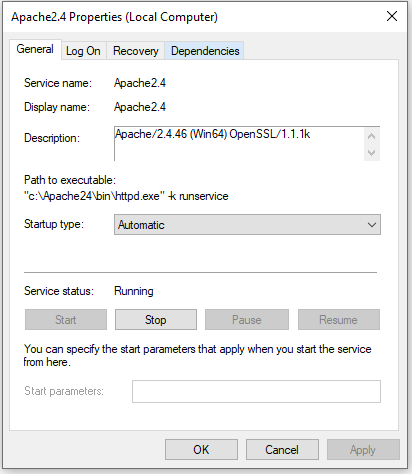

Apache Service Windows

  • A welcome page should also be seen at http://localhost. This page is located at: C:\Apache24\htdocs

There is more options. See the documentation


Server Name

To get access to the main server:

ServerName local

Rewrite Module

The rewrite module permits to have nice url and is generally used.

Uncomment the line

LoadModule rewrite_module modules/

Virtual host

Add virtual host

ServerName serverName

# Virtual Host
Include conf/extra/httpd-vhosts.conf


Add php as module of Apache in the httpd.conf file

On Windows, to be able to load the intl extension (localization), you need also to add the ICU file. In the documentation, they said that you can also set them on the LD_LIBRARY_PATH.

LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icudt64.dll"
LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icuin64.dll"
LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icuio64.dll"
LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icuuc64.dll"


LoadModule php7_module "C:/php-7.2.28-Win32-VC15-x64/php7apache2_4.dll"
AddType application/x-httpd-php .php
# configure the path to php.ini
PHPIniDir "C:/php-7.2.28-Win32-VC15-x64"

<Directory "C:/php-7.2.28-Win32-VC15-x64/" >
    AllowOverride None
    Options None
    Require all granted


If you want to boost your performance, FastCGI is the way to go. See this article that shows how to install it


PHP Startup: Unable to load dynamic library 'intl'

If you get this error in the log:

php -m
  • If this is the case, the root cause if mainly that the icu file as explained in the documentation where not found. They are all located in the php directory, you can add them into the Apache process space with the LoadFile directive as shown in the php section
LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icudt64.dll"
LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icuin64.dll"
LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icuio64.dll"
LoadFile  "C:\php-7.2.28-Win32-VC15-x64\icuuc64.dll"

Module not loading

For whatever reason, Apache locates the extension directory from the working directory. In the php.ini, be sure to put the qualified path.

extension_dir = "c:\php-7.2.28-Win32-VC15-x64\ext"

Sqlite module not loading

Be sure to add your php home directory into the user/system path that runs Apache. See bug 78957

Documentation / Reference

Discover More
Card Puncher Data Processing
(Apache|Oracle HTTP Server|Oracle Web Cache) (httpd)

Apache is a web server. The executable is httpd. This section regroups some article such as: a manual installation on Windows with php How to add virtual host or rewrite URL to configuration...

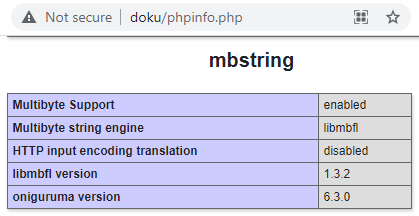

Phpinfo Mbstring Enabled
