Dokuwiki - Dev environment Configuration and Installation


This is the installation and configuration of the dokuwiki development platform on Windows that we use.

No container anymore

We are not working with WSL or any docker anymore because it causes too much pain for little improvement. ie:

  • slow. Docker with the last WSL2 is really, really slow if you don't work in WSL
  • two environment to manage:
    • two composer,
    • two different EOL
  • file permission problem between linux and windows
  • difficult to set up (IDEA does not support entirely WSL, phpunit does not recognize map drive, …)
  • network problem between the virtual container and windows

This is a sort of keep it simple by staying with the smallest tech stack as possible.


Install php

The PHP version is the lowest supported by Dokuwiki which is 7.2 (See splitbrain/dokuwiki/blob/stable/.travis.yml) This is also the lowest version supported by webhosting provider such as OVH.

For the version 7.2:

php.exe -i > phpinfo.txt

PATH Environment variable

Add in the PATH the php directory




  • Change the php.ini configuration
; some compilation needs the whole path for the extension dir
; extension_dir = "c:/php-7.2.28-Win32-VC15-x64/ext"
; some compilation (ie apache.dll) does not need the extension dir (ie 7)
; extension_dir = "ext"
; for image
; for composer
; openssl (ie fopen(): Unable to find the wrapper "https" - did you forget to enable it when you configured PHP?)
; for locale

You can check if they are loaded with:

php -m

and with apache via a phpinfo web page:

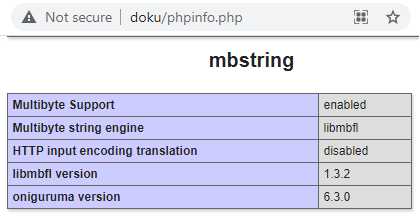

Phpinfo Mbstring Enabled


This section is a summary of the article Xdebug for php 7.2

To enable Xdebug on a dokuwiki devel computer:

  • Download Xdebug. For php 7.2: php_xdebug-2.9.4-7.2-vc15-x86_64.dll
  • Modify php.ini
# enable profiler
xdebug.profiler_enable = 0;
xdebug.profiler_enable_trigger = 1
xdebug.profiler_output_dir = "<path to output folder>"
xdebug.profiler_output_name = cachegrind.out.%t-%s


cd yourProject
wget -O phpunit.phar

Package Manager



Install Apache

Apache installation, virtual host and php configuration

Create the virtual host to the dokuwiki root.


<VirtualHost *:80>
    DocumentRoot "d:/dokuwiki"
    ServerName doku
	DirectoryIndex index.php
    ErrorLog "logs/"
    CustomLog "logs/" common
	<Directory "d:/dokuwiki/" >
		Require all granted
		AllowOverride All
		Options Indexes FollowSymLinks Includes ExecCGI


Clone Dokuwiki

You need to clone it in order to get the dokuwiki test class.

git clone git:// .


Go to: http://VitrualHost/install.php to configure it

  • Enable ACL - Yes - to test logged in and logged out
  • ACL Policy: Public

Go to the configuration manager:

  • debug your code with compress disabled. You can verify your code still works with compress enabled with the JSLint online service
  • Cache: Disable the whole render cache by setting the cache page time to -1. See Dokuwiki - Cache Dev configuration
  • Verify that the index.php doesn't have a redirection.
  • Don't set the basurl to be able to test with ngrok. (ie google metadata checking tool does not allow localhost)

Install Stale

Install Stale to stale the cache easily.

Because we are the authors, we clone it.

cd $DOKUWIKI\lib\plugins
git clone


See also the dokuwiki documentation


Set the php interpreter to 7.1

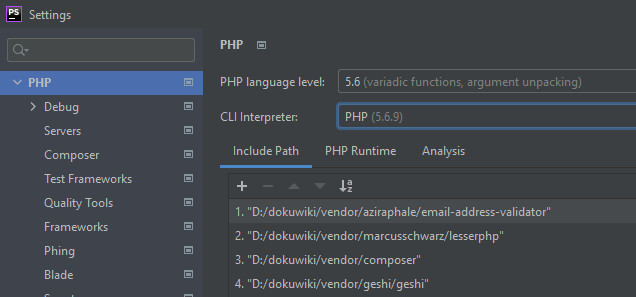

Php Interpreter Idea

Unit test

To run individual test file on plugin:

  • add the configuration file

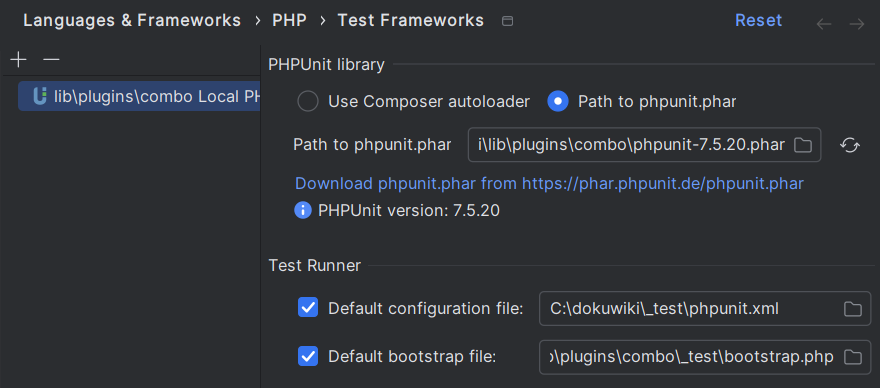

Dokuwiki Phpunit Idea

  • set the _test directory as Test Source. Context menu option Mark directory As Test Source Root
  • A class/method: add the option –stderr to the test runner options to avoid PHPUnit_Framework_Error_Warning : Cannot modify header information - headers already sent by (output started at …php\pear\PHPUnit\Util\Printer.php:172)

Phpunit Idea Stderr

  • Change the running template

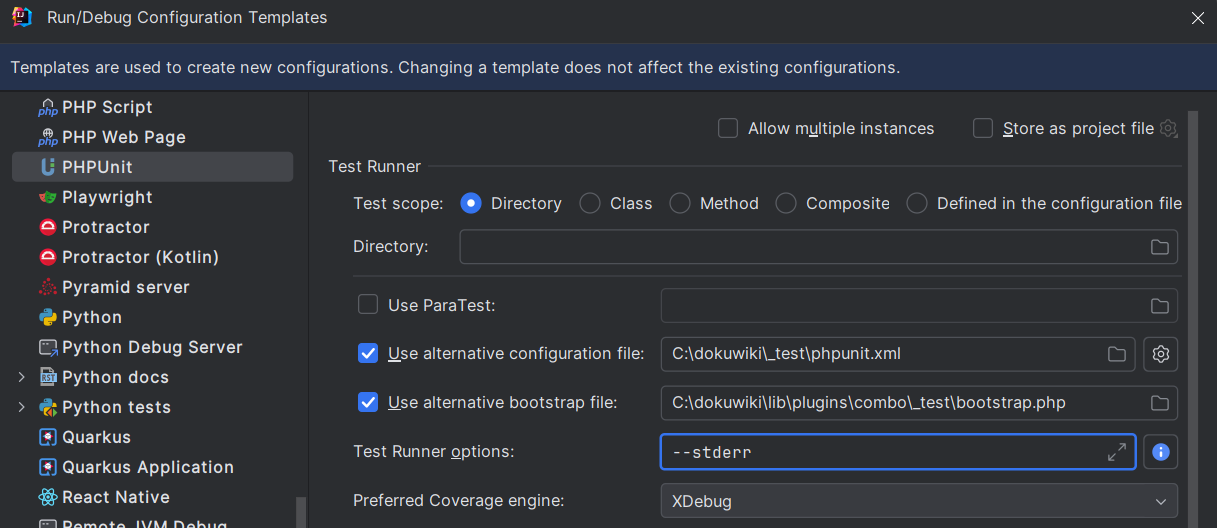

Phpunit Template Idea

  • For Combostrap developer: set the alternative bootstrap file to \plugins\combo\_test\bootstrap.php


Add Jquery as library:

  • Settings (CTRL + ALT + S) > Languages & Frameworks > JavaScript > Libraries (Enabled or Download Jquery)


Disable the cache in devtool

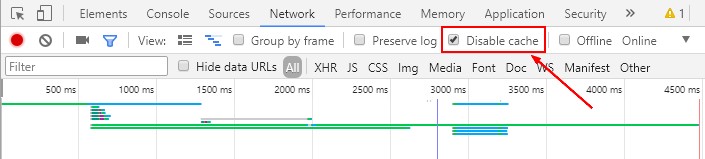

Chrome Disable Cache


Call to undefined function dokuwiki\Utf8\mb_strtolower()

  • Enable the mbstring extension in your php.ini
  • And if you have the extension_dir setup, try to comment it
; extension_dir="ext"
