Memory Segment - Logical Address (pointers)

About

To address a byte in a segmented model, a program uses an address called a logical address

Logical addresses are often referred to as pointers.

Syntax

Segment-register:Byte-address

where:

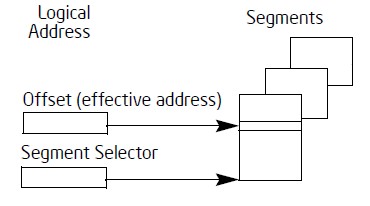

Logical Address Segment

Example

  • The following segment address identifies the byte at address FF79H in the segment pointed by the DS register
DS:FF79H

CS:EIP
