Subversive - SVN with Eclipse Installation

Card Puncher Data Processing


How to install the plugin Subversive of Eclipse to manage a Svn (Subversion) repository.



  • Go to menu > Help > Install New Software
  • Select the Galileo update url
  • Select the Subversive options in the Collaborative node

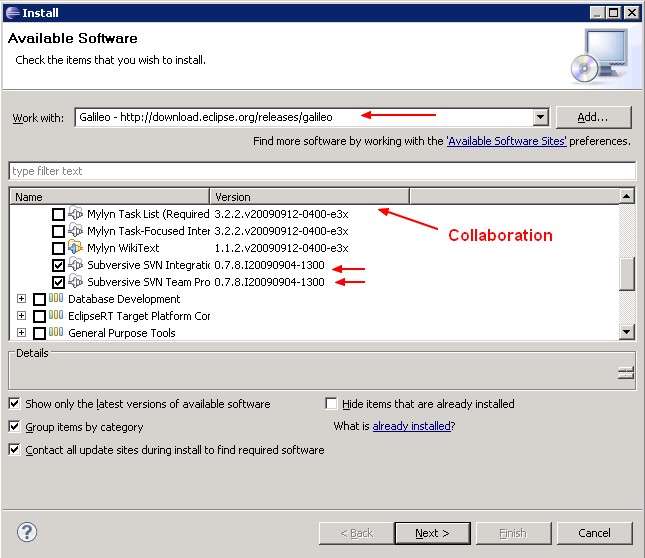

Eclipse Subversive Install Checkbox

  • Click Next, Finish and restart
  • A screen appear asking you to install the SVN Kit that pass to you. I choose the SVN Kit 1.3.0 All Plateform
  • Restart

Don't forget to restart after the installation of the SVN Kit

Add a repository

To add a SVN repository, you must :

  • open the SVN Repository Exploring (Eclipse > Windows > Open Perspective).
  • right click in the SVN Repositories Panel
  • New > Repository Location

You may have two differents Perspective with the same name if another SVN plugin is installed. You can see the difference between the two plugin in the picture below

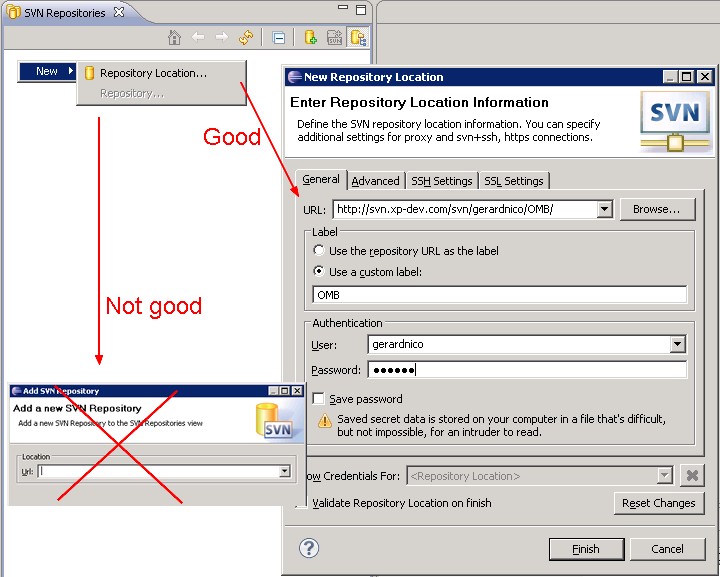

Eclipse Subversion Add Repository

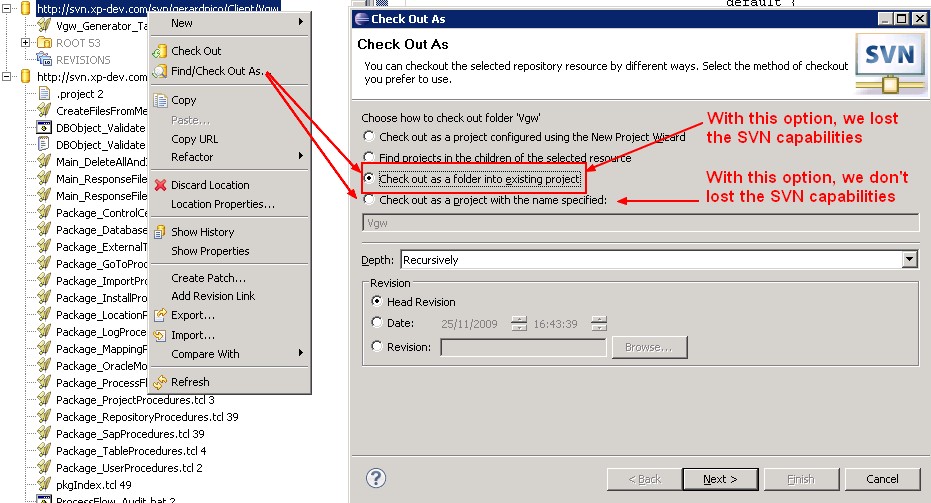

Check out as

Eclipse Subversive Check Out As

Commit / Update …

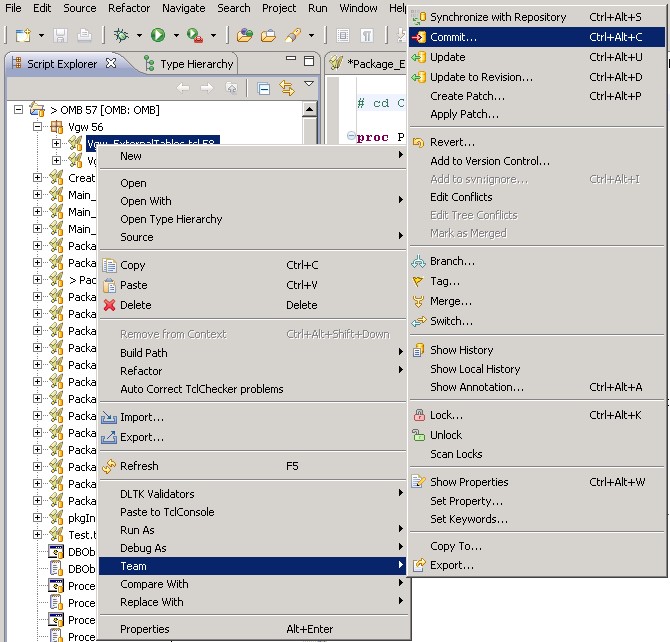

Eclipse Subversive Commit Update

Discover More
Card Puncher Data Processing

Workspace log : workspace/.metadata/.log. Configuration log : configuration/ -console : Open eclipse with a console -consoleLog : prohibit the plug-ins to silently log entries to the log file -debug...

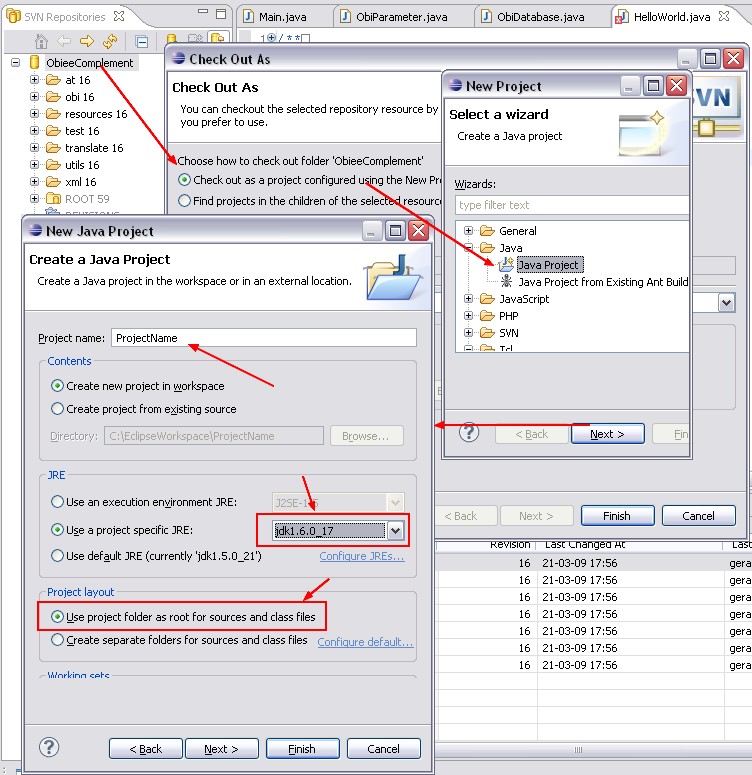

Eclipse Check Out Obiee Complement
