Aws - Modern Web App Workshop
Table of Contents
About
Note about the Aws project Build a Modern Web Application
Steps
git clone -b python https://github.com/aws-samples/aws-modern-application-workshop.git
cd aws-modern-application-workshop
:: Taking the python code
git checkout python
Create the bucket
aws s3 mb s3://web-app-modern
Create a static web hosting with cloudfront
Create a static web hosting with cloudfront from this bucket
- set the index document
aws s3 website s3://web-app-modern --index-document index.html
- create an origin access identity and save the id
aws cloudfront create-cloud-front-origin-access-identity --cloud-front-origin-access-identity-config CallerReference=Mysfits,Comment=Mysfits
- create a bucket policy by replacing the previous origin-access-identify id in website-bucket-policy.json
aws s3api put-bucket-policy --bucket web-app-modern --policy file://module-1/aws-cli/website-bucket-policy.json
- Create a cloudfront distribution by replacing the origin-access-id in website-cloudfront-distribution.json
aws cloudfront create-distribution --distribution-config file://module-1/aws-cli/website-cloudfront-distribution.json
- Note the domain name from the create-distribution output. Example: http://dyxppm3sqxwc9.cloudfront.net/ This is the Website base URL
- Copy the index.html file
aws s3 cp module-1/web/index.html s3://web-app-modern/index.html

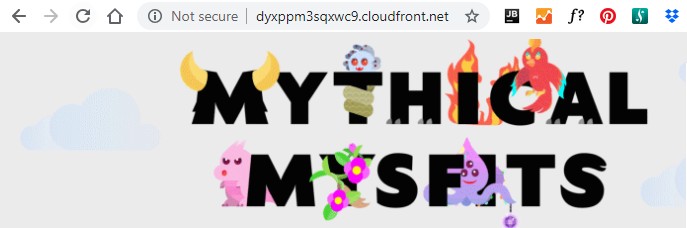

- Go to the website https://dyxppm3sqxwc9.cloudfront.net/
Create the API
Build the container
- Docker build that packages a Python flask web app
cd module-2\app
docker build . -t REPLACE_ME_AWS_ACCOUNT_ID.dkr.ecr.REPLACE_ME_REGION.amazonaws.com/mythicalmysfits/service:latest
- Run it to test
docker run -p 8080:8080 REPLACE_ME_WITH_DOCKER_IMAGE_TAG
Push the Docker Image to Amazon ECR
- Creates a new repository in the default AWS ECR registry of the Aws account.
aws ecr create-repository --repository-name mythicalmysfits/service
- authentication credentials for the Docker client (in order to push container images into the new repository)
aws ecr get-login --no-include-email
:: execute the output
# in bash
$(aws ecr get-login --no-include-email)
- push the image you created to the ECR repository
docker push REPLACE_ME_WITH_DOCKER_IMAGE_TAG
- list the images
aws ecr describe-images --repository-name mythicalmysfits/service
Create a cluster
- create a cluster in the Amazon Elastic Container Service (ECS).
aws ecs create-cluster --cluster-name MythicalMysfits-Cluster
Create a log group
- Create a new log group in AWS CloudWatch Logs for the container logs to be pushed to. This is especially important when using AWS Fargate since you will not have access to the server infrastructure where your containers are running.
aws logs create-log-group --log-group-name mythicalmysfits-logs
Register an ECS Task Definition
Register an ECS task definition. Example: Aws - Elastic Container Service (Ecs)
aws ecs register-task-definition --cli-input-json file://module-2/aws-cli/task-definition.json
Load balancer
Create a Network Load Balancer
- Provisioning of a Network Load Balancer (NLB) to sit in front of the services
aws elbv2 create-load-balancer ^
--name mysfits-nlb ^
--scheme internet-facing ^
--type network ^
--subnets REPLACE_ME_PUBLIC_SUBNET_ONE REPLACE_ME_PUBLIC_SUBNET_TWO ^
> %HOME%/environment/nlb-output.json
Keep the output to extract:
- the DNSName,
- VpcId,
- and LoadBalancerArn
Create a Load Balancer Target Group
Create an NLB target group. You get back a TargetGroupArn.
aws elbv2 create-target-group ^
--name MythicalMysfits-TargetGroup ^
--port 8080 ^
--protocol TCP ^
--target-type ip ^
--vpc-id REPLACE_ME_VPC_ID ^
--health-check-interval-seconds 10 ^
--health-check-path / ^
--health-check-protocol HTTP ^
--healthy-threshold-count 3 ^
--unhealthy-threshold-count 3 ^
> %HOME%/environment/target-group-output.json
Create A Load Balancer Listener
Create a load balancer listener for the network load balancer
A load balancer listener configure the forwarding of requests received on a specific port to targets that have registered to the target group.
aws elbv2 create-listener ^
--default-actions TargetGroupArn=REPLACE_ME_NLB_TARGET_GROUP_ARN,Type=forward ^
--load-balancer-arn REPLACE_ME_NLB_ARN ^
--port 80 ^
--protocol TCP
Create a service with Fargate
Steps:
- Create a service
aws ecs create-service --cli-input-json file://module-2/aws-cli/service-definition.json
- Test the service with the DNS Name of the load balancer. (This Network Load Balancer only supports HTTP ) Example
http://mysfits-nlb-123456789-abc123456.elb.us-east-1.amazonaws.com/mysfits
