Map Reduce (MR) Framework

Card Puncher Data Processing

About

Map reduce is a distributed execution What is a framework ?.

The MapReduce programming model (and a corresponding system) was proposed in a 2004 paper from a team at Google as a simpler abstraction for processing very large datasets in parallel.

Map-reduce is a high-level programming model and implementation for large-scale parallel data processing.

Parallel processing pattern

Map reduce is a lead up of parallel processing.

All distributed algorithm can be expressed with this two times items.

The Map and Reduce functions are executed serially. All operations in the Map phase complete before the operations in the Reduce phase start.

Each machine can execute 100 map tasks, which gives a decent amount of parallelism without wasting resources.

When implementing Map reduce, parallel happen for free.

MapReduce is a lightweight framework, providing:

  • Automatic parallelization and distribution
  • I/O scheduling
  • Status and monitoring

Map reduce is deployed for really really large clusters more than 10

Because there was no open-source parallel database at the time, the open-source implementation of Map Reduce was a good alternative to expensive parallel database implementations. Map Reduce became extremely popular even though parallel databases did exist when it was first introduced.

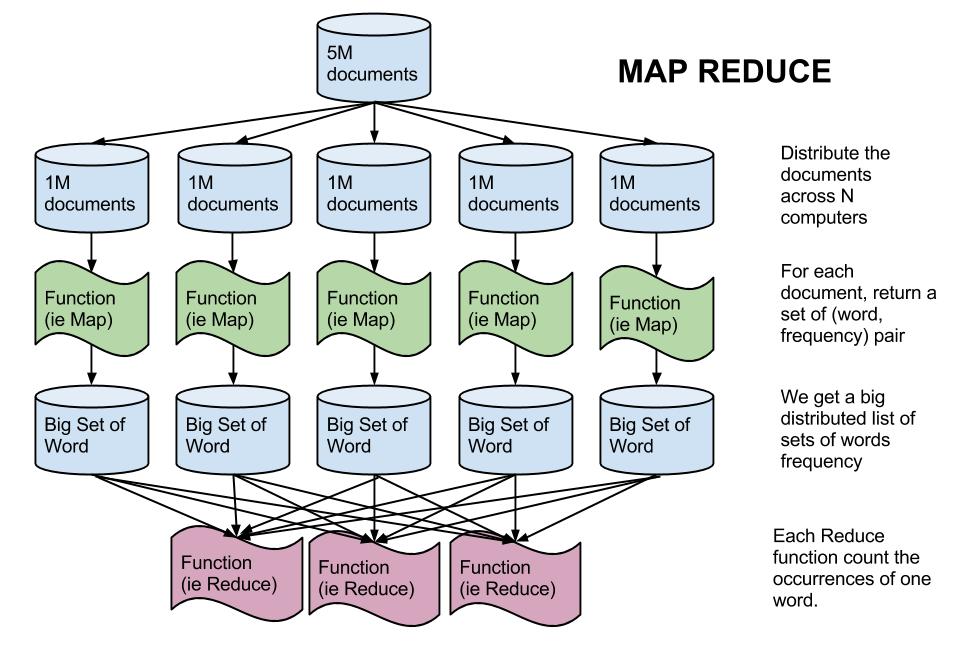

Map Reduce One Picture

Data Model

Files !

A file = a bag of (key, value) pairs

A map-reduce program:

  • Input: a bag Of (input_key, value) pairs
  • Output: a bag of (output_key, value) pairs

A machine must be able to process the key-value pairs in main memory for the Map Reduce framework to function effectively.

Map Reduce At Home

Cons/Pros

Pros

Designed to:

  • leverage parallelism
  • scale on thousand of commodity computer
  • leverage Fault-tolerance to prevent unreliable hardware

And can then:

  • process large files
  • provide maximize throughput of large scans
  • provide an inexpensive processing capacity

Framework:

  • Flexible development platform
  • Solution Ecosystem
  • Load data first, structure later

Pattern

There’s a pattern ….

  • A function that maps a read to a trimmed read
  • A function that maps a TIFF image to a PNG image
  • A function that maps a set of parameters to a simulation result
  • A function that maps a document to its most common word
  • A function that maps a document to a histogram of word frequencies

Cluster Computing

  • Large number of commodity servers, connected by high speed, commodity network
  • Rack: holds a small number of sen/ers
  • Data center: holds many racks

Massive parallelism:

  • 100s, or 1000s, or 10000s servers
  • Many hours

Failure:

  • If mean-time-between-failure is 1 year
  • Then 10000 servers have one failure / hour

Distributed File System (DFS)

  • For very large files: TBs, PBs
  • Each file is partitioned into chunks, typically 64MB
  • Each chunk is replicated several times (>=3), on different racks, for fault tolerance

Implementations:

  • GoogIe’s DFS: GFS, proprietary
  • Hadoop’s DFS: HDFS, open source

Phase

Map Reduce Phases

Fault-tolerance

The Map Reduce framework provide fault tolerance during job execution.

For Map tasks, data is read from the file system (HDFS) as input and output to local storage. Reduce tasks read from local storage as input and output to the file system (HDFS). If a Reduce task fails, another Reduce task can still read the result of a Map task from local storage. If a Map task fails, it can still read input from the file system. If the system crashes after the Reduce task has finish, the data is already written to the file system. So there are multiple layers of data that we can fall back to in order to recover.

Data is stored after each phase of the Map Reduce framework, saving the output of Map tasks so if a Reduce task fails, it is not necessary to restart the Map task as well.

Task

The individual tasks in a Map Reduce job:

They can be restarted without changing the final result. Software Design - Recovery (Restartable)

These two properties mean that given the same input, re-executing a task will always produce the same result and will not change other state. So, the results and end condition of the system are the same, whether a task is executed once or a thousand times.

Example

Compute the word frequency across 5M Documents

Map Reduce

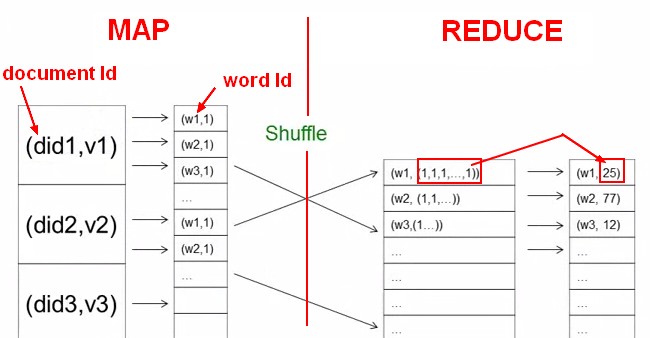

Map Reduce Word Count

The Map task categorizes and counts words for some fraction of a document or documents and passes these counts to the Reduce tasks. Each reduce task is given on count of a word and combines the count that are passed by the Map tasks.

Build an Inverted Index

Inverted index.

Simple Social Network Analysis: Count Friends

Simple social network dataset consisting of key-value pairs where each key is a person and each value is a friend of that person.

Algorithm Steps to count he number of friends each person has:

  • Input: Person A is friend with person B
Person A, Person B
Nico, Madelief
Madelief, Nico
Rixt, Nico
Nico, Rixt
Melissa, Rixt
Rixt, Melissa
Nico, Melissa
Melissa, Nico

  • Map Step: Pair with the person and the number of friend
Nico, 1
Madelief, 1
Rixt, 1
Nico, 1
Melissa, 1
Rixt, 1
Nico, 1
Melissa, 1

  • Shuffle step: All the value are grouped together
Nico, (1, 1, 1)
Madelief, (1)
Rixt, (1, 1)
Melissa, (1, 1)

  • Reduce Step: The calculation
Nico, 3
Madelief, 1
Rixt, 2
Melissa, 2

Relational Join: The order schema

The Map phase produces key-value pairs that have a key that is being joined on, then distributes the tuples to the Reducers where each Reducer is given only tuples with the same key. Because each Reducer has a only tuples with the same key that we are joining on, a cartesian product will produce the correct answer for the join.

In the parallel Relational Join the Reduce task is a cartesian product because each Reduce tasks holds all tuples from both relations that have the same key. Thus, every tuple from one relation can be joined to every tuple in the other relation on each Reduce task.

Key Idea: Lump all the tuples together into one data set.

Steps:

  • Input:
Order (OrderId, Account, Date)
1, Account1, d1
2, Account2, d2
3, Account3, d3

LineItem (OrderId, Product, Quantity)
1, 10, 1
1, 20, 3
2, 10, 5
2, 30, 10
3, 20, 2

  • Map Step: The key value pair is tagged with the relation name (ie Order or line)
Order
1, Account1, d1     -> 1 : ("Order", 1, Account1, d1)
2, Account2, d2     -> 2 : ("Order", 2, Account2, d2)
3, Account3, d3     -> 3 : ("Order", 3, Account3, d3)

LineItem
1, 10, 1            -> 1 : ("Line", 1, 10, 1)
1, 20, 3            -> 1 : ("Line", 1, 20, 3)
2, 10, 5            -> 2 : ("Line", 2, 10, 5)
2, 30, 10           -> 2 : ("Line", 2, 30, 10)
3, 20, 2            -> 3 : ("Line", 3, 20, 2)

  • Shuffle step: All the value are grouped together
1, (("Order", 1, Account1, d1), ("Line", 1, 10, 1), ("Line", 1, 20, 3))
2, (("Order", 2, Account2, d2), ("Line", 2, 10, 5), ("Line", 2, 30, 10))
3, (("Order", 3, Account3, d3), ("Line", 3, 20, 2))

  • Reduce Step: The join
For Key 1:
1, Account1, d1, 1, 10, 1
1, Account1, d1, 1, 20, 3
For key 2:
2, Account2, d2, 2, 10, 5
2, Account2, d2, 2, 30, 10
For key 3:
3, Account3, d3, 3, 20, 2

Matrix Multiplication

In map reduce, you can attach value to multiples key. Ie the value A[1,1] can be (send|emit) two times to calculate the output C[1,1] and C[1,2].

C = A x B
A has dimensions L, M
B has dimensions M, N
C will then have the dimension L, N

  • Map

For each element (i,j) of A, emit

Key = (i, k), value = A[i,j]

where k in 1…N

For each element (j,k) of B, emit

Key = (j, k), value = B[j,k]

where k in 1…L

  • Reduce: One reducer per output cell. In the reduce phase, emit:
    • Key = (i,k)
    • Value = Sum_j ( A[i,j] * B[j,k] )

Pseudo Code

Steps:

  • Map function example
// input_key: document name
// input_value: document contents
map(String input_key, String input_value):
for each word w in input_value:
    Emitlntermediate(w, n);
// Example of output
//    ("history", 5)
//    ("history", 3)
//    ("history", 1)
  • Combiner
// intermediate_key: word. Example "history"
// intermediate_values:  . Example: 1, 1, 1, ...
combine(String intermediate_key, Iterator intermediate_values)
   returns (intermediate_key, intermediate_value)

The combiner function can be the same than the reduce function. The function must be associative and commutative.

  • Reduce function example
// intermediate_key: word. Example "history"
// intermediate_values:  . Example: 5, 3, 1, ...
reduce(String intermediate_key, Iterator intermediate_values)
   int result = O;
   for each v in intermediate_values:
      result += v;
   EmitFinal(intermediate_key, result);

By reducing the number of key-value pairs output by the Map function, the number of key-value pairs that are passed to the Reduce machines is also reduced. Since machine doing the Map task and machines doing the Reduce task are usually connected over a network, this also reduces the amount of data transfer between machines.

Join

Three Special Join Algorithms

  • Replicated: One table is very small, one is big

Broadcast join and Replicated join are the same thing. They copy the small table to all node. The map tasks can perform the join locally and the output can just be merged for the result.

  • Skewed: When one join key is associated with most of the data
  • Merge: If the two datasets are already grouped/sorted on the correct attribute, the join can be computed in the Map phase

Skewed / Stragglers

This is the big performance problem of map/reduce job.

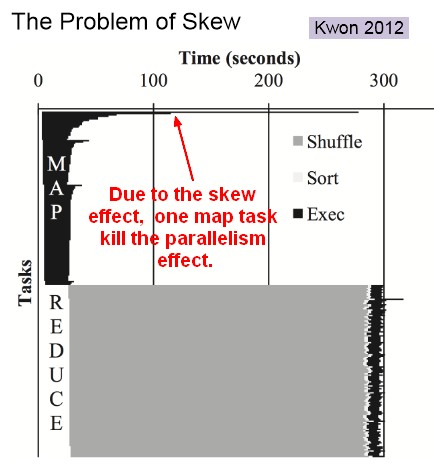

Map Reduce Join Skew

One response to this problem is to split the map task in several other map/reduce tasks.

MapReduce Extensions and Contemporaries

  • Pig Relational Algebra over Hadoop
  • HIVE (Facebook, available open source) - SQL over Hadoop
  • Impala Cloudera - SQL over HDFS; uses some HIVE code
  • Cascading - Relational Algebra
  • Crunch. Apache Hive and Apache Pig were built to make MapReduce accessible to data analysts with limited experience in Java programming. Crunch was designed for developers who understand Java and want to use MapReduce effectively in order to write fast, reliable applications

Map Reduce Vs RDBMS

  • Databases Key ideas: Relational algebra, physical/logical data, independence
  • MapReduce Key ideas: Fault tolerance, no loading, direct programming on “in situ” data

Examples of Map Reduce implementations implement declarative languages, schemas, indexing, and algebraic optimization, all of which are features of Relational Database Management Systems.  

Notion Map Reduce Implementation
RDBMS
Declarative query languages Pig, Hive
Schemas (Constraint) HIVE, Pig, DryadLINQ, Hadapt
Logical Data Independence (Notion of Views)
Indexing Hbase
Algebraic Optimization (Query Optimizer)
Caching/Materialized Views
ACID/Transactions (Notion of Recovery)
MapReduce
High Scalability
Fault-tolerance
One-person deployment

History

History Map Reduce

  • 1956-1979: Stanford, MIT, CMU, and other universities develop set/list operations in LISP, Prolog, and other languages for parallel processing (see http://www-formal.stanford.edu/jmc/history/lisp/lisp.html).
  • Circa 2004: Google: MapReduce: Simplified Data Processing on Large Clusters by Jeffrey Dean and Sanjay Ghemawat
  • Circa 2006: Apache Hadoop, originating from the Yahoo!’s Nutch Project Doug Cutting
  • Circa 2008: Yahoo! web scale search indexing - Hadoop Summit, Hadoop User Group
  • Circa 2009: Cloud computing with Amazon Web Services Elastic MapReduce (AWS EMR), a Hadoop version modified for Amazon Elastic Cloud Computing (EC2) and Amazon Simple Storage System (S3), including support for Apache Hive and Pig.
