JMeter - Source Configuration in (Eclipse|Intellij IDEA)

Card Puncher Data Processing

About

How to setup an (Eclipse|IDEA) environment to be able to develop with JMeter.

You have also a lot of eclipse information in the file eclipse.readme in the root of the source

Steps

Eclipse

  • Download the source (apache-jmeter-2.8_src.tgz)

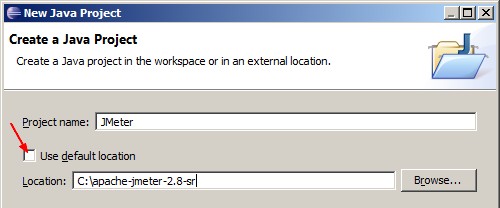

  • Create a new Eclipse project where the project directory is the base directory of the source

Jmeter Eclipse Project Path

  • Rename the file eclipse.classpath as .classpath in the project root directory
  • Start the Ant Task download_jars to download the jars in the lib directory
Buildfile: C:\apache-jmeter-2.8-src\build.xml
download_jars:
_process_all_jars:
_check_exists:
_check_jarfile:
     [echo] Checking bsf-2.4.0.jar
_get_jarfile:
     [echo] Fetching: lib/bsf-2.4.0.jar
      [get] Getting: http://repo2.maven.org/maven2/bsf/bsf/2.4.0/bsf-2.4.0.jar
      [get] To: C:\apache-jmeter-2.8-src\build\bsf-2.4.0.jar
...........

IDEA

  • Add the build.xml as Ant Build file
  • Start the download_jars Ant task

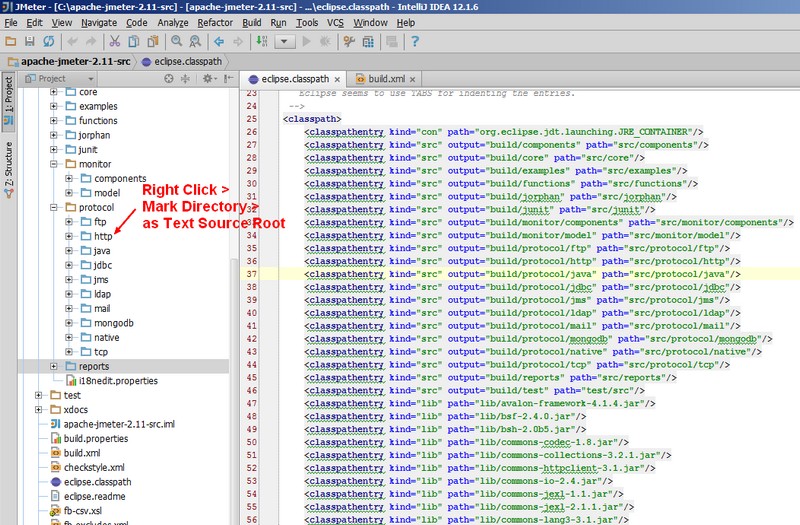

  • Mark the source directories listed in the eclipse.classpath file as text source code

Jmeter Idea Source

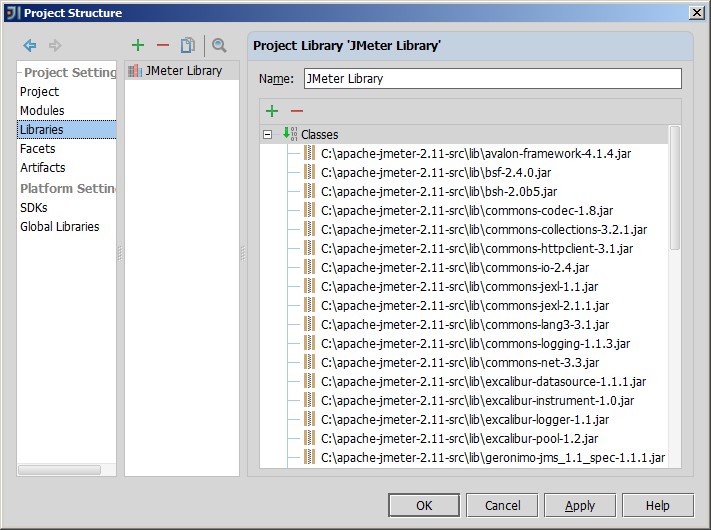

  • Select all the libraries listed in the eclipse.classpath file. Righ Click > Marked as library

Jmeter Idea Project Library

Main class

The main class is given in the Ant build.xml file. It creates a manifest with the Main-Class attribute.

<manifest>
     <attribute name="Main-Class" value="org.apache.jmeter.NewDriver"/>
</manifest>

Diagnostic

Logging level are in the bin/jmeter.properties file.

#Logging levels for the logging categories in JMeter.  Correct values are FATAL_ERROR, ERROR, WARN, INFO, and DEBUG
# To set the log level for a package or individual class, use:
# log_level.[package_name].[classname]=[PRIORITY_LEVEL]
# But omit "org.apache" from the package name.  The classname is optional.  Further examples below.

log_level.jmeter=INFO
log_level.jmeter.junit=DEBUG
#log_level.jmeter.control=DEBUG
#log_level.jmeter.testbeans=DEBUG
#log_level.jmeter.engine=DEBUG
#log_level.jmeter.threads=DEBUG
#log_level.jmeter.gui=WARN
#log_level.jmeter.testelement=DEBUG
#log_level.jmeter.util=WARN
#log_level.jmeter.util.classfinder=WARN
#log_level.jmeter.test=DEBUG
#log_level.jmeter.protocol.http=DEBUG
# For CookieManager, AuthManager etc:
#log_level.jmeter.protocol.http.control=DEBUG
#log_level.jmeter.protocol.ftp=WARN
#log_level.jmeter.protocol.jdbc=DEBUG
#log_level.jmeter.protocol.java=WARN
#log_level.jmeter.testelements.property=DEBUG
log_level.jorphan=INFO
