How to use FormData and send multipart-data in the Browser (Web API )?


FormData is a web api object that represent the data of a form that should be send if the form is submited.

Formdata Browser Devtool

Therefore if you have a checkbox that is not checked, formdata will not collect it.

You can create/build it and :

As javascript object, you will get a set of key/value pairs representing form fields and their values.

When send, the data is encoded in multipart/form-data encoding 1)

It's part of the XHR specification 2)


How to send a form data

  • via Ajax XHR: You can also just send it via a Xhr request
var request = new XMLHttpRequest();"POST", "");
let formData = new FormData(form);
fetch("/combo/api/v1.0/publication/subscription", {
     body: formData,
     cache: 'no-cache',
     method: "post",
     mode: 'no-cors',
     redirect: 'follow',
     credentials: 'same-origin'
  .then(response => console.log(response))

Build from the form

<form id="form1" onsubmit="handleSubmit(this); return false;">
<input name="user" type="text" value="Foo" />
<input name="age" type="number" value="10" />
<input name="button" type="submit" value="Let mee see the input data !" />

The FormData constructor takes a form element as parameter. See FormData constructor Specification

handleSubmit = (form) => {
  // build the formData object
  let formData =  new FormData(form);
  // retrieve the entries in a entries variable of iterator type
  let entries = formData.entries();
  // loop over the iterator
  let result =;
  while (!result.done) {
    console.log("Input: Name: "+result.value[0]+", value: "+result.value[1]);
    result =;
  • Result:




let formData = new FormData();
formData.append('username', 'foo');
formData.append('age', '10');
formData.append('tag', 'cool');
formData.append('tag', 'bar');

// You can't get all entries but you can get all values for one key


From a form, only successful form controls are included, i.e. those:

let formData =  new FormData(document.getElementById('form1'));

From a key-value object

const formData = new FormData();
Object.keys(data).forEach(key => formData.append(key, data[key]));


As iterator

The entries of a formData return an iterator.


let formData = new FormData();
formData.append('username', 'foo');
formData.append('age', '10');
// The entries function returns an iterator
let it = formData.entries();
  • The loop (iteration)
let result =;
while (!result.done) {
 result =;

As an Object

const formJson = Object.fromEntries(formData.entries());

As an array of key-value pair

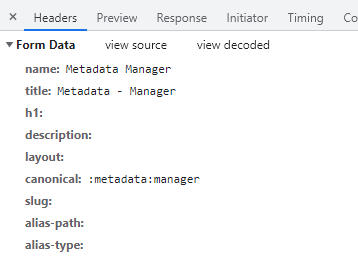

Browser Devtool

You can see it nicely formatted in the BrowserDevtool

Formdata Browser Devtool


The formdata event is fired when:

  • a form is constructing the entry list of the form data after the submit event. You could then add data in the list.
  • a new FormData() constructor is created.


<form id="form1" onSubmit="handleSubmit(this); return false;">
<p><label>FirstName</label> <input name="firstname" type="text" value="FirstNameDefault"/></p>
<p><input name="button" type="submit" value="Let mee see the formDataEvent !" /></p>
  • The FormData cannot cancel the action of a submit. Therefore, we take over the submit event, prevent it and build ourself the formdata.
let handleSubmit = (form) => {
    console.log('submit event was fired');
    // build the form data to fire the FormDataEvent on the form
    new FormData(form);
document.addEventListener("formdata", (formDataEvent) => {
    console.log('formdata event was fired');

    // Get the form data from the event object via values
    let formData = formDataEvent.formData;
    for (var entry of formData ) {
        console.log(entry[0]+" : "+entry[1]);

    // Get the form data from the event object via get
    console.log("Input is present ? : "+formData.has("firstname"));
    console.log("Value via the name attribute is: "+formData.get("firstname"));
    // You can also
    // delete(name)
    // getAll(name) (for multiple)
    // set(name, value) and set(name, blobValue, filename)
    // submit further the data via XHR
    // let request = new XMLHttpRequest();
    //"POST", "/formHandler");
    // request.send(data);

Construction Process

The formData is populated by following this procedure: constructing-the-form-data-set

Documentation / Reference

As see in the extracting body procedure where they run the multipart/form-data encoding algorithm, with object’s entry list
