Docker - (Virtual) Host (or Machine or Server) - Docker Type

About

A host in docker can be:

  • a machine where docker server run
  • or a network

This page is about the machine, to see the network, see the page Docker - Host Network.

An host (or machine) is:

  • a virtual host that you can see running in your virtual machine provider (such as virtual box).
  • is managed through the docker-machine executable (creation, start, stop,…)

The host operating system is boot2docker.

Management

Environment variable

Windows DOS shell

docker-machine env
SET DOCKER_TLS_VERIFY=1
SET DOCKER_HOST=tcp://192.168.99.100:2376
SET DOCKER_CERT_PATH=C:\Users\gerard\.docker\machine\machines\default
SET DOCKER_MACHINE_NAME=default
REM Run this command to configure your shell:
REM     @FOR /f "tokens=*" %i IN ('"C:\DockerToolbox\docker-machine.exe" env') DO @%i

Linux bash shell

docker-machine env --shell=bash
export DOCKER_TLS_VERIFY="1"
export DOCKER_HOST="tcp://192.168.99.100:2376"
export DOCKER_CERT_PATH="C:\Users\gerard\.docker\machine\machines\default"
export DOCKER_MACHINE_NAME="default"
export COMPOSE_CONVERT_WINDOWS_PATHS="true"
# Run this command to configure your shell:
# eval $("C:\DockerToolbox\docker-machine.exe" env --shell=bash)

List

docker-machine ls
NAME      ACTIVE   DRIVER       STATE     URL   SWARM   DOCKER   ERRORS
default            virtualbox   Timeout

where:

Driver

The driver indicate the provider on which to create the machine (ie the virtual engine).

Example:

See the Full List

You can register an already existing docker host by passing the daemon url.

docker-machine create --driver none --url=tcp://50.134.234.20:2376 custombox
docker-machine ls
NAME        ACTIVE   DRIVER    STATE     URL
custombox   *        none      Running   tcp://50.134.234.20:2376

Name

The environment variable DOCKER_MACHINE_NAME has the name of the host machine.

By default, you may find Moby because docker-compose comes from the Moby Project. This is the name that we will find in the host file (/etc/host) in the docker-compose service.

How to find your host name:

  • The DOCKER_MACHINE_NAME env variable
$ echo $DOCKER_MACHINE_NAME
default
  • Otherwise you see it in the NAME column when you list your hosts. See list

IP

Three ways to find the IP dependent of your configuration

Name

On windows, you can use the name host.docker.internal to reach the host.

Nat

If you are using a NAT, to determine the Docker Windows host IP interface (By default, this is the interface named vEthernet (DockerNAT) on the IP 10.0.75.1)

  • at the command line with netsh
netsh interface ip show addresses
# and to filter for one interface
netsh interface ip show addresses "vEthernet (DockerNAT)"
Configuration for interface "vEthernet (DockerNAT)"
    DHCP enabled:                         No
    IP Address:                           10.0.75.1
    Subnet Prefix:                        10.0.75.0/24 (mask 255.255.255.0)
    InterfaceMetric:                      15

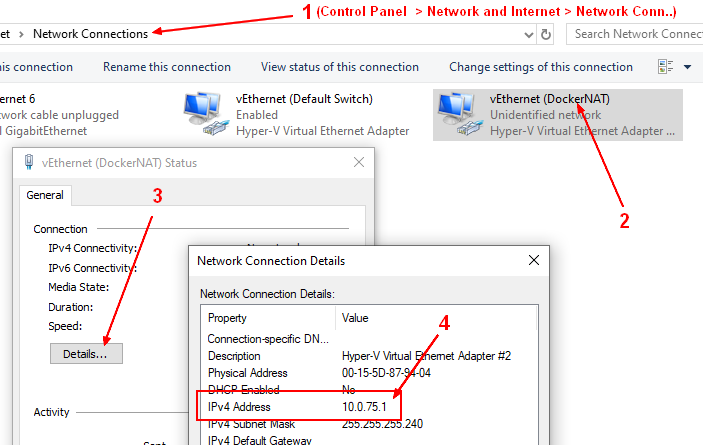

  • Windows graphically

Docker Machine

docker-machine ip default
192.168.99.100

The DOCKER_HOST environment variable contains also the IP adress of the host

This IP is assigned by the docker-machine create subcommand.

Info !

docker info
Containers: 35
 Running: 1
 Paused: 0
 Stopped: 34
Images: 45
Server Version: 1.12.3
Storage Driver: aufs
 Root Dir: /mnt/sda1/var/lib/docker/aufs
 Backing Filesystem: extfs
 Dirs: 186
 Dirperm1 Supported: true
Logging Driver: json-file
Cgroup Driver: cgroupfs
Plugins:
 Volume: local
 Network: bridge host null overlay
 Log:
Swarm: inactive
Runtimes: runc
Default Runtime: runc
Init Binary:
containerd version:
runc version:
init version:
Security Options:
 seccomp
Kernel Version: 4.4.27-boot2docker
Operating System: Boot2Docker 1.12.3 (TCL 7.2); HEAD : 7fc7575 - Thu Oct 27 17:23:17 UTC 2016
OSType: linux
Architecture: x86_64
CPUs: 2
Total Memory: 7.79GiB
Name: default
ID: 6CCC:JOTU:XXK3:ZJV6:7QTA:Y5LZ:EUAM:D3VM:XTVA:NQOY:5M2Z:KSC5
Docker Root Dir: /mnt/sda1/var/lib/docker
Debug Mode (client): false
Debug Mode (server): true
 File Descriptors: 23
 Goroutines: 41
 System Time: 2017-10-24T15:05:24.245401217Z
 EventsListeners: 0
Registry: https://index.docker.io/v1/
Labels:
 provider=virtualbox
Experimental: false
Insecure Registries:
 127.0.0.0/8
Live Restore Enabled: false

where you can see:

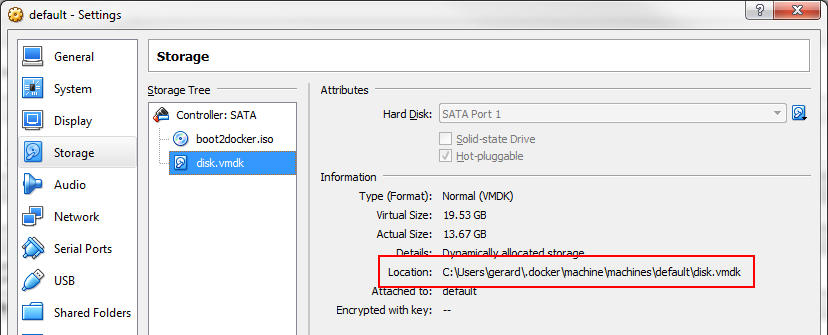

Disk Location

Data Persistence

Changes outside of the /var/lib/docker and /var/lib/boot2docker directories will be lost after powering down or restarting the host.

More ? See local customisation with persistent partition
