Docker - Shared Drive (Windows)

1 - About

shared drive

3 - Setup

For windows

3.1 - Firewall

Shared drives require port 445 to be open between the host machine and the virtual machine that runs Linux containers.

Allow connections to on port 445 (the Windows host) from (the virtual machine).

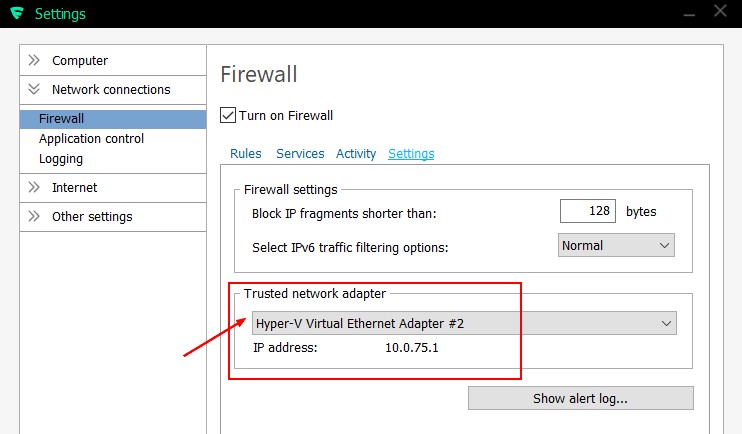

I ended up by giving a trust to the adapter.

3.2 - Settings

See Shared drives

Make your drive accessible to your containers.

  • Docker > Settings > Shared Drive
You need to reset your credentials everytime that they will expired otherwise your bind mounts will not be available.

Test it ! With the following, you should be able to navigate your c disk inside the container at the data mount point.

docker run --rm -it -v C::/data alpine sh

Example with my computer:

cd /data/

Anaconda2-Python2.7        Intel                      PhotoFiltre                System Volume Information  hiberfil.sys
Config.Msi                 Java                       Program Files              Users                      pagefile.sys
DataGrip                   Jenkins                    Program Files (x86)        WinMerge                   spark-2.2.0-bin-hadoop2.7
Dell                       JuffrouwBlom               ProgramData                WinSCP                     swapfile.sys
Documents and Settings     Notepad++                  Python27                   Windows                    tmp
Git                        OneDriveTemp               Recovery                   Windows10Upgrade
IDEA                       PerfLogs                   Recovery.txt               apache-maven-3.5.3
