Docker - Installation Docker for Windows on Windows 10

Card Puncher Data Processing


In Windows 10, you install docker with Docker for Windows.

The installation provides:



In the settings change the resource of the host

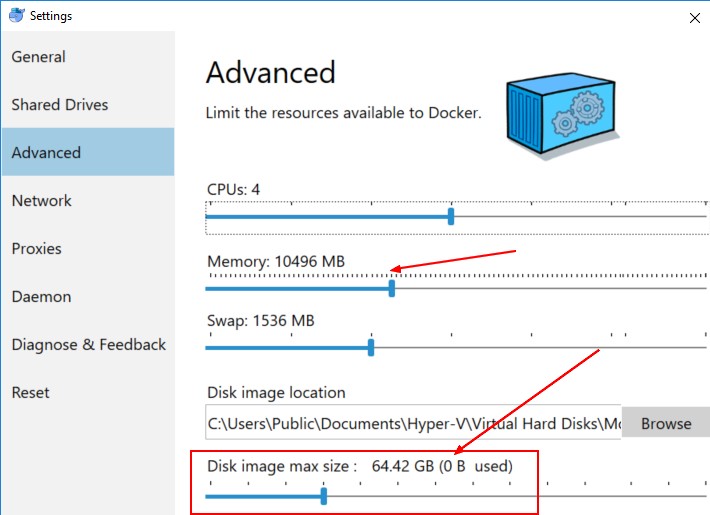

Docker For Windows Host Settings

Docker for Windows requires Microsoft Hyper-V to run. The Docker for Windows installer enables Hyper-V for you and VirtualBox no longer works. These VMs cannot be used side-by-side with Docker for Windows.

I have learned that there is:

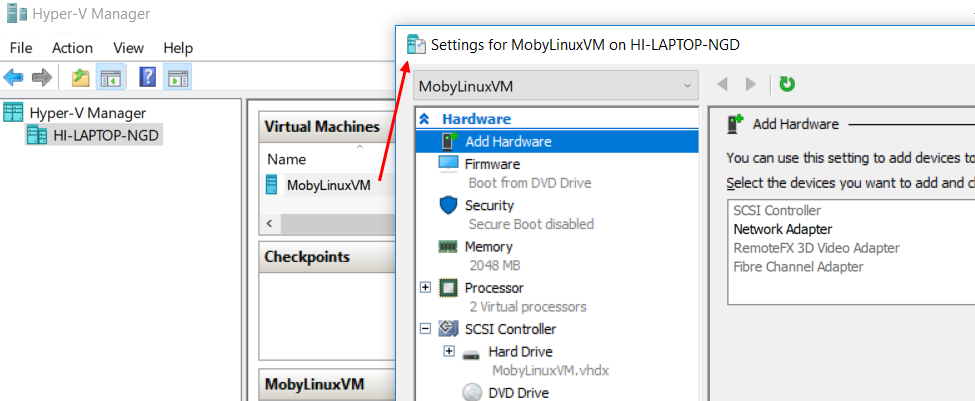

Docker Hyperv Moby

The host:

  • use named MobyLinuxVM
  • use the iso (C:\Program Files\Docker\Docker\Resources\docker-for-win.iso)
  • store its disk of 60Gb at (C:\Users\Public\Documents\Hyper-V\Virtual Hard Disks\MobyLinuxVM.vhdx)

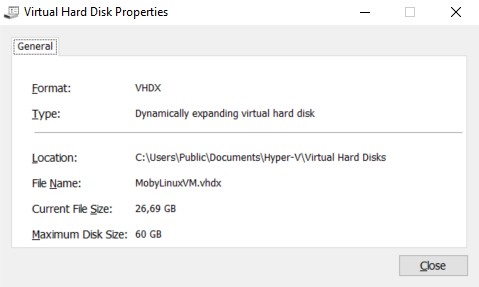

Docker Moby Disk

  • is accessible through localhost because of the DockerNat Network adapter


All Windows accounts use the same VM to build and run containers. Containers and images created with Docker for Windows are then shared between all user accounts.

Shared drive

Docker - Shared Drive (Windows)


Kitematic Installation:

  • Choose Kitematic, on the Docker for windows menu
  • Download the zip file and unzip it at C:\Program Files\Docker\Kitematic

Docker Kitematic Docker For Windows


Docker use external credential helper that are by default installed with windows (at C:\Program Files\Docker\Docker\resources\bin)

They follows the same file pattern: docker-credential-xxxxx.exe

You set the xxxxx in the configuration file located at C:\Users\username\.docker\config.json in the property credsStore


More see Credentials Store


Mount denied: The source path doesn't exist and is not known to Docker

On Windows 10

docker: Error response from daemon: Mount denied:
The source path "D:/tmp"
doesn't exist and is not known to Docker.
See 'docker run --help'.


  • A Firewall was added
  • or The credentials for the mount have expired, reset them

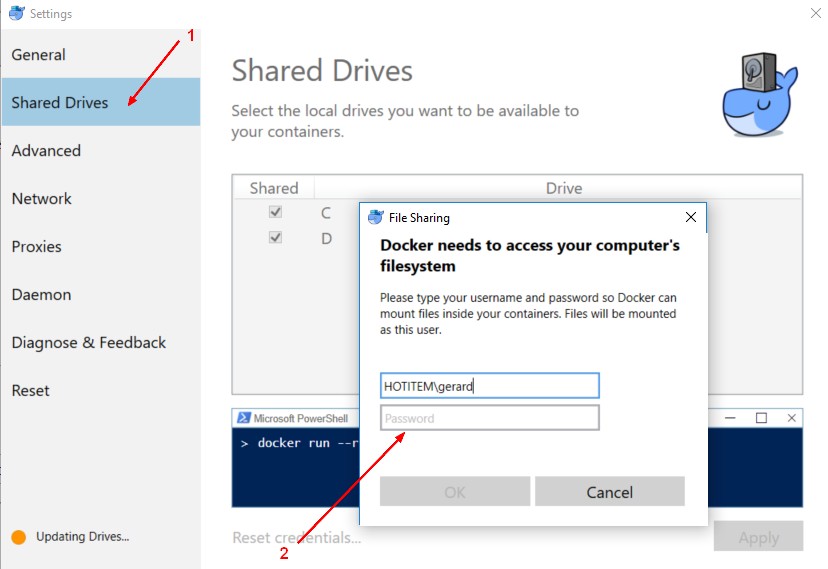

Docker Shared Drive New Credentials

Documentation / Reference
