Spark - Livy (Rest API)

About

Livy is an open source REST interface for interacting with Spark from anywhere.

It supports executing:

• snippets of code
• or programs

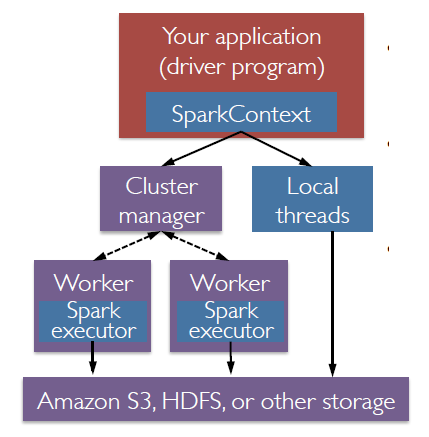

in a Spark Context that runs locally or in YARN.

It's used to submit remote job.

Code example

step-by-step example of interacting with Livy in Python with the python Requests library for

• pyspark
• spark

Endpoint

• http://localhost:8998/
• Azure Hdinsight:
  • <spark_cluster_name>.azurehdinsight.net/livy
  • http://<headnode>:8998 on the same vnet than the cluster

Client

• Jupyter - SparkMagic
• HTTP - Client (User agents) - because of the Rest API

Server Management

Installation

• Hortonworks

Alive

curl -u admin -G "http://10.0.0.11:8998/"

Start and stop

• R: https://spark.rstudio.com/reference/livy_service/

export SPARK_HOME=/usr/lib/spark
export HADOOP_CONF_DIR=/etc/hadoop/conf
#  Livy uses the Spark configuration under SPARK_HOME by default. You can override the Spark configuration by setting the SPARK_CONF_DIR environment variable
export SAPRK_CONF_DIR=$SPARK_HOME/conf

./bin/livy-server

# Hortonworks
# /usr/hdp/<hdp_version>/livy2/bin/livy-server start

Configuration

LIVY_CONF_DIR is by default is the conf directory under the Livy installation. Example: /usr/bin/livy2/conf

The configuration of Livy goes through different file:

• livy.conf: the server configuration
• spark-blacklist.conf: Spark configuration options that users are not allowed to override
• log4j.properties: configuration for Livy logging. See Java - Log4j
• livy-defaults
• livy-env-sh

livy.conf

livy.repl.enableHiveContext=true
livy.server.port=8998
livy.server.recovery.mode=recovery
livy.server.recovery.state-store=zookeeper
livy.server.recovery.state-store.url=zk2:2181,zk3:2181,zk5:2181
livy.server.session.timeout=2073600000
livy.server.yarn.app-lookup-timeout=2m
livy.spark.master=yarn-cluster

where:

• master is Yarn

List of possible configuraton:

• livy.conf.template
• Rsc - RSCConf.java

livy.rsc.rpc.max.size

• Server - LivyConf.scala

livy-env-sh


#!/usr/bin/env bash

export SPARK_HOME=/usr/hdp/current/spark2-client
export HADOOP_CONF_DIR=/etc/hadoop/conf
export LIVY_LOG_DIR=/var/log/livy
export LIVY_MAX_LOG_FILES=30
export LIVY_PID_DIR=/var/run/livy
export LIVY_SERVER_JAVA_OPTS="-Xmx2g"
YARN_CLASSPATH=`yarn classpath`
export CLASSPATH="$YARN_CLASSPATH:/usr/lib/hdinsight-logging/*"
export LIVY_IDENT_STRING=livy

Log

The log is set in the environment variable LIVY_LOG_DIR

export LIVY_LOG_DIR=/var/log/livy

Process

The PID dir is found in the environment variable LIVY_PID_DIR

export LIVY_PID_DIR=/var/run/livy
ps -ef -q $(cat $LIVY_PID_DIR/livy-livy-server.pid)

ps -q $(cat $LIVY_PID_DIR/livy-livy-server.pid) -o comm=

Example of command:

/usr/lib/jvm/java-8-openjdk-amd64/bin/java -Xmx2g -cp /usr/bin/livy2/jars/*:/usr/bin/livy2/conf:/etc/hadoop/conf:/usr/hdp/2.6.2.25-1/hadoop/conf:/usr/hdp/2.6.2.25-1/hadoop/conf:/usr/hdp/2.6.2.25-1/hadoop/conf:/usr/hdp/2.6.2.25-1/hadoop/lib/*:/usr/hdp/2.6.2.25-1/hadoop/.//*:/usr/hdp/2.6.2.25-1/hadoop-hdfs/./:/usr/hdp/2.6.2.25-1/hadoop-hdfs/lib/*:/usr/hdp/2.6.2.25-1/hadoop-hdfs/.//*:/usr/hdp/2.6.2.25-1/hadoop-yarn/lib/*:/usr/hdp/2.6.2.25-1/hadoop-yarn/.//*:/usr/hdp/2.6.2.25-1/hadoop-mapreduce/lib/*:/usr/hdp/2.6.2.25-1/hadoop-mapreduce/.//*::/usr/hdp/current/hadoop-mapreduce-client/*:/usr/hdp/2.6.2.25-1/tez/*:/usr/hdp/2.6.2.25-1/tez/lib/*:/usr/hdp/2.6.2.25-1/tez/conf:/usr/hdp/current/hadoop-yarn-resourcemanager/.//*:/usr/hdp/current/hadoop-yarn-resourcemanager/lib/*:/usr/lib/hdinsight-logging/* com.cloudera.livy.server.LivyServer

API

See Rest API

Session

List

• Get: Returns all the active interactive sessions.

GET /sessions

{
	"from":0,
	"total":2,
	"sessions":
		[
			{"id":0,"appId":"application_1525336261063_0027","owner":null,"proxyUser":null,"state":"dead","kind":"spark","appInfo":{"driverLogUrl":null,"sparkUiUrl":"http://hn1:8088/cluster/app/application_1525336261063_0027"},"log":["YARN Diagnostics:","Application killed by user."]},
			{"id":1,"appId":"application_1525370262995_5114","owner":null,"proxyUser":null,"state":"dead","kind":"spark","appInfo":{"driverLogUrl":null,"sparkUiUrl":"http://hn1:8088/proxy/application_1525370262995_5114/"},"log":[]}
		]
}

• Returns the session information.

GET /sessions/{sessionId}

{
  "id":1,
  "appId":"application_1525370262995_5114",
  "owner":null,
  "proxyUser":null,
  "state":"dead",
  "kind":"spark",
  "appInfo": {
    "driverLogUrl":null,
    "sparkUiUrl":"http://hn1:8088/proxy/application_1525370262995_5114/"
    },
  "log":[]
}

State

• Returns the state of session. See possible returns value: cloudera/livy

GET /sessions/{sessionId}/state

{
  "id":1,
  "state":"dead"
}

Create Session

• Creates a new interactive Scala, Python, or R shell in the cluster and the return the id. See all kind of session: cloudera/livy

POST /sessions

host = ‘http://localhost:8998’
# SparkShell
data = {‘kind’: ‘spark’}
headers = {‘Content-Type’: ‘application/json’}
r = requests.post(host + ‘/sessions’, data=json.dumps(data), headers=headers)
r.json()

where:

• Request parameters may be:

Example of output:

{u’state’: u’starting’, u’id’: 0, u’kind’: u’spark’}

Kill

DELETE /sessions/{sessionId}

Log

Gets the log lines from this session.

GET /sessions/{sessionId}/log

{"id":1,"from":0,"total":0,"log":[]}

Statement

List

• All: Returns all the statements in a session.

GET /sessions/{sessionId}/statements

• one

GET /sessions/{sessionId}/statements/{statementId}

Submit

Runs a statement in a session.

POST /sessions/{sessionId}/statements

data = {‘code’: ‘sc.parallelize(1 to 10).count()’}
r = requests.post(statements_url, data=json.dumps(data), headers=headers)
r.json()

{u’output’: None, u’state’: u’running’, u’id’: 0}

Get the result

GET /sessions/{sessionId}/statements/{statementId}

statement_url = host + r.headers[‘location’]

r = requests.get(statement_url, headers=headers)
pprint.pprint(r.json())

{u’id’: 0,
 u’output’: {u’data’: {u’text/plain’: u’res0: Long = 10′},
             u’execution_count’: 0,
             u’status’: u’ok’},
 u’state’: u’available’}

Cancel

POST /sessions/{sessionId}/statements/{statementId}/cancel

Batch

There is also a batch of statement. See: https://github.com/cloudera/livy#get-batches

Get

• All

curl -k \
  --user "<user>:<user password>" \
  -v \
  -X GET \
  "https://hostname/livy/batches"

• One

curl -k \
  --user "<user>:<user password>" \
  -v \
  -X GET \
  "https://hostname/livy/batches/{batchId}"

Delete

curl -k \
  --user "<user>:<user password>" \
  -v \
  -X DELETE \
  "https://hostname/livy/batches/{batchId}"

Submit application

Spark - Spark-submit

master and deploy mode are not in the data because they are configured in the configuration

Example: for data, see cloudera/livy

POST /batches

{
  “className”: “org.apache.spark.examples.SparkPi”,
  “executorMemory”: “20g”,
  “args”: [2000],
  “file”: “/path/to/examples.jar”
}

With curl:

curl -k \
  --user "<user>:<user password>" \
  -v \
  -H "Content-Type: application/json" \
  -X POST \
  -d '{ "file":"<path to application jar>", "className":"<classname in jar>" }' \
  # If the data (file, classname) are in a file
  # --data @C:\Temp\input.txt \
  -H "X-Requested-By: admin" \
  'https://hostname/livy/batches'

where:

• file example for Azure wasb: wasb://[email protected]/data/SparkSimpleTest.jar

Documentation / Reference

• https://github.com/cloudera/livy
• http://livy.incubator.apache.org/
• https://hortonworks.com/blog/livy-a-rest-interface-for-apache-spark/

Azure:

• https://github.com/hdinsight/livy
• https://docs.microsoft.com/en-us/azure/hdinsight/spark/apache-spark-livy-rest-interface
• https://docs.microsoft.com/en-us/rest/api/hdinsightspark/
