Windows - netsh (Netshell)

Windows 95 Wallpaper Version


Netsh is a command-line scripting utility that allows you to, either locally or remotely, display or modify the network configuration of a windows computer.


Netsh works with context which is a group of commands specific to a networking component.

netsh dnsclient>
  • advfirewall - Windows firewall
  • branchcache
  • bridge
  • dhcpclient
  • dnsclient - dns client
  • firewall
  • http
  • ipsec
  • lan
  • mbn
  • namespace
  • nap
  • netio
  • p2p
  • ras
  • rpc
  • trace
  • wcn
  • wfp
  • winhttp
  • winsock
  • wlan

Dll files

Operating Systems - (Native) Libraries

netsh show helper
Helper GUID                             DLL Filename  Command
--------------------------------------  ------------  -------
{02BC1F81-D927-4EC5-8CBC-8DD65E3E38E8}  AUTHFWCFG.DLL  advfirewall
{FB10CBCA-5430-46CE-B732-079B4E23BE24}  AUTHFWCFG.DLL    consec
{35342B49-83B4-4FCC-A90D-278533D5BEA2}  AUTHFWCFG.DLL    firewall
{4BD827F7-1E83-462D-B893-F33A80C5DE1D}  AUTHFWCFG.DLL    mainmode
{4D0FEFCB-8C3E-4CDE-B39B-325933727297}  AUTHFWCFG.DLL    monitor
{A31CB05A-1213-4F4E-B420-0EE908B896CB}  PEERDISTSH.DLL  branchcache
{555EA58E-72B1-4F0A-9055-779D0F5400B2}  PEERDISTSH.DLL    smb
{00770721-44EA-11D5-93BA-00B0D022DD1F}  HNETMON.DLL   bridge
{6DC31EC5-3583-4901-9E28-37C28113656A}  DHCPCMONITOR.DLL  dhcpclient
{8A6D23B3-0AF2-4101-BC6E-8114B325FE17}  NETIOHLP.DLL  dnsclient
{8B3A0D7F-1F30-4402-B753-C4B2C7607C97}  FWCFG.DLL     firewall
{44F3288B-DBFF-4B31-A86E-633F50D706B3}  NSHHTTP.DLL   http
{0705ECA1-7AAC-11D2-89DC-006008B0E5B9}  IFMON.DLL     interface
{1C151866-F35B-4780-8CD2-E1924E9F03E1}  NETIOHLP.DLL    6to4
{97C192DB-A774-43E6-BE78-1FABD795EEAB}  NETIOHLP.DLL    httpstunnel
{725588AC-7A11-4220-A121-C92C915E8B73}  NETIOHLP.DLL    ipv4
{500F32FD-7064-476B-8FD6-2171EA46428F}  NETIOHLP.DLL    ipv6
{90E1CBE1-01D9-4174-BB4D-EB97F3F6150D}  NETIOHLP.DLL      6to4
{90E1CBE1-01D9-4174-BB4D-EB97F3F6150D}  NETIOHLP.DLL      isatap
{1C151866-F35B-4780-8CD2-E1924E9F03E1}  NETIOHLP.DLL    isatap
{1C151866-F35B-4780-8CD2-E1924E9F03E1}  NETIOHLP.DLL    portproxy
{78197B47-2BEF-49CA-ACEB-D8816371BAA8}  NETIOHLP.DLL    tcp
{1C151866-F35B-4780-8CD2-E1924E9F03E1}  NETIOHLP.DLL    teredo
{F7E0BC27-BA6E-4145-A123-012F1922F3F1}  NSHIPSEC.DLL  ipsec
{F7E0BC29-BA6E-4145-A123-012F1922F3F1}  NSHIPSEC.DLL    dynamic
{F7E0BC28-BA6E-4145-A123-012F1922F3F1}  NSHIPSEC.DLL    static
{1D8240C7-48B9-47CC-9E40-4F7A0A390E71}  DOT3CFG.DLL   lan
{B572D5F3-E15B-4501-84F2-6626F762AFB1}  WWANCFG.DLL   mbn
{B341E8BA-13AA-4E08-8CF1-A6F2D8B0C229}  NETIOHLP.DLL  namespace
{00B399EA-447F-4B19-8393-F9D71D7760F9}  NAPMONTR.DLL  nap
{3F8A1180-FF5D-4B5B-934C-D08DFFBC9CBC}  NAPMONTR.DLL    client
{B123BAAA-79E9-49FD-AB2C-E87C56CE4CFF}  NAPMONTR.DLL    hra
{931852E2-597D-40B9-B927-55FFC81A6104}  NETIOHLP.DLL  netio
{B7BE4347-E851-4EEC-BC65-B0C0E87B86E3}  P2PNETSH.DLL  p2p
{9E0D63D7-4644-476B-9DAC-D62F96E08376}  P2PNETSH.DLL    collab
{6ED05238-F6A3-F801-967A-5CAD6F6CAC56}  P2PNETSH.DLL      contact
{E35A9D1F-61E8-4CF5-A46C-0F715A9303B8}  P2PNETSH.DLL    group
{9AA625FC-7E31-4679-B5B5-DFC67A3510AB}  P2PNETSH.DLL      database
{FBFC037E-D455-4B8D-80A5-B379002DBCAD}  P2PNETSH.DLL    idmgr
{9E0D63D6-4644-476B-9DAC-D64F96E01376}  P2PNETSH.DLL    pnrp
{1DD4935A-E587-4D16-AE27-14E40385AB12}  P2PNETSH.DLL      cloud
{AD1D76C9-434B-48E0-9D2C-31FA93D9635A}  P2PNETSH.DLL      diagnostics
{6EC05238-F6A3-4801-967A-5C9D6F6CAC50}  P2PNETSH.DLL      peer
{0705ECA2-7AAC-11D2-89DC-006008B0E5B9}  RASMONTR.DLL  ras
{42E3CC21-098C-11D3-8C4D-00104BCA495B}  RASMONTR.DLL    aaaa
{90FE6CFC-B6A2-463B-AA12-25E615EC3C66}  RASMONTR.DLL    diagnostics
{13D12A78-D0FB-11D2-9B76-00104BCA495B}  RASMONTR.DLL    ip
{36B3EF76-94C1-460F-BD6F-DF0178D90EAC}  RASMONTR.DLL    ipv6
{592852F7-5F6F-470B-9097-C5D33B612975}  RPCNSH.DLL    rpc
{C07E293F-9531-4426-8E5C-D7EBBA50F693}  RPCNSH.DLL      filter
{D3E9D893-852F-4E22-B05D-99293065773D}  NETTRACE.DLL  trace
{C100BECD-D33A-4A4B-BF23-BBEF4663D017}  WCNNETSH.DLL  wcn
{3BB6DA1D-AC0C-4972-AC05-B22F49DEA9B6}  NSHWFP.DLL    wfp
{0BFDC146-56A3-4311-A7D5-7D9953F8326E}  WHHELPER.DLL  winhttp
{B2C0EEF4-CCE5-4F55-934E-ABF60F3DCF56}  WSHELPER.DLL  winsock
{D424E730-1DB7-4287-8C9B-0774F5AD0576}  WLANCFG.DLL   wlan
Netsh interacts with other operating system components using dynamic-link library (DLL) files.

Discover More
Map Of Internet 1973
DNS clients - A list of client that can query the DNS database

A DNS client is an application that calls the resolver to query name database in order to perform forward lookup (IP from name) or reverse lookup(Name from IP). This page lists this application
Docker Host Virtualbox
Docker - (Virtual) Host (or Machine or Server) - Docker Type

a machine where docker server run or a network An host (or machine) is: a virtual host that you can see running in your virtual machine provider (such as virtual box). is managed through the...
Packet Structure Dns Query
Network - Physical network card addresses or MAC addresses (ex:0fe1.2ab6.2398)

The mac address is a local net identifier for a network interface (adapter). It's part of every packet in the mac header With netsh:
Windows Network Connections
What is a Network Interface?

A network interface is a: software and/or hardware (ie NIC, network interface adapter)) interface between: two pieces of equipment or protocol layers (see socket) in a computer network....

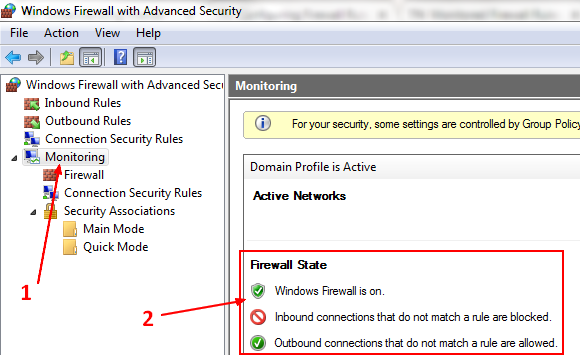

Default Windows Firewall Rule
