An association is a relationship between two or more entities. It's represented by a link in the data model.

An association:

  • answers to the question why two entity need to know about one another.
  • specifies a semantic relationship (ie is … of) that can occur between entities.


  • A mathematical function y = f(x) creates an association relationship between the set of x and the set of y


  • A book has been written by one or many authors.

Association Entity Example


The following relationship properties are visible:

And an association may also have a type information added with a symbol at one of its end such as:

As the term association design a visual representation of an relationship, the term association is also sometimes combined with the relationship properties.



Entity Diagram

Example of Entity Diagram

Association Entity Example


  • PublishedBy is an association where
    • 1 is the multiplicity of the publisher end and indicates that a book is published by one publisher
    • * is the multiplicity of the book end and indicates that a publisher publishes many books
  • WrittenBy is an association
    • * is the multiplicity of the author end and indicates that a book is written by many Author
    • * is the multiplicity of the book end and indicates that a author writes many books

Class Diagram

Object - Class Diagram (UML)

  • Any Association is drawn as a diamond with a solid line to the entity (class).
  • The Association’s name can be shown as a name string near the Association symbol
  • An Association end is the connection between the line depicting an Association and the icon (often a box) depicting the class.
  • The multiplicity attached to a class end denotes the possible cardinalities of the set of entity.

Binary Ternary Association

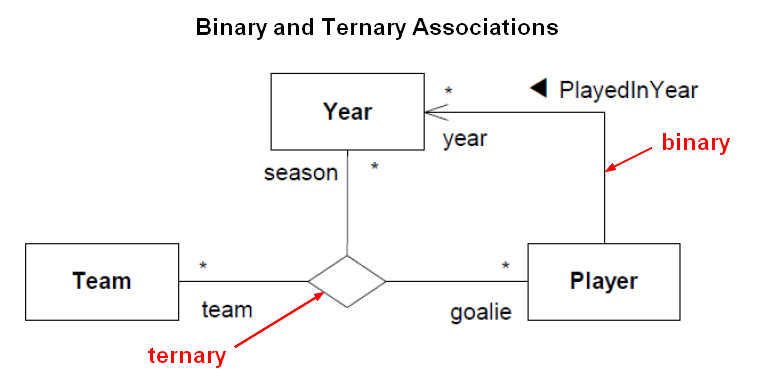

The figure shows:

  • a binary association: where the solid triangle indicates the order of reading: Player PlayedInYear Year
  • a ternary association: between Team, Year, and Player with id (ends) named team, season, and goalkeeper (goalie) respectively.
