SQL - (Equi|Simple|Inner|Natural) Join

Data System Architecture

About

Relational Operator - Equi-joins in SQL

An equi-join also known as simple join link relation (tables, …) based on the equality between the values in the column of one relation (table, …) and the values in the column of another. Because the same column is present in both tables, the join synchronizes the two relations (tables, …)

The restriction conforms to the following syntax:

TableA.column_a = TableB.column_a

In a normalized database the columns used in an equi-join are usually the primary key from one table and the foreign key in the other.

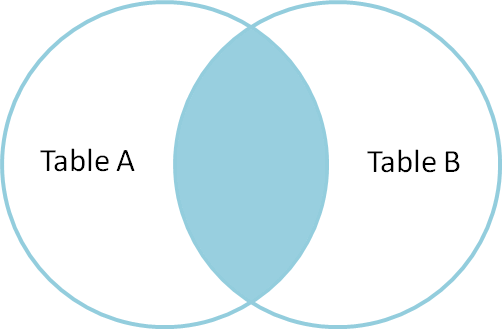

Tableainnertableb

Syntax

Equality Notation

select *
from R1 JOIN R2
on R1.A = R2.A

Cross product notation

cross product

select *
from R1, R2
where
R1.A = R2.A

Algorithm

  • Source fields from the two data sources are merged into a single record
  • Only shared records are processed
  • Records that are in only one data source are dropped

The result of an equi-join can be defined as the outcome of :

Example

Example 1

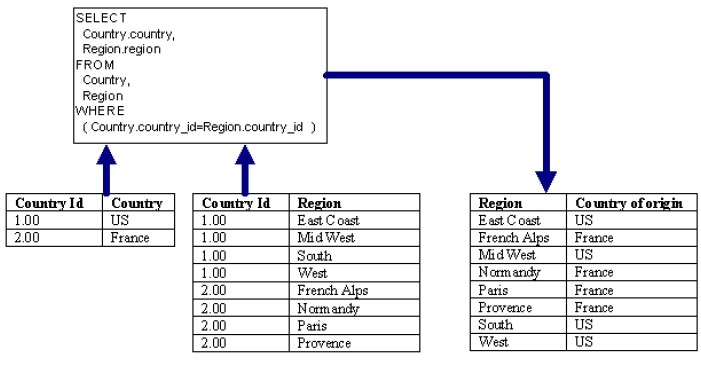

Equi Join Example

Example 2

table1
(inner set)
table2
(outer set)
Column ID Column ID Column ID_2
A A
B B A
D C C
A A
select table1.id "ID_table1", table2.id "ID_table2", table2.id_2 "ID2_table2"
   from table1, table2
where table1.id = table2.id;
ID_table1  ID_table2  ID2_table2
---------- ---------- ----------
A          A          A
A          A
B          B          A

The value C from the table1 and D from the table2 disappear because they don't exist in the two tables.

Example 3

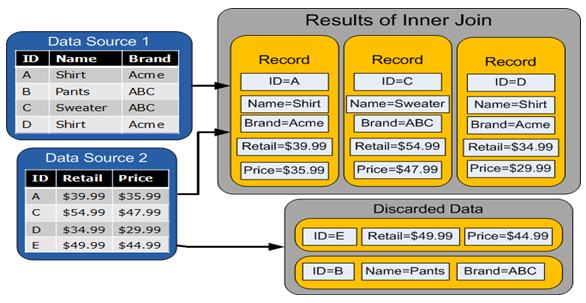

Inner Join Result Discard

Natural Join

SQL - Natural Join - a natural join is an equi-join on the same attribute of each relation.

Documentation / Reference





Discover More
Obiee Foreign Key Complex Join
OBIEE 10G - Complex (Join|Operator) (Physical and Logical)

In 10g, A complex join is a metadata of sql join statement in the repository. In 11g, they doesn't exist anymore. In the business model, OBI recommends using complex logical joins instead of foreign...
Joiner Operator

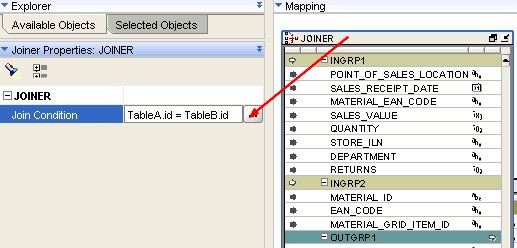

OWB - Joiner operator
