Web - Timeline of a page load (Page Speed|Page Latency)

About

Page load is the latency performance metrics that cumulates:

  • TCP latency (ie how fast, the network will receive the HTTP request and send back the HTTP response )
  • HTTP latency (ie how fast the web server will create an HTTP document)
  • and HTML latency (ie how fast a page will be rendered by the browser)

You may be also interested by the web speed page (possible duplicate)

Timeline / State / Phase / Moment

Load is not a single moment in time — it’s an experience that no one metric can fully capture. There are multiple moments during the load experience that can affect whether a user perceives it as “fast” or “slow”.

The main page state of the loading process are available in the readyState property

Page Load - Navigation (Browsing) - The user begins a page load with a navigation that executes a HTTP request

HTML Loading

HTML Parsing

Top down

HTML code is processed by the browser in the order it appears in the file. Ie the code on the page (ie HTML, CSS, Javascript, …) is processed top down

Demo: Click on the button to start loading the HTML

<script>alert('The image is not yet downloaded because this alert is blocking. Click on the Ok button to close the alert, to resume the load process and load the image');</script>
<img src="/_media/lenna.png" width="200px"/>

Explanation:

  • When the page is loaded, the browser execute the alert, the alert window will pop up and the page stops loading until the alert window is closed. Ie in this case, you will not see the image until you close the alert.

Parsing: Object Model build (DOM)

In this phase, the browser will build the DOM document from the HTML document received in the response.

Event:

Metrics:

  • Page Load - Content Load Time - The amount of time to fully load the HTML and build the DOM (external resources like images & stylesheets not yet loaded).

Loading Resources

In this phase, the browser will fetch resources present in the HTML page.

If the linked resources are:

  • css stylesheet: they will be added to the CSS Object Model and trigger a re-rendering
  • javascript: they will be executed depending on the async or defer attribute
  • image: they will trigger a re-rendering and may cause a layout shift if the width and height attributes are not present or had bad values
  • iframe: they will trigger another page load.

CSSOM Building

In this phase, the browser will transform all CSS (inline and stylesheet) into a CSSOM (tree)

Fully loaded

The page is loaded. Image may still download. The page is not yet fully rendered.

Metrics:

  • Page Speed - Load time - The amount of time to complete all the processing and resource (images, styles, etc) loading for the page.

Event:

  • load event: occurs on a element or on the page (ie window)

Rendering

Browser - Rendering

Metrics:

Event:

Metrics

Analytics Provider

Your web analytics provider should provide you with them.

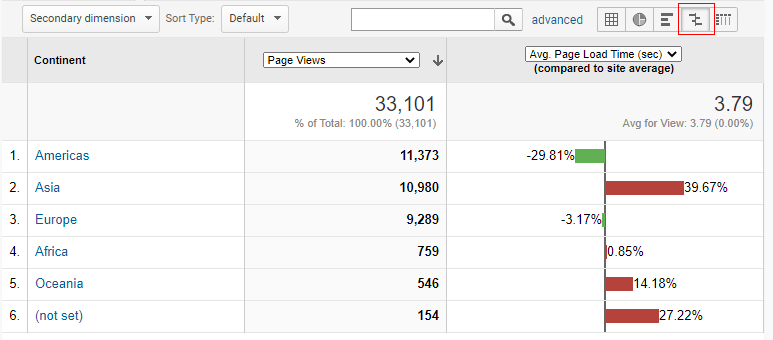

Example for Google Analytics

Timing

Browser API

You can get the metrics via:

Example:

// All results are reported to the analyticsTracker callback
new Perfume({
  analyticsTracker: options => {
    const { metricName, data, eventProperties, navigatorInformation, vitalsScore, } = options;
    switch (metricName) {
       case 'fp':
           console.log('firstPaint duration: '+data);
           return;
       case 'fcp':
           console.log('firstContentfulPaint duration: '+data);
           return;
       case 'lcp':
           console.log('largestContentfulPaint duration: '+data);
           return;
       default:
          return;
    }
  },
});

Control / Solution

The below table lists the parameters that have an impact on the speed of your page load.

Resources Javascript Css Stylsheet Image / Video TCP Network Description
Preload x x Load non-critical Javascript or CSS
Async/Defer x Loading in parallel
Lazy loading x Load only when the element is going into the viewport
Tree shaking/ pruning x x Delete code that is not relevant
Minify x x Compress the code
Responsive Image x Use and advertise the best image (size and format)
HTTP accept encoding x x Compress the HTTP content (compress, gzip, …)
Edge/Cdn server x x x x Serve the page and resources close to the user

Server Location

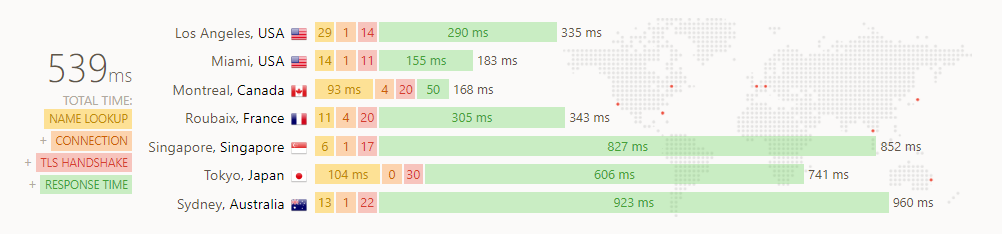

On a world scale, the location of the server has a great impact on the response time.

In a single server architecture can you guess where the server is located ?

This takes into account only the first byte of the response (network performance), it may add up to seconds when the full page is loaded.

Solution: Edge/Cdn server

  • static cdn: you put a cdn proxy cache solution in front of your web server (cloudflare, ..)
  • dynamic cdn: you locate multiple web servers and redirect the browser request via DNS or Anycast solution

User Effect

Bounce by latency

Probability of bounce by page latency.

(Slow pages lose user)

User perception

  • 100 ms: user perceives as instantaneous
  • 1s: is about the upper limit of human flow of though. User loses the feeling direct feedback
  • 10s: Upper limit of attention. Feedback is important and the chance of context switch is high.

Record

To record a page load, you would use a headless browser

Utility

States

The Page lifecycle API 1) formalizes two new lifecycle states:

  • Frozen: lifecycle state for CPU suspension. This means that the freeze steps algorithm was called
  • Discarded: means that the discard algorithm was called
