ODI - Designer

Card Puncher Data Processing

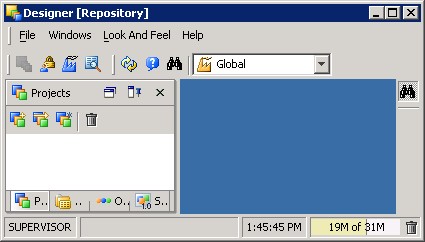

Odi Designer

Through the Designer module, you can handle:

  • Models: The data models for your applications: all of the metadata in your data servers :
    • tables,
    • columns,
    • constraints,
    • descriptions,
    • cross-references,
    • etc…
  • Projects: all of the loading and transformation rules for your data servers:

The Designer module stores this information in a work repository, while using the topology and the security information defined in the master repository.
