About
An interface in Designer consists of a set of rules that define the loading of a datastore or a temporary target structure from one or more source datastores.
Articles Related
Steps
New Mapping
You would only need the Empty Dataset if you are making more than one source or target.
Run

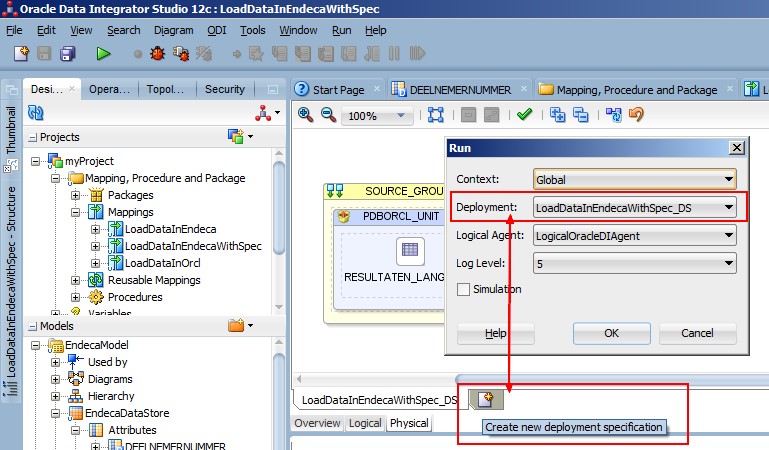

Deployment Specification
Components of an Interface
The interfaces use the following components:
- Datastores defined in the models as sources and target of the loading process.
- Knowledge Modules to generate the appropriate processes.
- Variables and Sequence to store values or counters in the expressions.
- Users functions to ease the transformation rule coding.

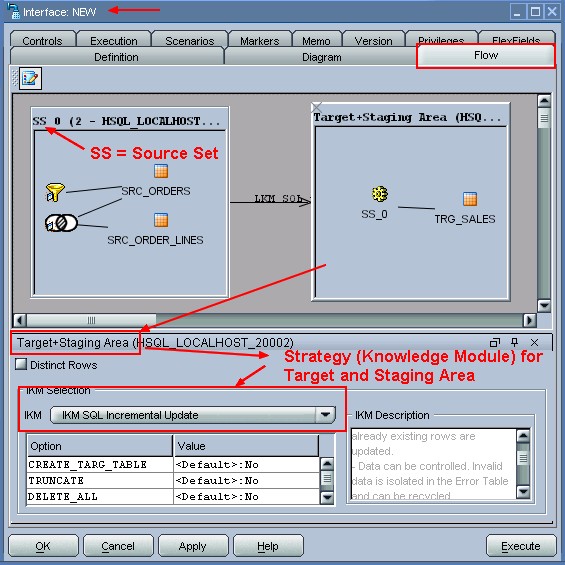

Flow and knowledge modules
The flow is the set of loading and integration strategies for mapped data, based on knowledge modules as :

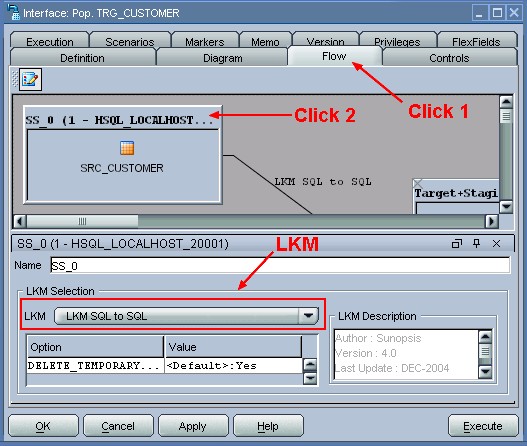

- Loading strategy: Loading Knowledge Module (LKM)

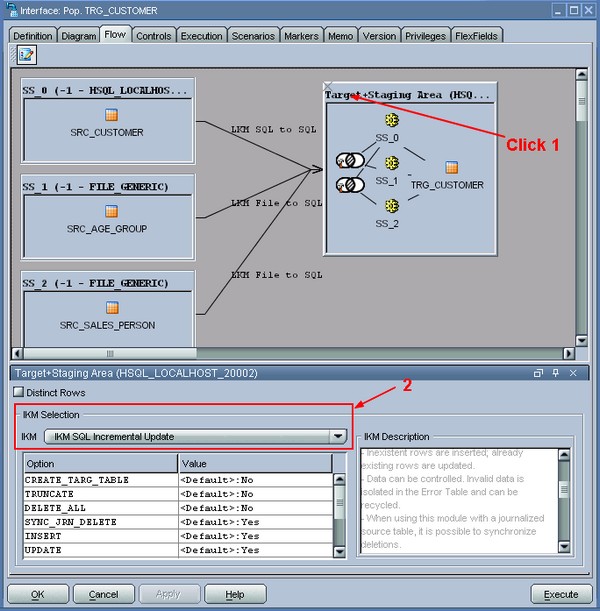

- Integration strategy: Integration Knowledge Module (IKM)
- Control strategy: Check Knowledge Module (CKM). The flow control strategy lets you define the method used to check the flow before the insertion in the target.
