Data Rule is the key concept of the data quality. They are part of the Data Quality option to Warehouse Builder. If you don't know what is a data rule, please refer you to data rule.

For a complete explanation of how to implement and manage data rule see :

How to define your rule ?

Pre-build rule

You have already a lot of pre-build rule. You can see them in the global explorer as Public Data Rules.

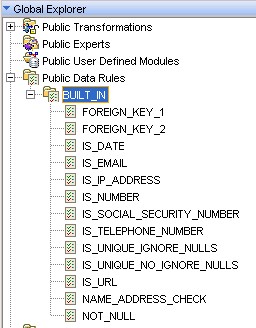

Global Explorer Public Data Rule

Derive rule from a profiling result

You can also derive a data rule from a OWB - Data Profiling result. For instance below, we have discover a Domain List with the country column. Select it and create a data rule by clicking on the “Derive Data Rule”.

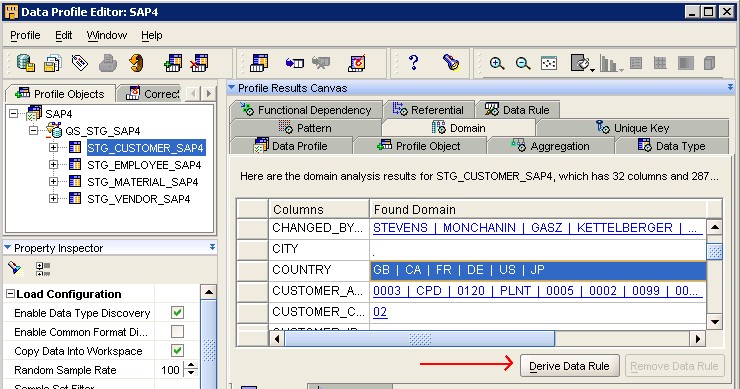

Owb Derive Data Rule

Data Rule in Project Explorer

You can define your own. You will find a data rule node in the project explorer. Just expand the node and right click on rule to launch a wizard.

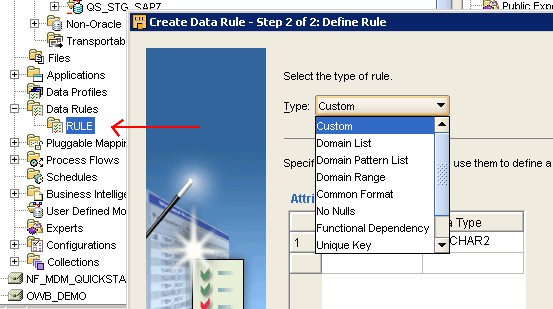

Owb Own Data Rules

Create Data Rules in Scripting

Discover More
Owb Functional Dependency
OWB - Functional Dependency Rule

A functional dependency occur when : Then we say that The attribute A is the dependent The attribute B is the determinant A is then a derived attribute of B. In the data profiling tools, the...
Owb Table Operator With Err Table
OWB - How to implement and manage data rule in a mapping for a table ?

A data rule in OWB is a property of a table and you can manage its behaviour in the mapping. To implement data rule, you must : in the objects : define a then apply (of add) them to the table...

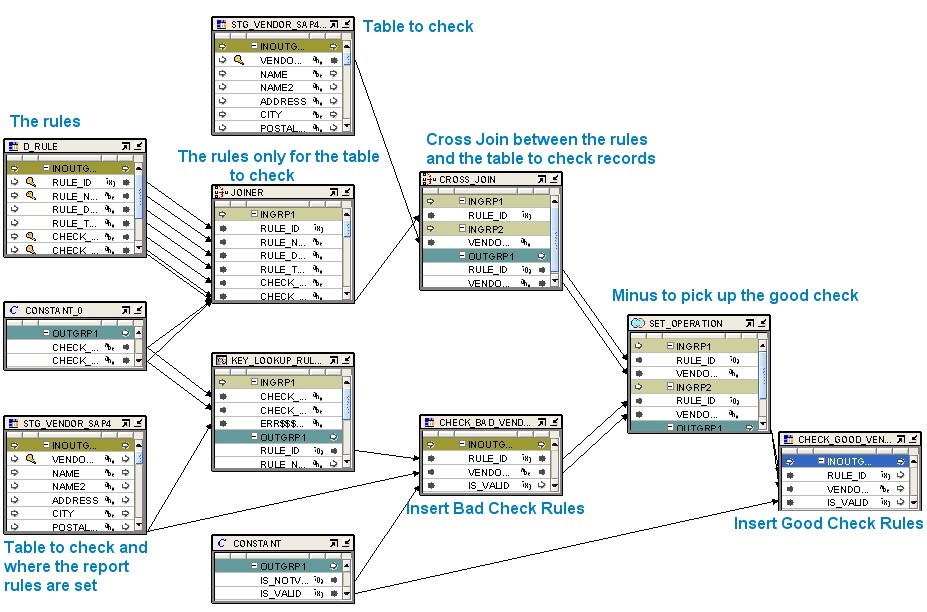

Owb Load Fact Mdm
OWB - How to load a fact table for a data quality cube ?

In one mapping, you can check all the data rules against a table and you can load the results in one fact table. On the check table STG_VENDOR_SAP4 (in the bottom left side), I have set the data rules...

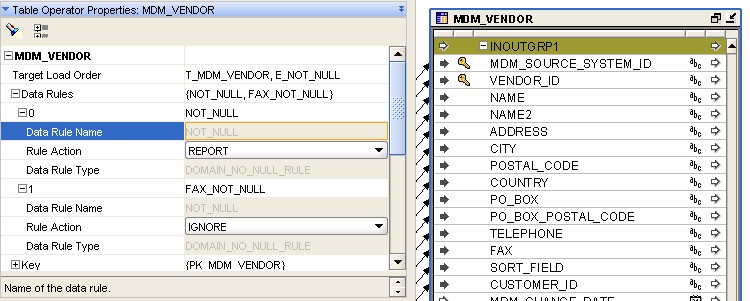

Owb Table Operator Data Rule Properties
