Architecture - Von Neumann

Card Puncher Data Processing


The Von Neumann organization is the most and well known organization (a sort of reference).

It implements a instruction cycle (fetch, decode, execute, store) with the following components:

  • the CPU to fetch instructions from main memory and execute
  • the memory to store program code and data
  • One or more bus. Today, a computer has several buses, each specialized in a type of traffic:
  • I/O Devices:
    • input device to give input to the computer: keyboard, mouse, sensor, etc
    • output device to take information from the CPU: monitor, LED , …

The data does not move. Only the instruction pointers

System Bus

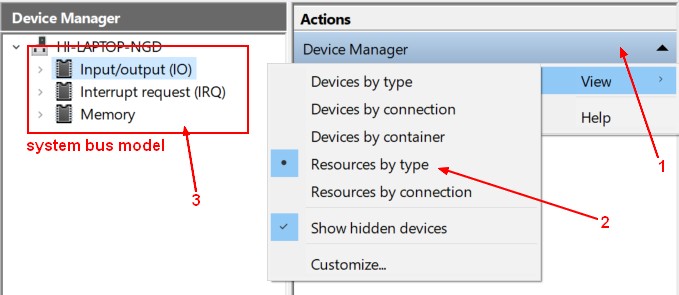

You can see it in the Device resources of the Windows device manager:

Device Manager System Bus Model


Little Man computer

The Little Man computer is a simple von Neumann architecture computer
