Network - IPv4

Map Of Internet 1973

About

IPv4

Example: 172.217.20.110

Syntax

Network - IP Address (Unique network IDentifier)

Host Identifier

The host identifier of an IPv4 address is represented:

  • in the form nnn.nnn.nnn.nnn,
  • where nnn is a number from 0 to 255 (ie 8bit)

Example:

  • 192.168.1.10
  • 85.151.134.69)

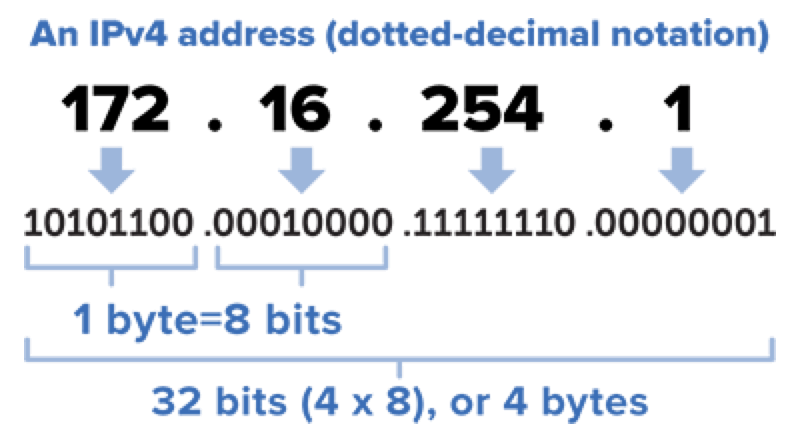

An IPv4 address has a size of 32 bits (4×8 bit), which limits the total address space to 4 billion (<math>4294967296 = 2^{32}</math> ) addresses

Ipv4

Wildcard

The wildcard IP address 0.0.0.0 match any possible machine.

IPv4 vs IPv6

The main difference between IPv4 and IPv6 is the number of possible addresses. IPv6 was introduced in 1995 to ensure that the world would not run out anytime soon of IP number.

IP Version Bit Address Space Possible addresses
IPv4 32 4 billion
IPv6 128 <math>3.4 \times 10^{38}</math>

Packet

See packet

Documentation / Reference





Discover More
Map Of Internet 1973
DNS - A record

DNS An A is a type of DNS record that maps a domain name to a IP address Version 4. AAAAdomain name where: api is a relative name IN is the INTERNET class A is the A record. 164.132.99.202...
Spf Dns Zone
Email - Sender Policy Framework (SPF)

SPF is a dns record that defines which server(s) may send an email. It describe the set of hosts which are designated outbound mailers for the domain. SPF is part of the mail authentication scheme with...
Firewalld - How to filter your traffic based on an IP, port or Region?

This page shows you how to filter your traffic based on a IP with firewalld rich rules. where: --permanent means that the rule will be used even after reboot. --add-rich-rule specifies the rich...
Mask Format
Network - (Network|Subnet) Mask

subnet mask is the second part of an Ip address. It's also called the mask of a subnet because all hosts on a subnet have the same network mask. The maximum size of the network is given by the number...
Map Of Internet 1973
Network - Address (Addressing)

IPv4 is the most common network addressing architecture used, though the use of IPv6 has been growing since 2006. A host is addressed by a node id A process is addressed by a node id and a port ...
Dns Architecture
Network - Domain Name System ( DNS )

The Domain Name System (DNS) is a database of name. It's naming system (service). It hold naming information for some kind of object (not only but mainly host) DNS can be seen as the phone book of the...
Map Of Internet 1973
Network - Host

A network host is a computer or other device connected to a computer network. A host can have several IP addresses and IP names, but it can only have one host name The host file is a local DNS...
Public Vs Private Ip Address
Network - IP Address (Unique network IDentifier)

A Network address in the Internet protocol, assigned to a network adapter. An IP address functions as a unique ID for identifying the sender and the receiver in a network with multiple hosts. An IP...
Map Of Internet 1973
Network - Ip v6

This page talks the IP address with the IPv6 format. Below is an example of an Ipv6 address: The main difference between IPv4 and IPv6 is the number of possible addresses. IPv6 was introduced in...
Windows Qos
Network - Quality of Service (QoS)

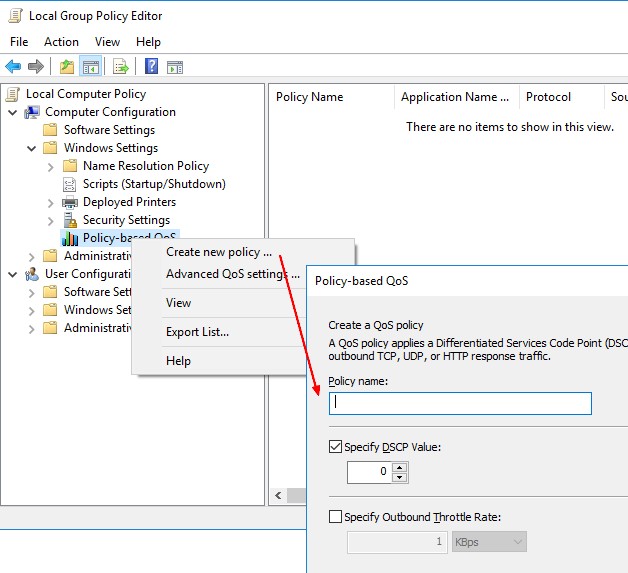

Management of network bandwidth via QoS on Windows Two key QoS controls that are used to manage network traffic: DSCP value - Packet Priority (By default, Windows traffic has a DSCP value of 0.)...
