The fan trap in a BOBJ context.

A fan trap is a join path problem returning too many rows.

Solved by

The original query which returned the Cartesian product for Wendy Craig, must return the following table when run with the above solution:

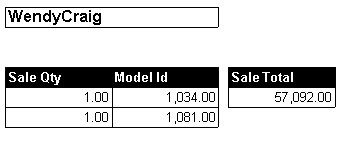

Bobj Fan Trap Good Result

Using an alias and context

The fan trap using dimension objects in the query is solved by using an BOBJ - Alias and BOBJ - Context.

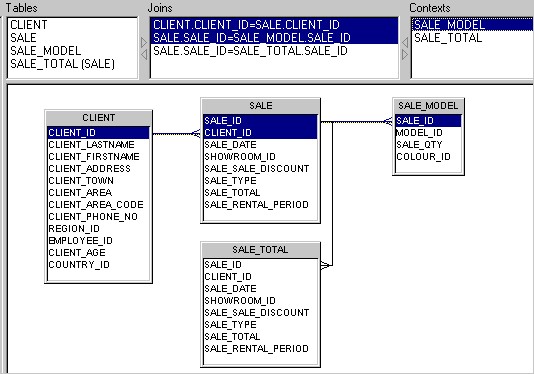

Bobj Fan Trap First Context

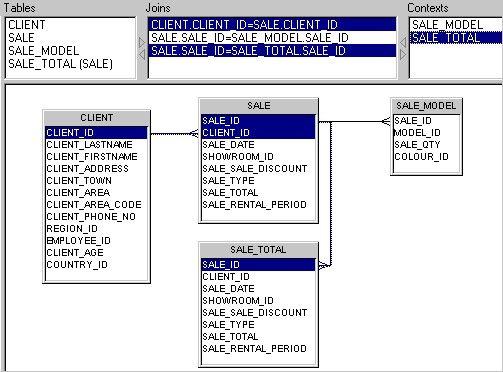

Bobj Fan Trap Second Context

And multiple SQL Statements for Each Context checked (File > Parameters > SQl Tab)

Bobj Univers Parameters Multiple Path

Using Multiple SQL Statements for each measure

If you have only measure objects defined for both tables at the many end of the serial one-to-many joins, then you can use the Universe Parameters option Multiple SQL Statements for Each Measure.

Multiple SQL Statements for Each Measure checked (File > Parameters > SQl Tab)

Bobj Univers Parameters Multiple Path

This forces the generation of separate SQL queries for each measure that appears in the Query pane.

You cannot use this method to generate multiple queries for dimensions. If an end user can include dimensions from any of the tables that reference the measure objects in the query, then you must use an alias and context to resolve the fan trap.

Detected by

  • Visual analysis of table schema.

You cannot automatically detect fan traps. You need to visually examine the direction of the cardinalities displayed in the table schema.
