Redux

1 - About

Redux is a state manager.

3 - Concept

The state inside a store is updated via a dispatch function that takes an action as argument and pass it to a reducer function. The reducer will calculate a new state passing it back to the store that will then:

  • notify the subscribers
  • and log the state change in a history table.

You can subscribe to a store in order to update the UI in response to state changes. For React, you'd use a view binding library (e.g. React Redux) that will take this work from you.

4 - Installation

4.1 - npm


npm install --save redux


npm install --save-dev redux-devtools

4.2 - module

The module is available in the dist map : https://unpkg.com/[email protected]/dist/redux.min.js

Redux is then available as the REDUX globale variable

5 - Concept

5.1 - State

Single source of truth: The state of your whole application is stored in an object tree within a single store.

Debug:

  • An handy way to follow the state is print it after each modification:

store.subscribe(() =>
  console.log(store.getState())
)

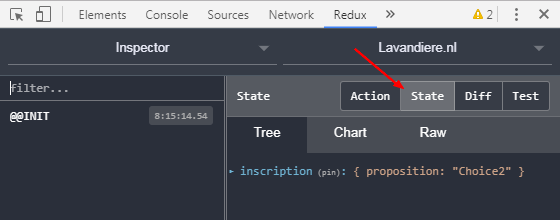

  • or the Chrome Redux Dev tool

5.2 - Action

An action is an plain JavaScript object describing what happened with a mandatory type property. It will then be passed to the reducer function.

Example:


{
    type: 'ADD_TODO',
    text: 'Go to swimming pool'
}

5.3 - Reducer

To specify how the actions transform the state tree, you write function called reducers.

A reducer takes an action as input and transforms the state into the next state.

The reducer function signature is


recuder(state, action) => nextState

where:

  • the inputs are the actual state and the action dispatched.
  • returns the next state.

Example:


function counter(state = 0, action) {
  switch (action.type) {
  case 'INCREMENT':
    return state + 1
  case 'DECREMENT':
    return state - 1
  default:
    return state
  }
}

A reducer creates its own context (scope). Therefore if you return an object, you can get it as: state.myReducer.myProperty.
You can have multiple reducer and then multiple context. You need to combine them in one with the CombineReducer function.

Example:


import { combineReducers } from 'redux'
import reducer1 from './reducer1'
import reducer2 from './reducer2'

// Just add a command list after inscription to add more reducer
const appReducer = combineReducers({
    reducer1,
    reducer2
})

export default appReducer

5.4 - Store

A store is a container that holds the application's global state.

Its API is.

5.4.1 - Create

createStore(reducer, [initialState], [enhancer]) where:

  • reducer - A reducing function.
  • initialState - The initial state of the store.
  • enhancer - Can be used to enhance the Redux store and add third-party libraries

let store = createStore(counter)

5.4.2 - Subscribe

You can use subscribe() to update the UI in response to state changes. Normally you'd use a view binding library (e.g. React Redux) rather than subscribe() directly. However it can also be handy to persist the current state in the localStorage.


store.subscribe(() =>
  console.log(store.getState())
)

5.4.3 - Dispatch

The only way to mutate the internal state is to dispatch an action. The actions can be serialized, logged or stored and later replayed.


let action  = { type: 'INCREMENT' }
store.dispatch(action)

5.4.4 - GetState


store.subscribe(() =>
  console.log(store.getState())
)

You can also see the state with the Browser extension

6 - Example

  • The action will have this properties

let action = {
   type: "string" // INCREMENT or DECREMENT
}

  • The reducer. It manipulate the state which is a single variable

function counter(state = 0, action) {
  switch (action.type) {
  case 'INCREMENT':
    return state + 1
  case 'DECREMENT':
    return state - 1
  default:
    return state
  }
};

  • Creating a store with this reducer:

// If used in npm
// import {createStore} from 'redux'
let store = Redux.createStore(counter);

  • Subscribe to the store to see the state

store.subscribe(() =>
  console.log(store.getState())
)

  • Perform an action (dispatch)

store.dispatch({ type: 'INCREMENT' })
// 1
store.dispatch({ type: 'INCREMENT' })
// 2
store.dispatch({ type: 'DECREMENT' })
// 1
