Java - Debugger (jdb) (local|remote)

Java Conceptuel Diagram


Debugger in Java

When you enable debugging, you enable both local and remote debugging.

The Java Platform Debugger Architecture (JPDA) is the architecture designed for use by debuggers and debugger-like tools. It consists of two programming interfaces and a wire protocol.


The jdb utility is included in the JDK release as the example command-line debugger. The jdb command demonstrates the Java Platform Debugger Architecture (JDBA)

Jdb doc

Connect the debugger to a JVM

There is a lot of way to connect the debugger to the JVM.


  • loading in-process debugging libraries and specifiing the kind of connection to be made.
java -agentlib:jdwp=transport=dt_socket,server=y,suspend=n MyClass


  • suspend=y/n , controls whether the JVM should wait for the debugger to attach before starting up.


jdb -attach 8000



  • run > edit configurations > + > remote

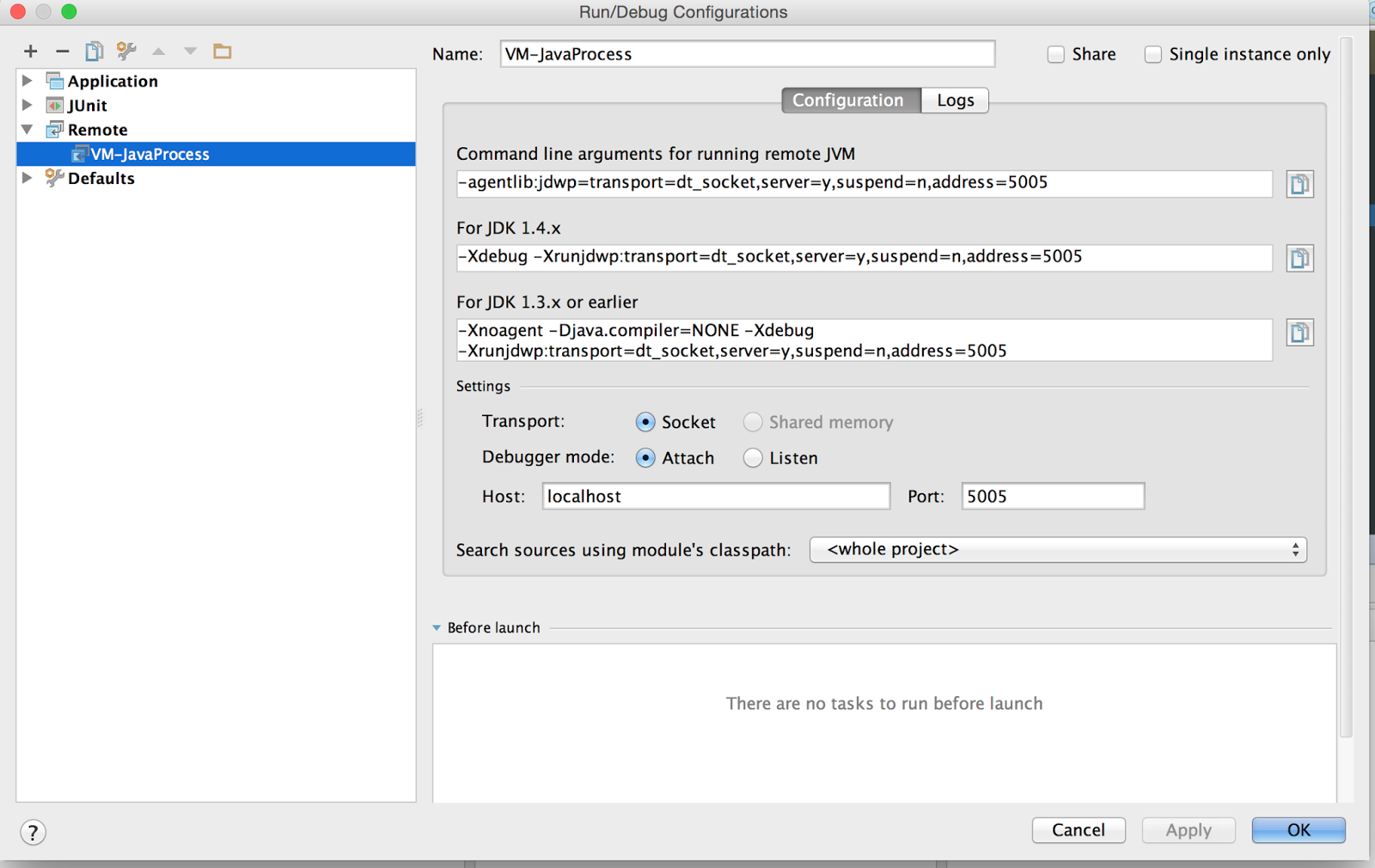

Intellij Run Debug Remote



  • Maven 2.0.8 or newer: run the “mvnDebug” command in place of “mvn”
  • Maven <2.0.8: uncomment the following mvn.bat line
@REM set MAVEN_OPTS=-Xdebug -Xnoagent -Djava.compiler=NONE -Xrunjdwp:transport=dt_socket,server=y,suspend=y,address=8000

See Maven: Enable remote debugging command line option

X options are options of the JRockit JVM.


Java Debug Wire Protocol (JDWP) defines the format of information and requests transferred between the debuggee process and the debugger front-end.

Documentation / Reference

Discover More

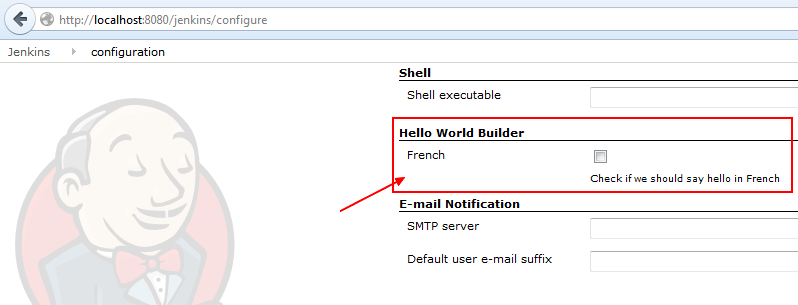

Jenkins Global Jelly
