Oracle Database - Dedicated Server Architecture

Card Puncher Data Processing


In a dedicated server architecture, each client process connects to a dedicated server process. The server process is not shared by any other client.

PMON registers information about dedicated server processes with the listener. This enables the listener to start a dedicated server process when a client request arrives and forward the request to it.

Dedicated server architectures do not support HTTP, FTP, or WebDAV clients. Only database clients are supported.

Basic difference between the shared and dedicated server

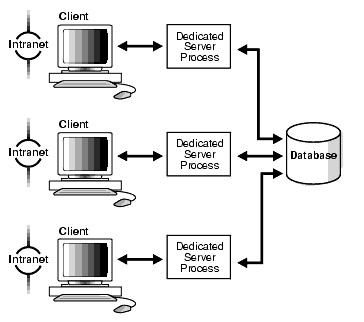

The following two figures show the basic difference between the shared server connection model and the traditional dedicated server connection model. In the shared server model, a dispatcher can support multiple client connections concurrently. In the dedicated server model, there is one server process for each client. Each time a connection request is received, a server process is started and dedicated to that connection until completed. This introduces a processing delay.

Oracle Database Dedicated Server Oracle Database Shared Server

Documentation / Reference

Discover More
Card Puncher Data Processing
Oracle Database - Connect Descriptor (TNS Connect String)

The Connect Descriptor (known also as TNS Connect String) is a type of connect identifier. It defines the parameters that need the Oracle Net Service to connect to a database service : the protocol...
Oracle Database Dedicated Server
Oracle Database - Dedicated Server Process

In a dedicated server configuration, the listener starts a separate dedicated server process for each incoming client connection request dedicated to servicing the client. After the session is complete,...

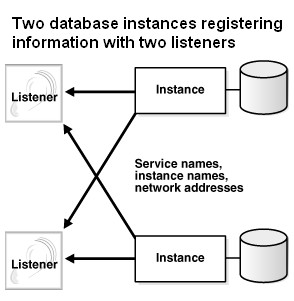

Oracle Database Service Registration
