Essbase - Architecture/Components

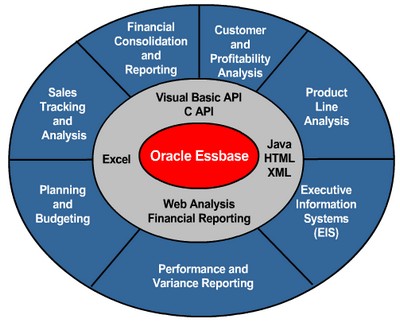

Essbase Overview

Product Components

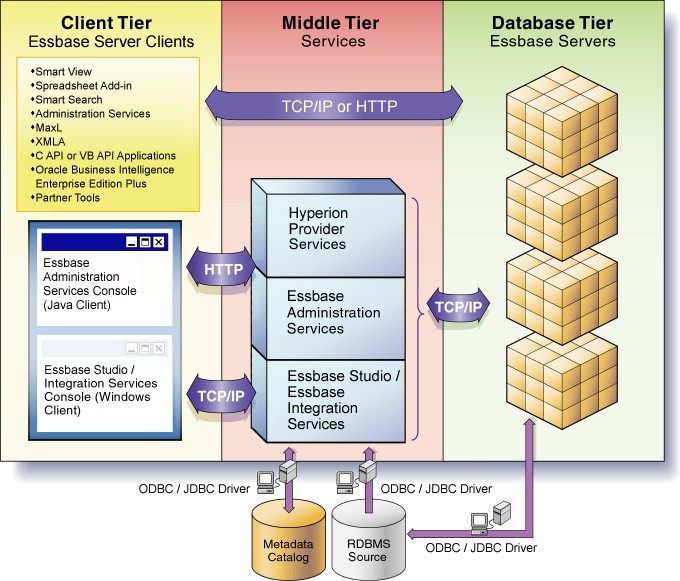

Figure below provides a high-level view of the information flow between the three tiers of the Essbase architecture :

Essbase Architecture Overview

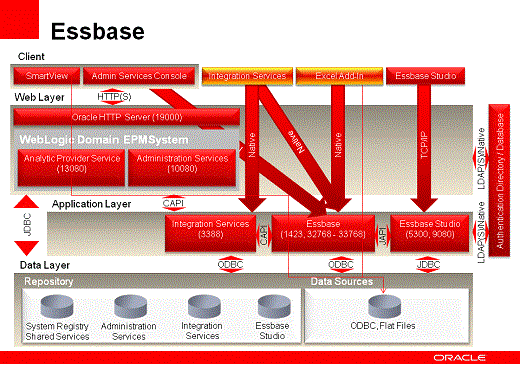

Epm Essbase 11.1.2.2 Architecture

The client tier

The client tier includes Essbase Server clients, such as :

The middle tier

The middle tier includes services, such as :

The database tier

The database tier is made up of Essbase - Servers.

Communication between the tiers

  • Communication between the client and middle tiers, and the middle and database tiers, is through HTTP.
  • Communication between the client and database tiers is through TCP/IP or HTTP.
  • Communication between data sources and the metadata catalog with the middle and database tiers is through ODBC and JDBC drivers.

Documentation / Reference





Discover More

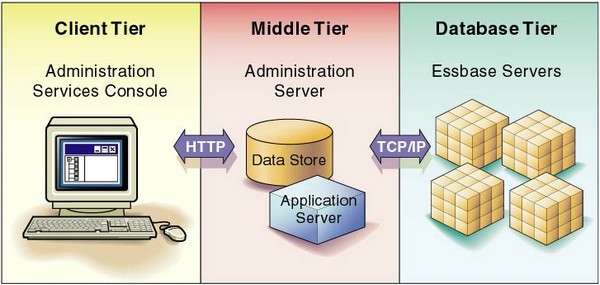

Administration Services Architecture
