OBIEE 11G - (Manage|Configure) Map Data

Obi Edition


Before a content designer can use a map in a OBIEE map view some configuration are needed:

  • import of the layers (or theme as a theme have only one layer


  • import of the maps
  • and configuration of the metadata.

And all this in the same place: Administration > Manage Map Data



Key Layer

The layers must be configured using the Map Builder tool of Oracle Spatial.

To be able to join the map and obiee, you have to define a key layer.

The key layer in OBIEE is the column info of the theme in Map builder.

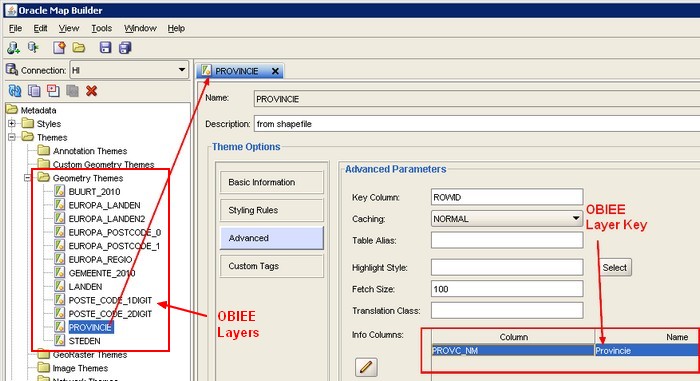

Obiee 11g Map Builder Layer Key

The OBIEE key layer (the name column of the info columns area) can contain spaces

Importing Layers

Before importing a layer, be sure to have added a key_layer, otherwise you may have cache problem

The first step is to select the layers for use on maps. You next select at least one map from a list. This map becomes the background on which the layers are applied. You can optionally specify images for use with map formats.

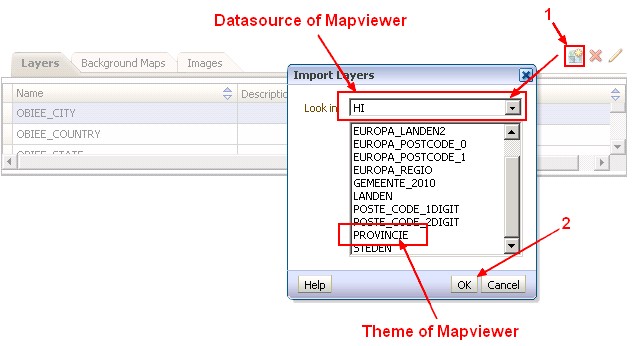

Obiee 11g Import Of Layers

The images listed correspond to the styles defined within MapBuilder (and then stored in USER_SDO_STYLES).

Column Association

After selecting layers and maps, you associate:

  • column of those layers
  • with columns from the subject area.

It gives the relationship between the geometry (polygon or line) and the attribute data of OBIEE.

If the association between a column and a layer is incorrect, then the layer cannot be displayed correctly on the map. The association ensures that shape definitions can be found in the database for the column values during map rendering.

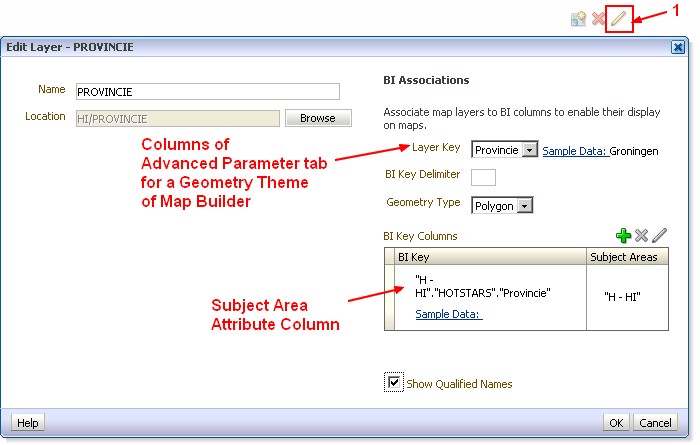

Obiee 11g Configuration Of Layers
