OBIEE 10G/11G - Mapviewer

Obi Edition


Oracle MapViewer, which is a J2EE service for rendering maps using spatial data managed by the database (through the option Oracle Spatial).

MapViewer provides services and tools that hide the complexity of spatial data queries and cartographic rendering, while providing customizable options for more advanced users. MapViewer is designed to integrate with Location-Based services and applications.

In 11g, Mapviewer is tightly integrated and configurable. With 10g, you have to use the Mapviewer Javascript API, the NSDP features (Non Spatial Data Provider) and the help of the go url to be able to integrate maps.

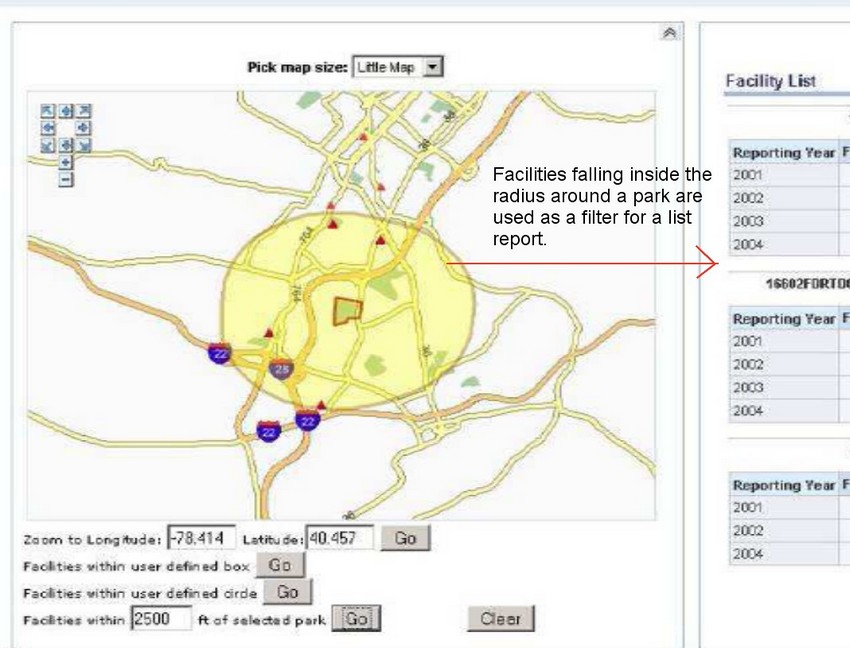

Obiee Map Integration


Oracle Maps as a Component of BI:

  • BI data on map
  • Drill to details from map
  • Navigate dashboards from map
  • Select features on map and drill to list report
  • Multiple measures on map
  • Invoke functions


How a casino could integrate Oracle Maps into OBIEE interactive dashboards to:

  • visualize the gaming performance of not just the entire casino, but specifically the overall performance at individual tables.
  • provide a high-level view of the casino floor
  • monitor the amount of money going into and out of slot machines
  • to analyse marketing performance by county and ZIP Code

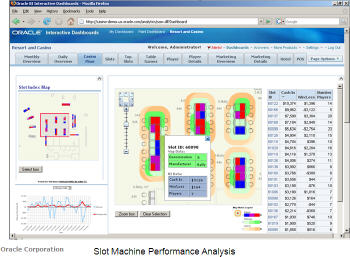

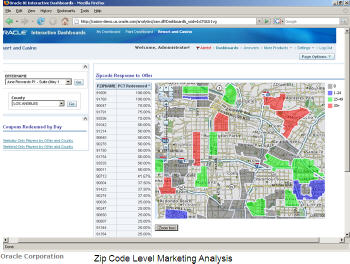

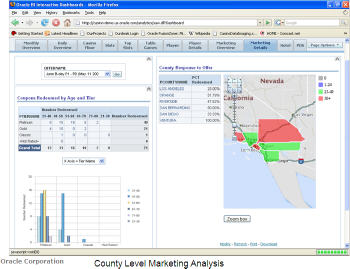

Obiee Map Obiee Spatial Obiee Spatial Casino

You see here two levels:

  • facility
  • geographic

OBIEE Version



With the advent of 11G, MapViewer is installed as part of Oracle BI Enterprise Edition and deployed in the same domain as Oracle BI EE on the Web application server.

Before content designers can create map views, they must configure them in the manage map Data Administration page where:

  • you can import the layers (theme)
  • define the map (zoom level)
  • and perform the mapping between Oracle BI EE data and spatial data

Documentation / Reference

Discover More
Obi Edition
OBIEE - Localization

localization refers to the process of adapting the Oracle Business Intelligence deployment to a particular language. Part of the process of customizing is localizing the interface, if...

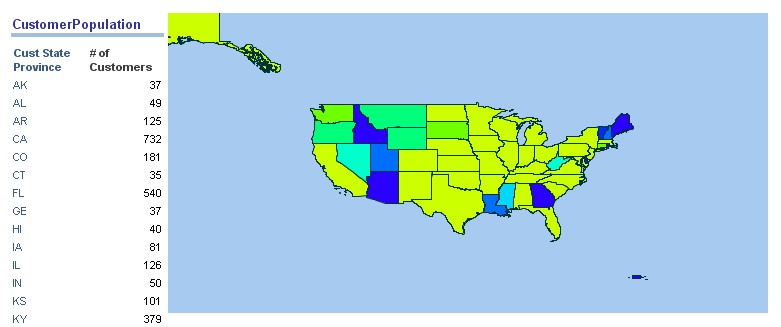

Obiee Customer Population Report
OBIEE 10G - Integration of a Static Map with Mapviewer

This article talk a static integration of a map created with Mapviewer for OBIEE 10G. 11G has already this integration done for you. In this article, the NSDP library (non spatial data provider) is used...
Obiee Mapviewer Annee1998
OBIEE 10G - Integration of a heat-map with Mapviewer

This article show you how Mapviewer can receive data from OBIEE. To transmit data, Mapviewer need an xml file. Obiee can create a xml file with the help of the Go Url. For this purpose, we need to give...
Obiee11g Map View Component
OBIEE 11G - Map View

Map view is a new view in 11g that permit to include a mapviewer map in an answer. When you edit a map view and work with layers, you create formats for those layers. For example: the floor maps of...

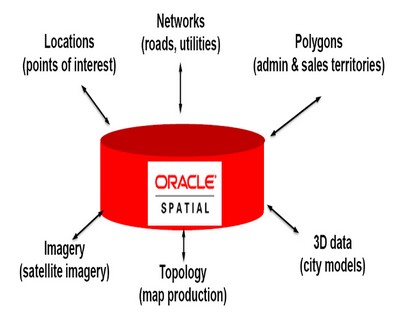

Spatial General Utilisation Map
